Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1990
>>
S10/T10 Blazer 4WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

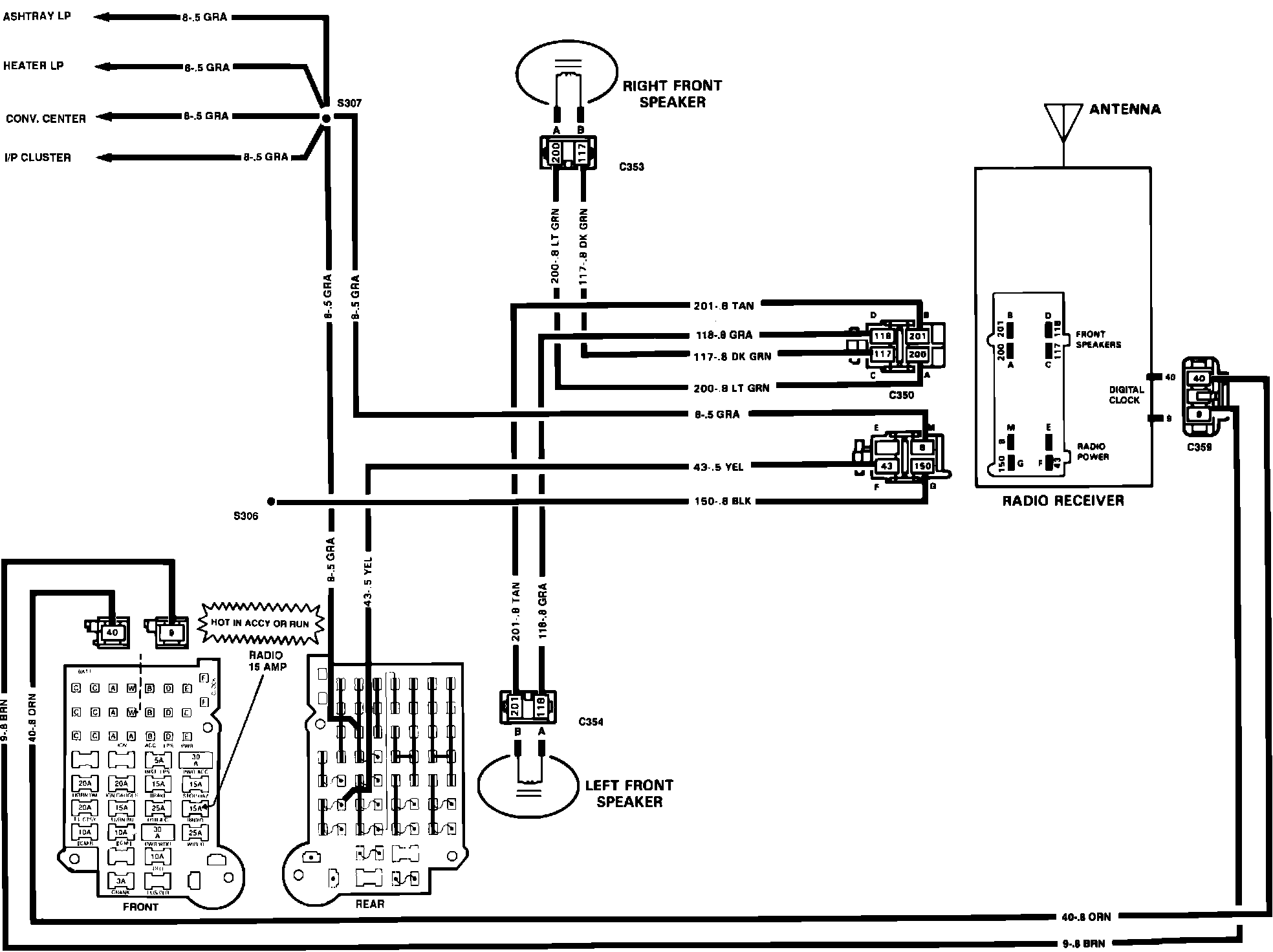

Radio, Stereo, and Compact Disc
>>
Standard
Standard
Radio: Monarual:
