Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1990
>>
S10/T10 Blazer 4WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trailer Adapter Kit
>>
Standard
Standard

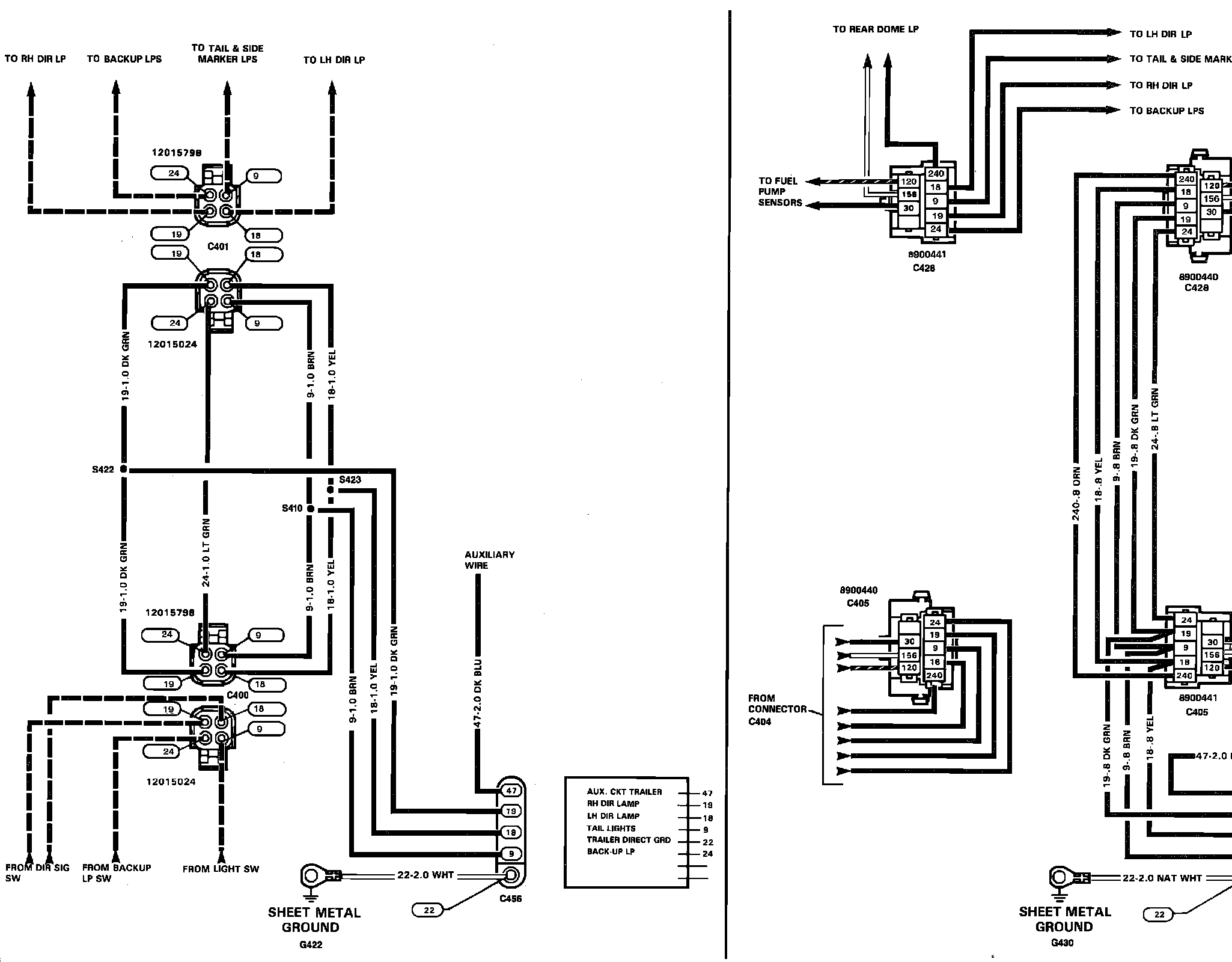

^��<Trailer Wiring. Less Heavy Duty Suspension:
