Engine: Specifications

Torque Specifications:

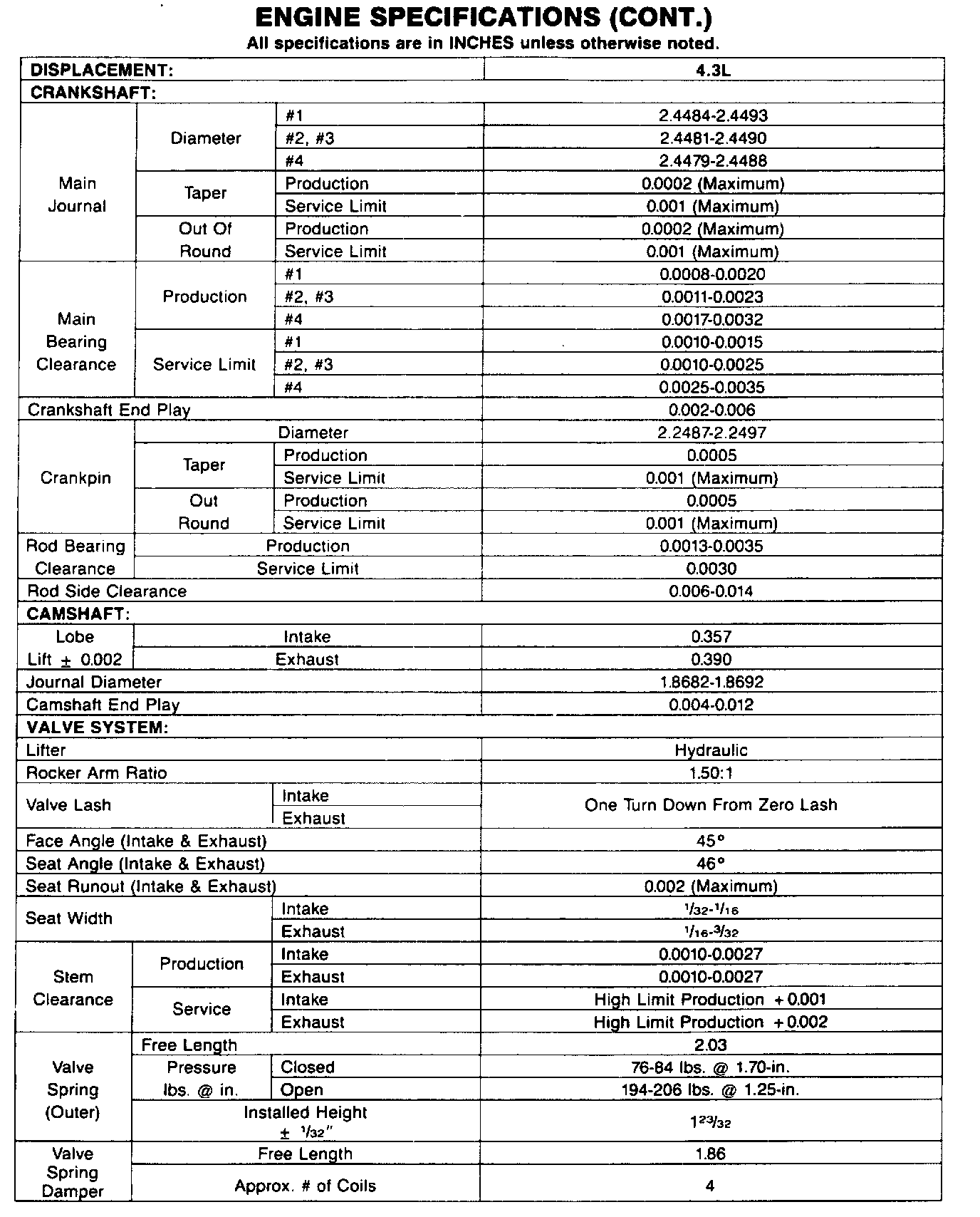

Engine Specifications:

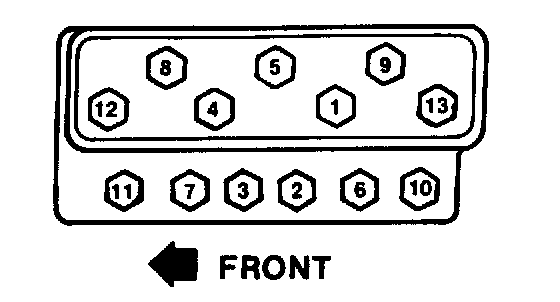

Intake Manifold Torque Specifications:

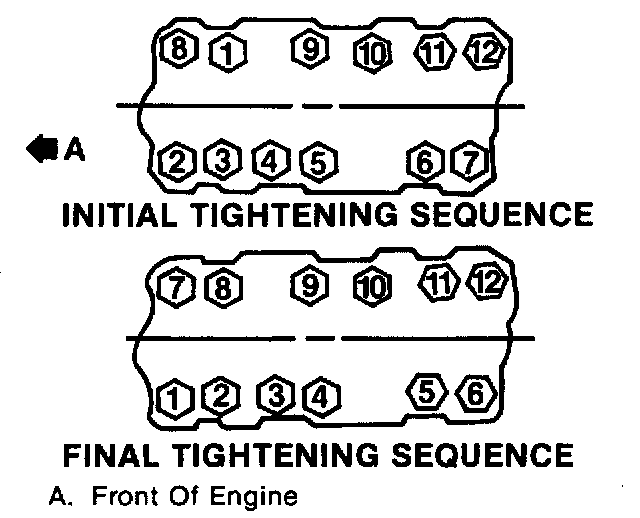

Cylinder Head Torque Sequence:
