Heater Core: Service and Repair

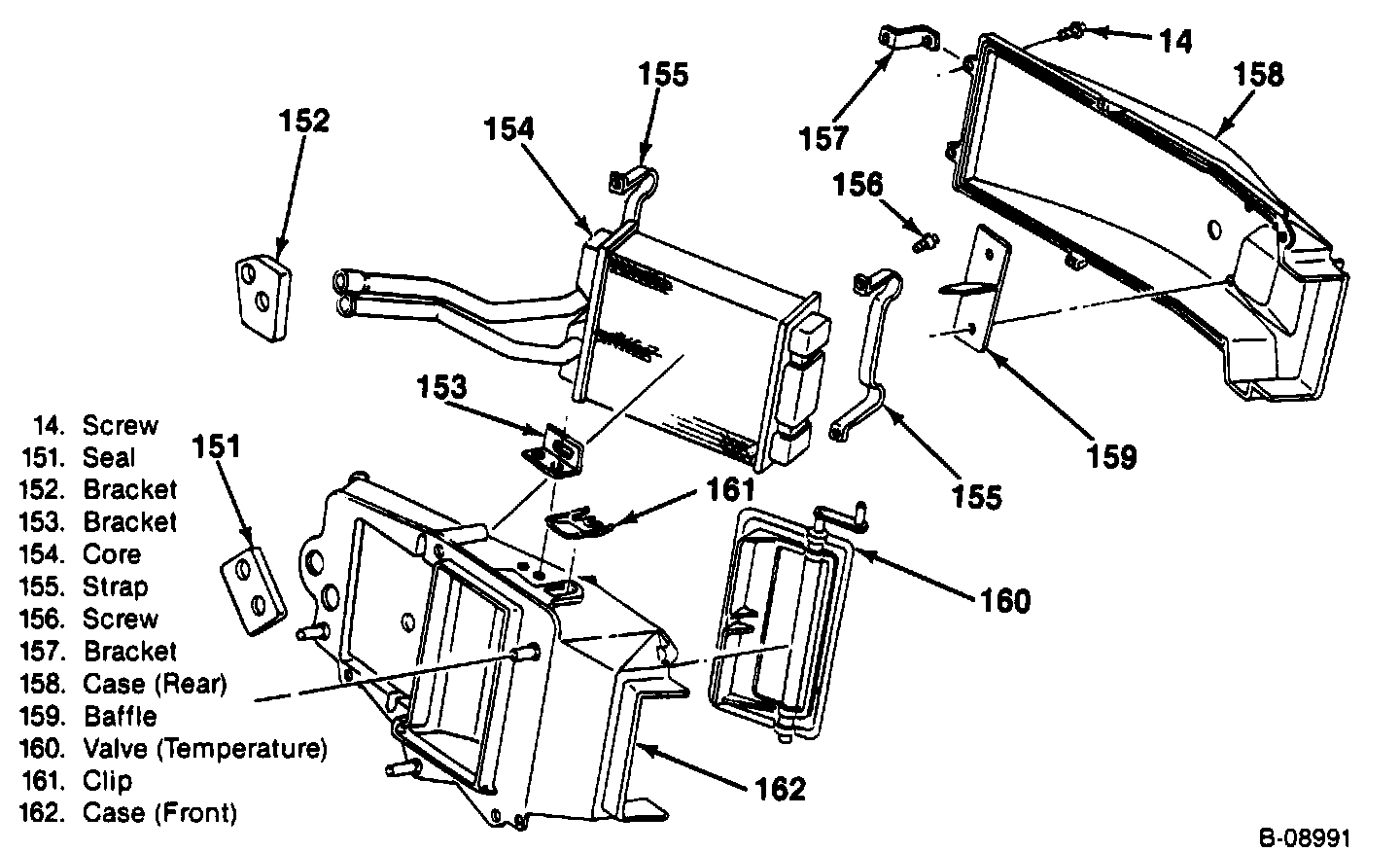

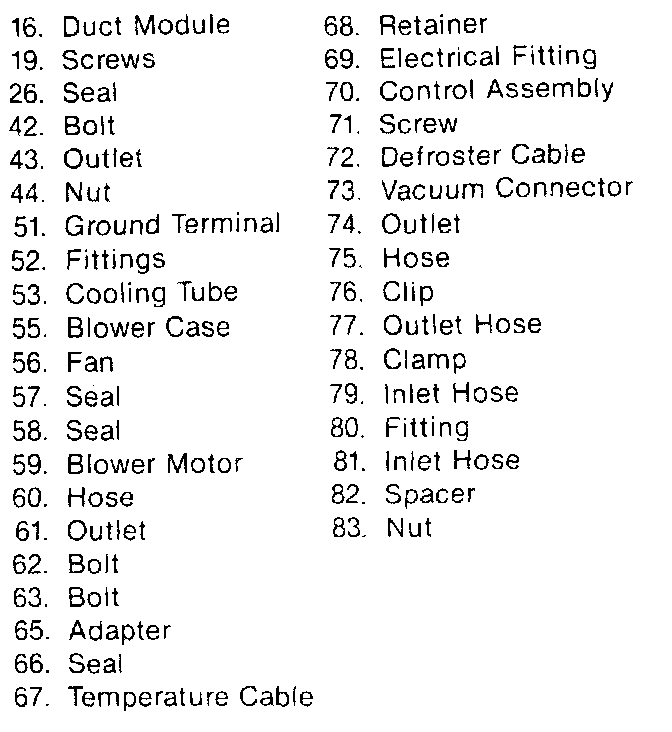

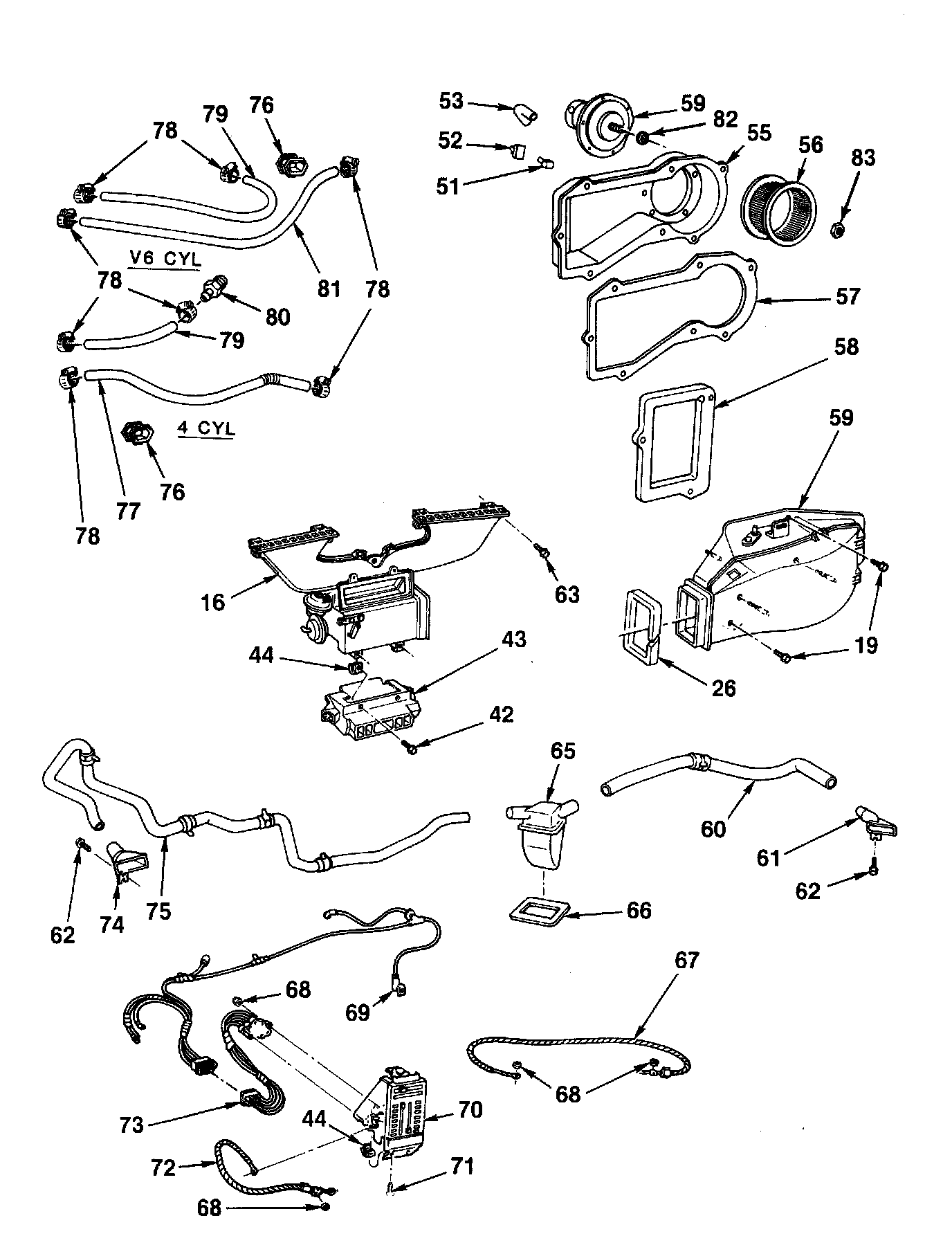

HEATER CORE REPLACEMENT












REMOVE OR DISCONNECT
1. Coolant from the radiator.
2. Inlet and Outlet Hoses.
- Plug or cap the hoses to prevent spillage.
3. Rear cover and screws.
4. Brackets.
5. Core.

INSTALL OR CONNECT
1. Core.
2. Brackets.
3. Rear cover and screws.

TIGHTEN
- Screws to 3 Nm (27 lb in).

4. Inlet and Outlet Hoses. Refer to "Heater Hose Replacement".
5. Coolant to the radiator.
