Engine Control Module

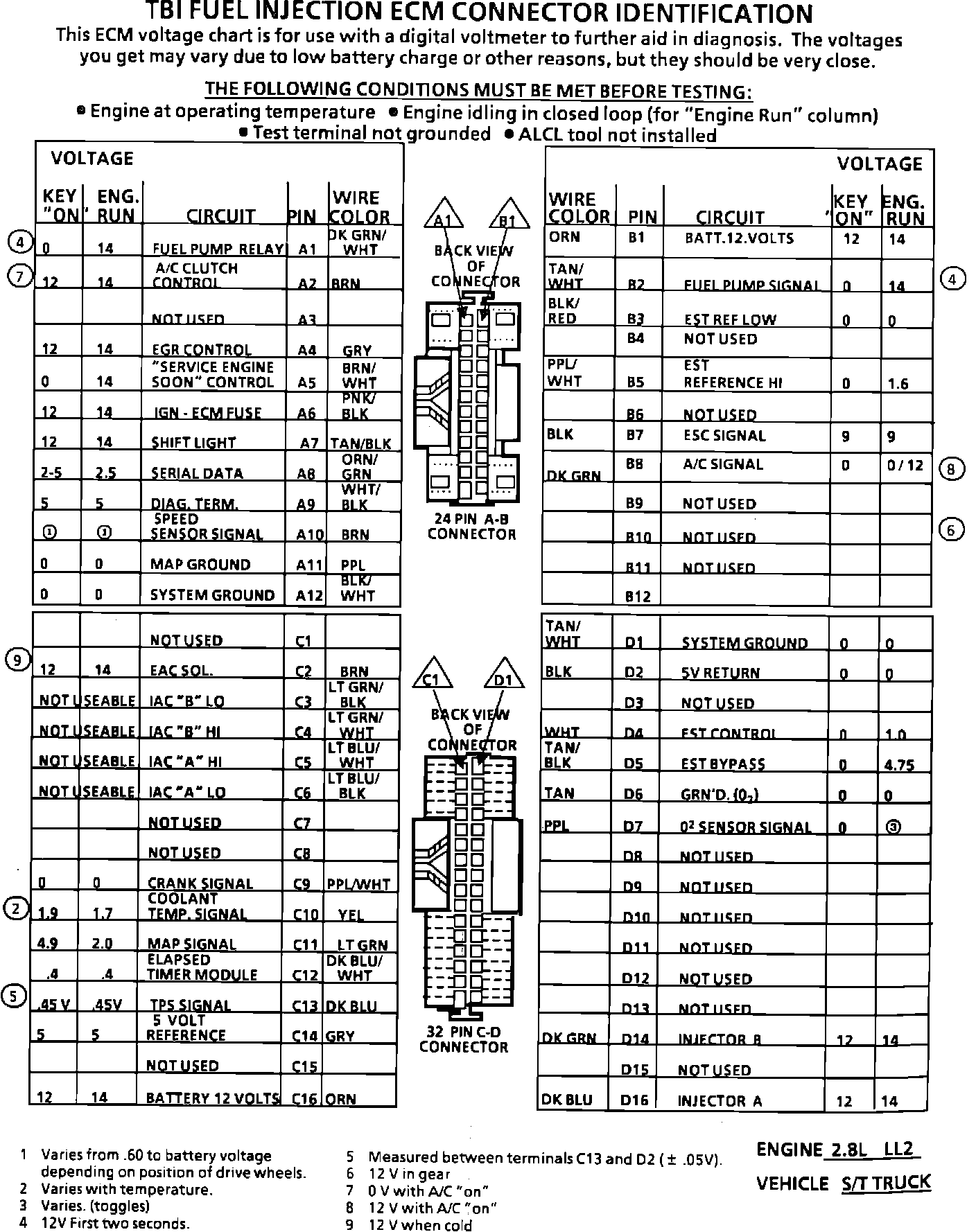

ECM Connector Terminal Identification & Voltage Specifications.:



ECM Connector Terminal End View:
