Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1990
>>
S10/T10 P/U 4WD V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Seat Belt Reminder Lamp

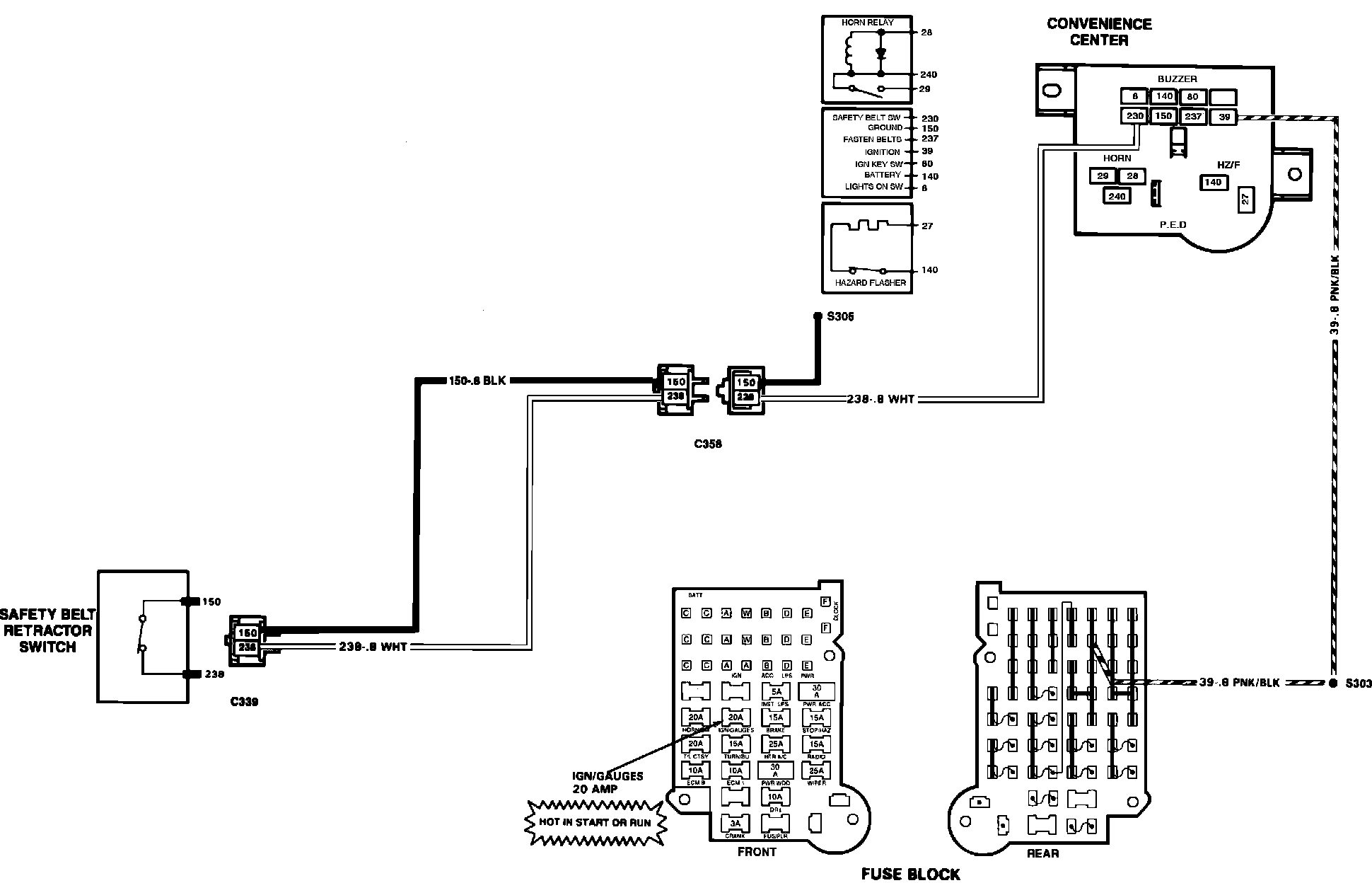

Seat Belt Reminder Lamp
Warning/Indicators: Safety Belt Buzzer:
