Chevy Truck
>>
1990
>>
S10/T10 P/U 4WD V6-173 2.8L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

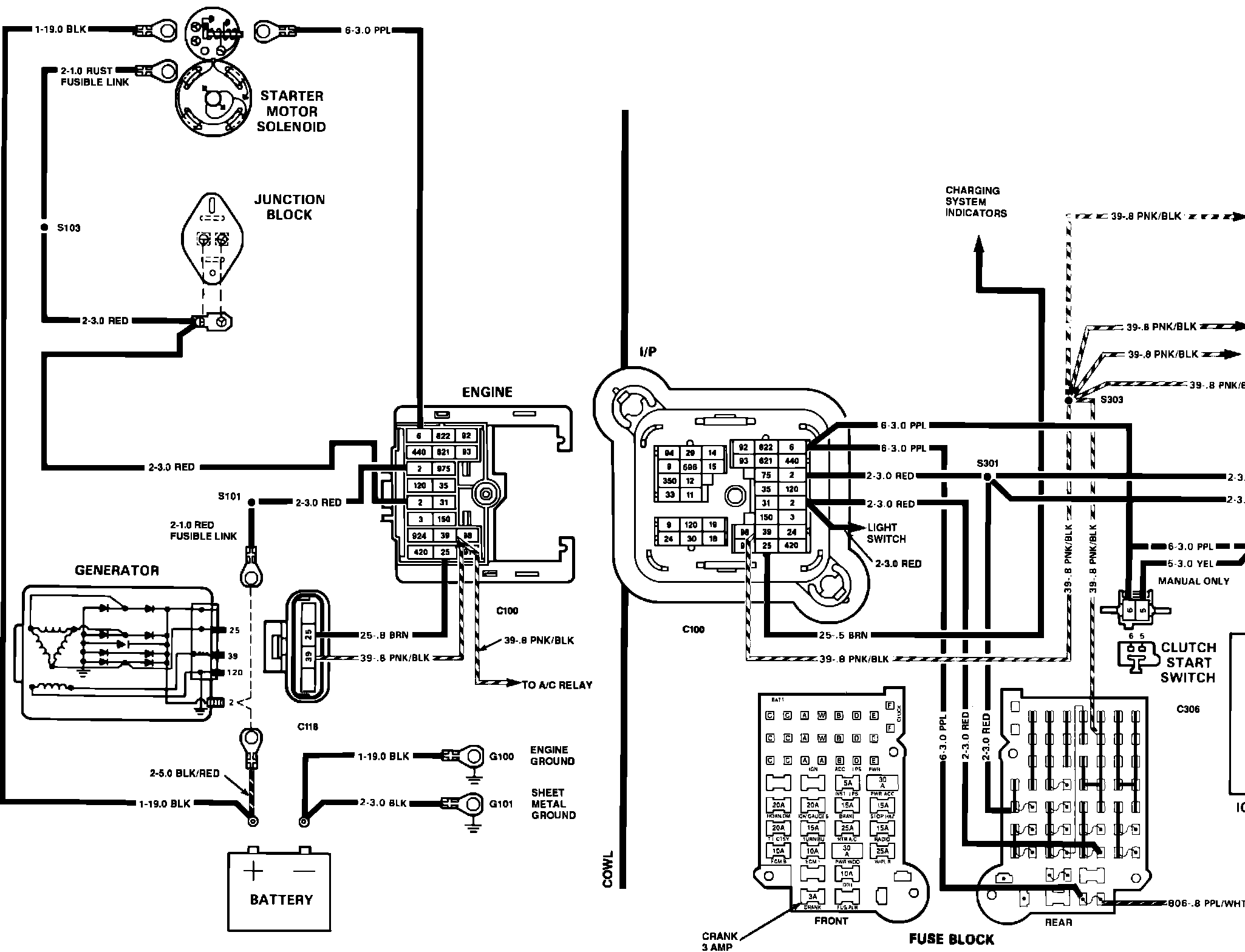

Iai3Charging and Starting System:
