Speedometer Head: Description and Operation

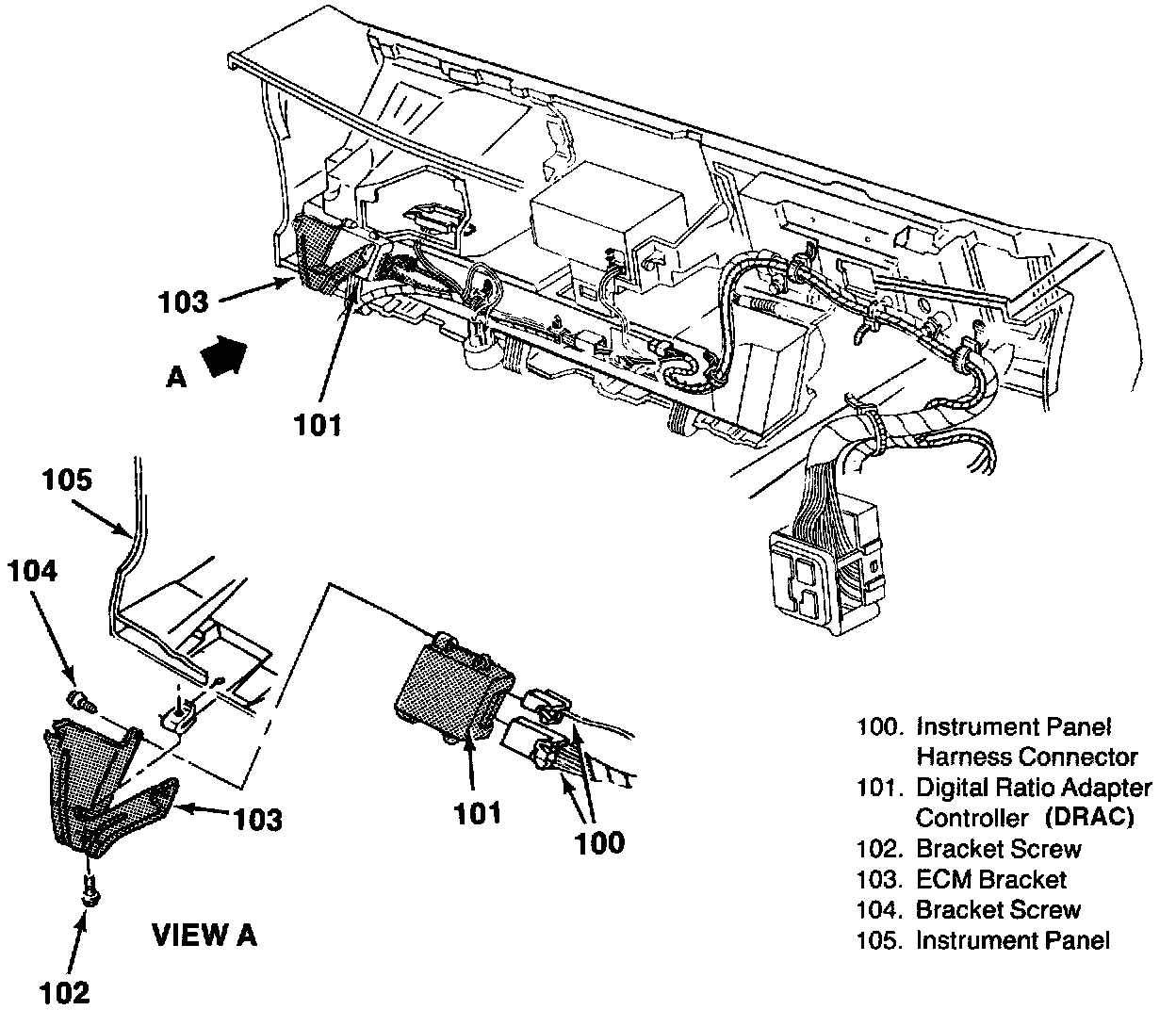

The electric speedometer drive replaces the mechanical drive for all S/T applications. Integrated circuits control the air core speedometer and stepper motor odometer. The speedometer and odometer receive a signal from the Digital Ratio Adapter Controller (DRAC) generated by the Vehicle Speed Sensor (VSS).
