Chart 4 - Off/On/Resume/Accel Switch Test
Chart 4 - Off/On/Resume/Accel Switch Test

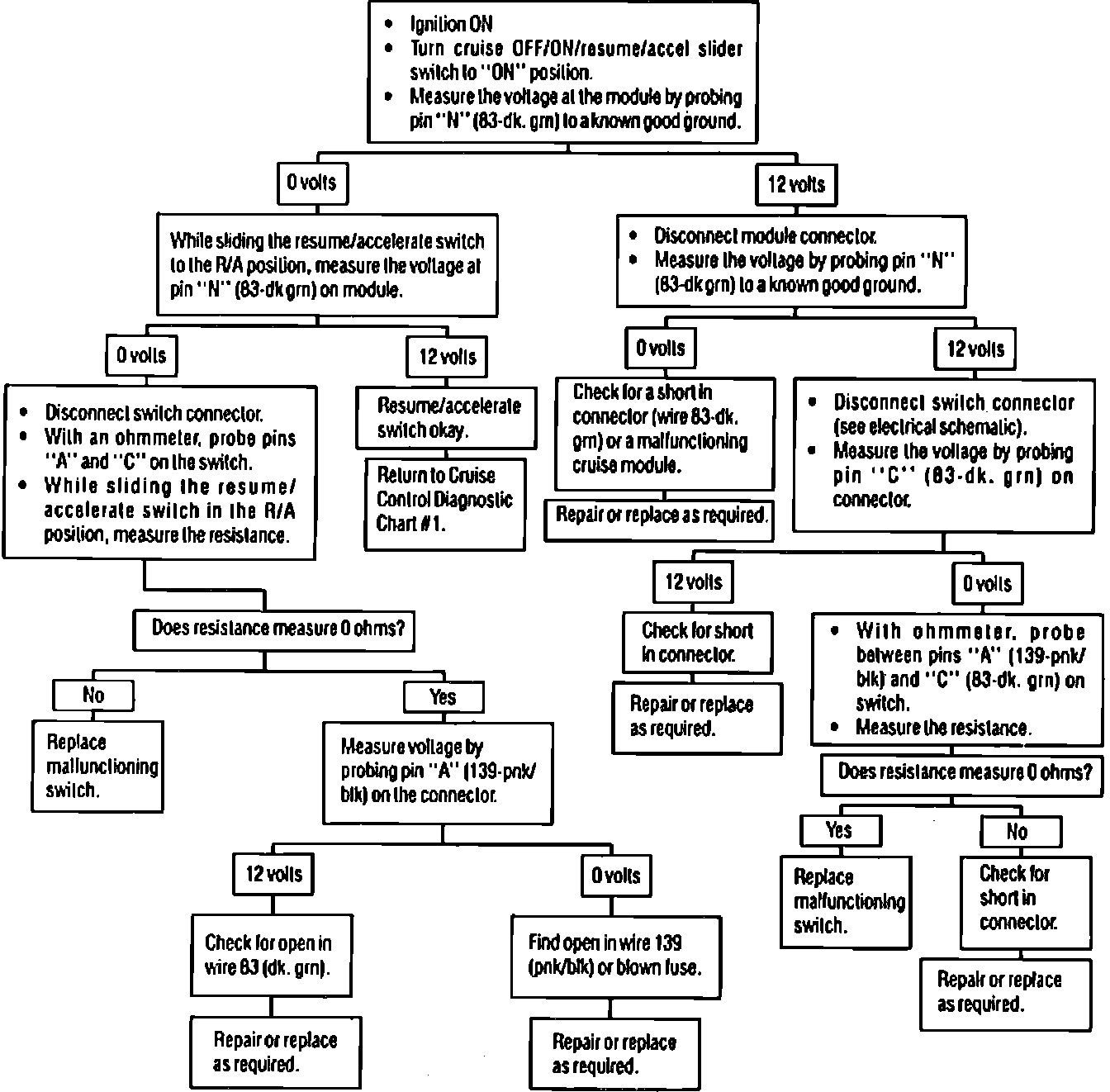

Chart 4, Cruise "Off/On/Resume/Accel" Switch Test:
