Chart 6 - Release Switch Test (W/Man. Trans)
Chart 6 - Release Switch Test (W/Man. Trans)

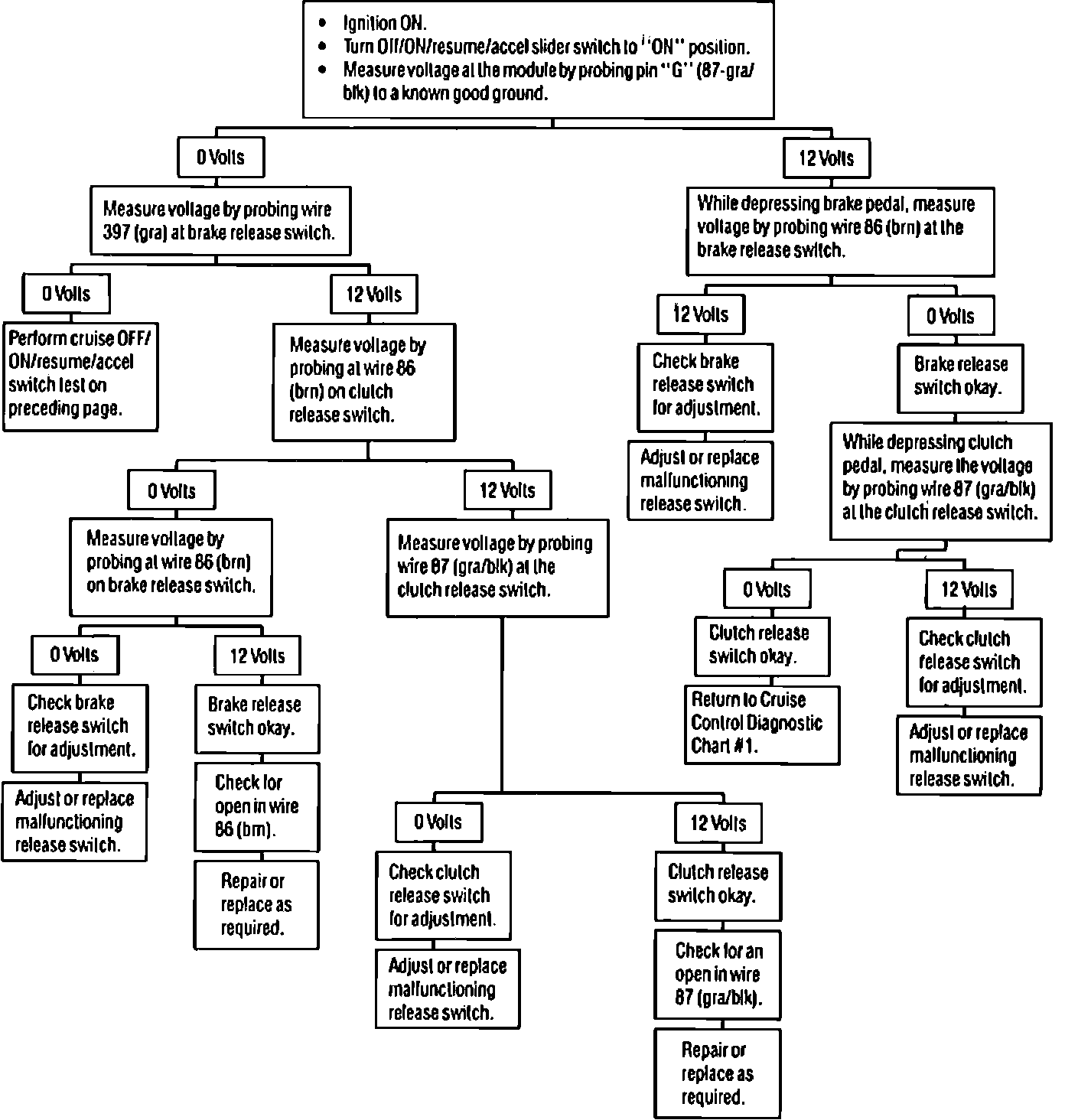

Fig. 19 Chart 6, Release Switch Test:
