Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 4WD V8-454 7.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Vanity Lamp

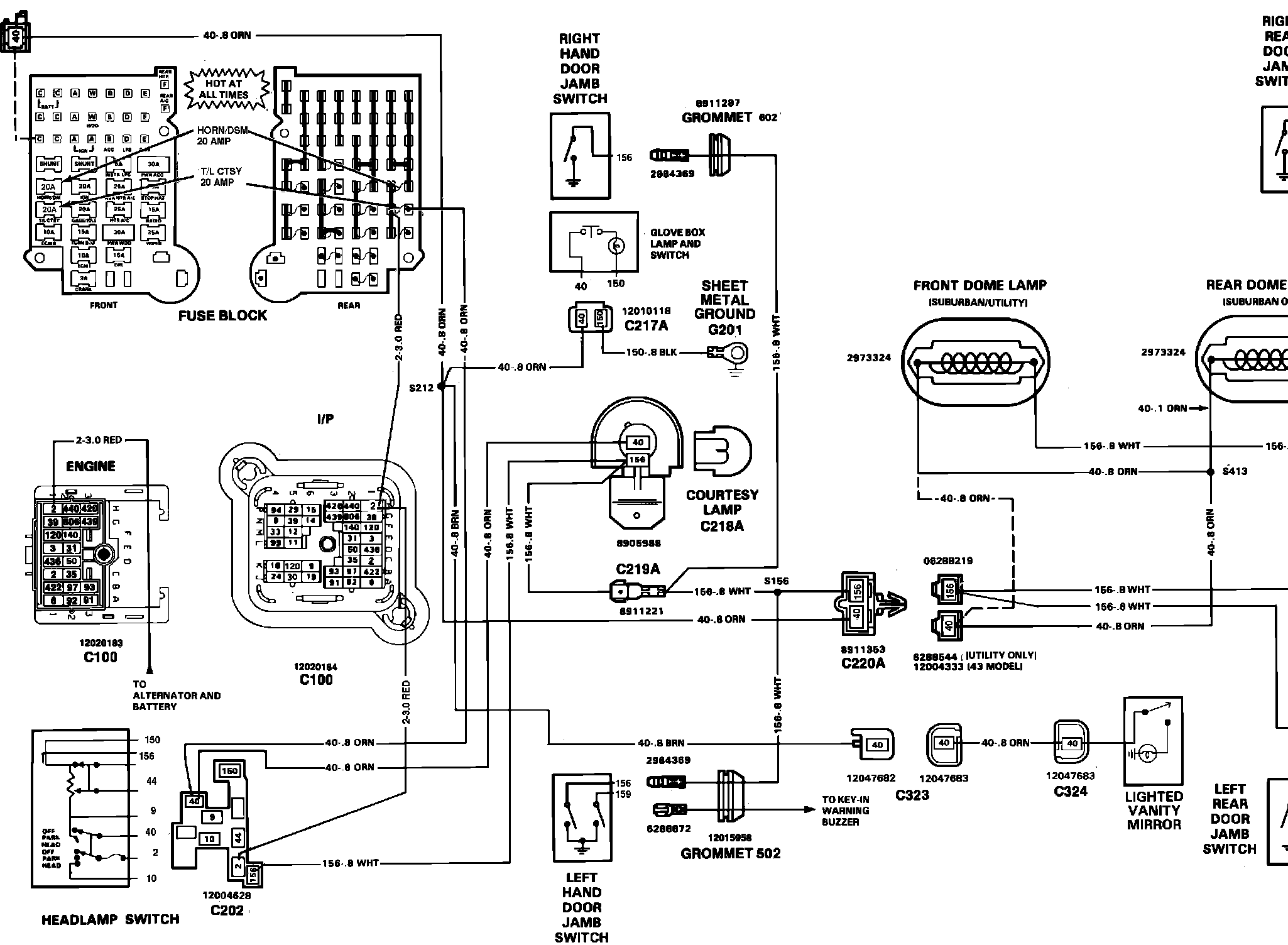

Vanity Lamp

�}CLamps: Dome, Glove Box and Vanity Mirror:
