Home >> Chevy Truck >> 1990 >> Suburban 3/4 Ton 2WD V8-379 6.2L DSL >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Glow Plugs/Fuel Control >> Standard

Standard

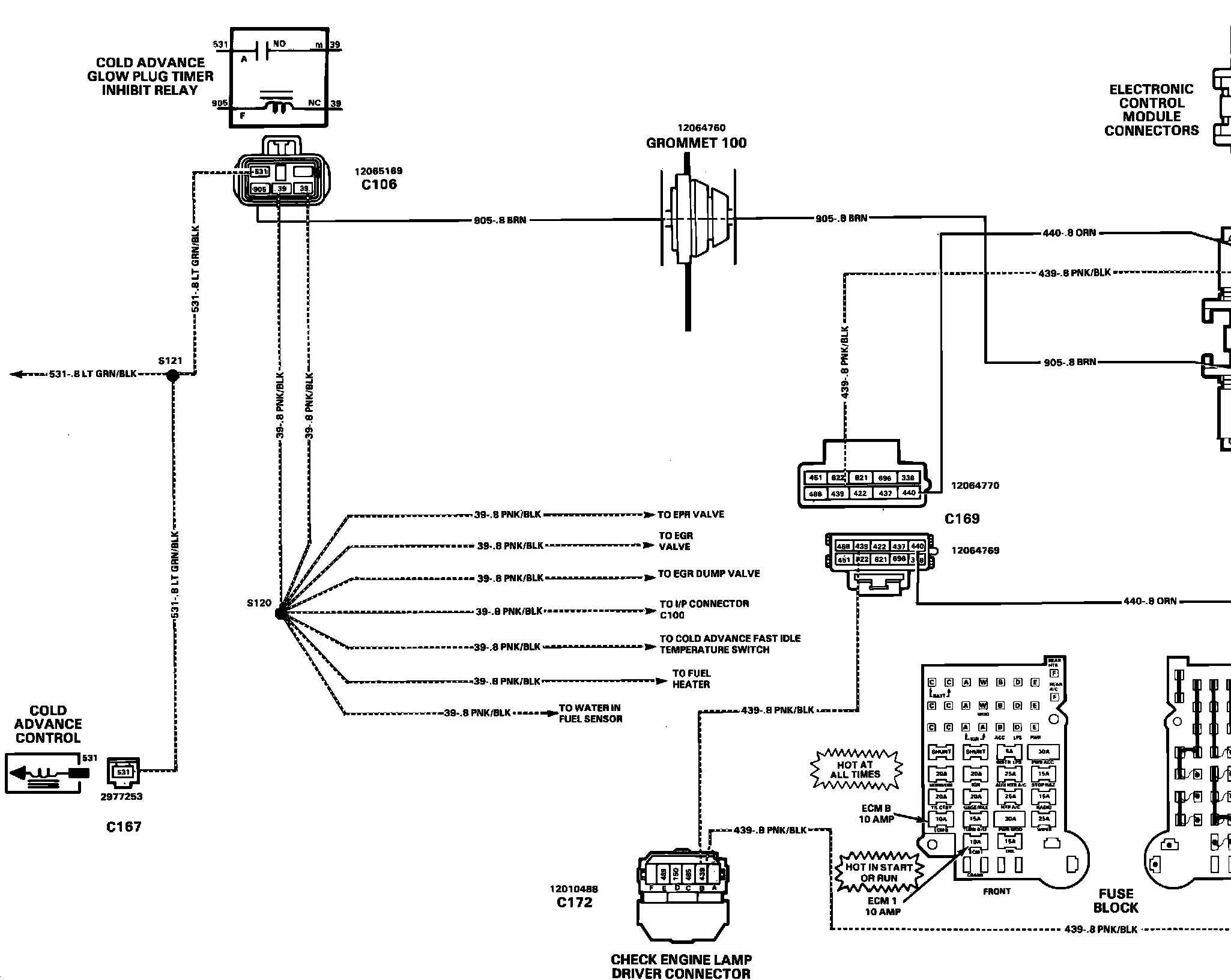

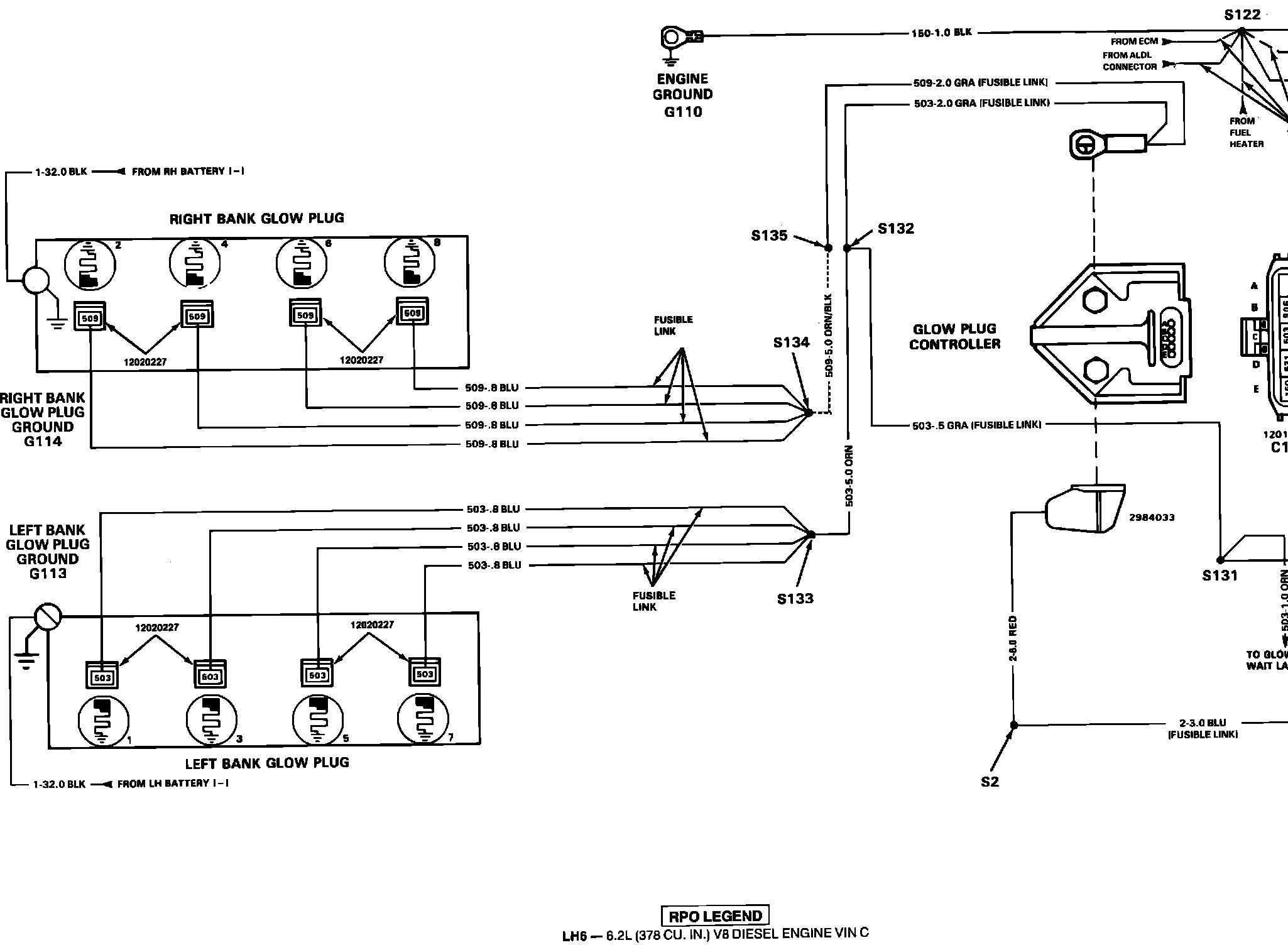

YJ%Glow Plugs (Standard Diesel):



#�%Glow Plugs (Standard Diesel):
