Home >> Chevy Truck >> 1990 >> Suburban 3/4 Ton 2WD V8-454 7.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Tailgate

Tailgate

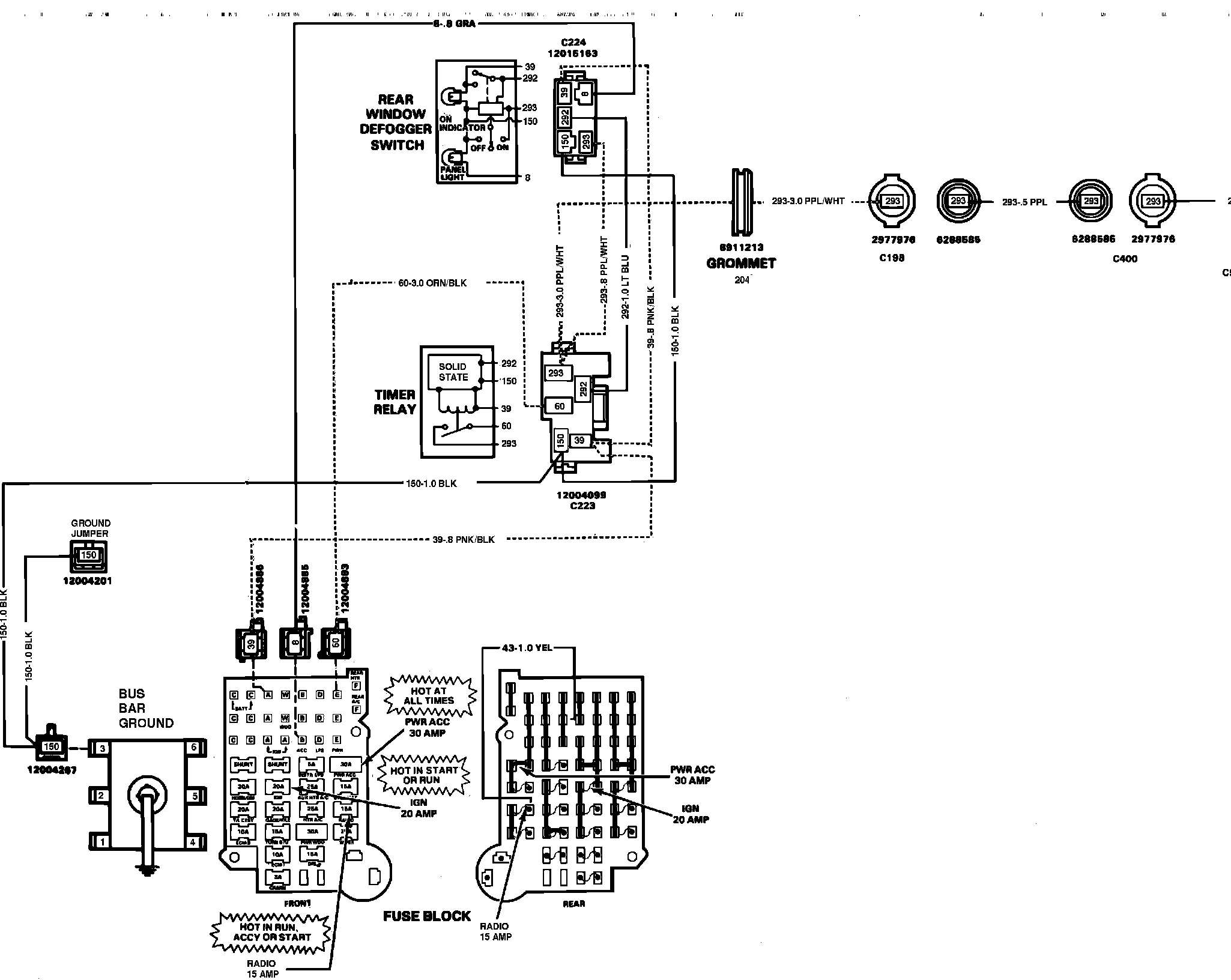

�S�FRear Window Defogger (Tail Gate):
