Chevy Truck
>>
1990
>>
Suburban 3/4 Ton 2WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Tail Lamp
>>
Utility & Suburban
Utility & Suburban

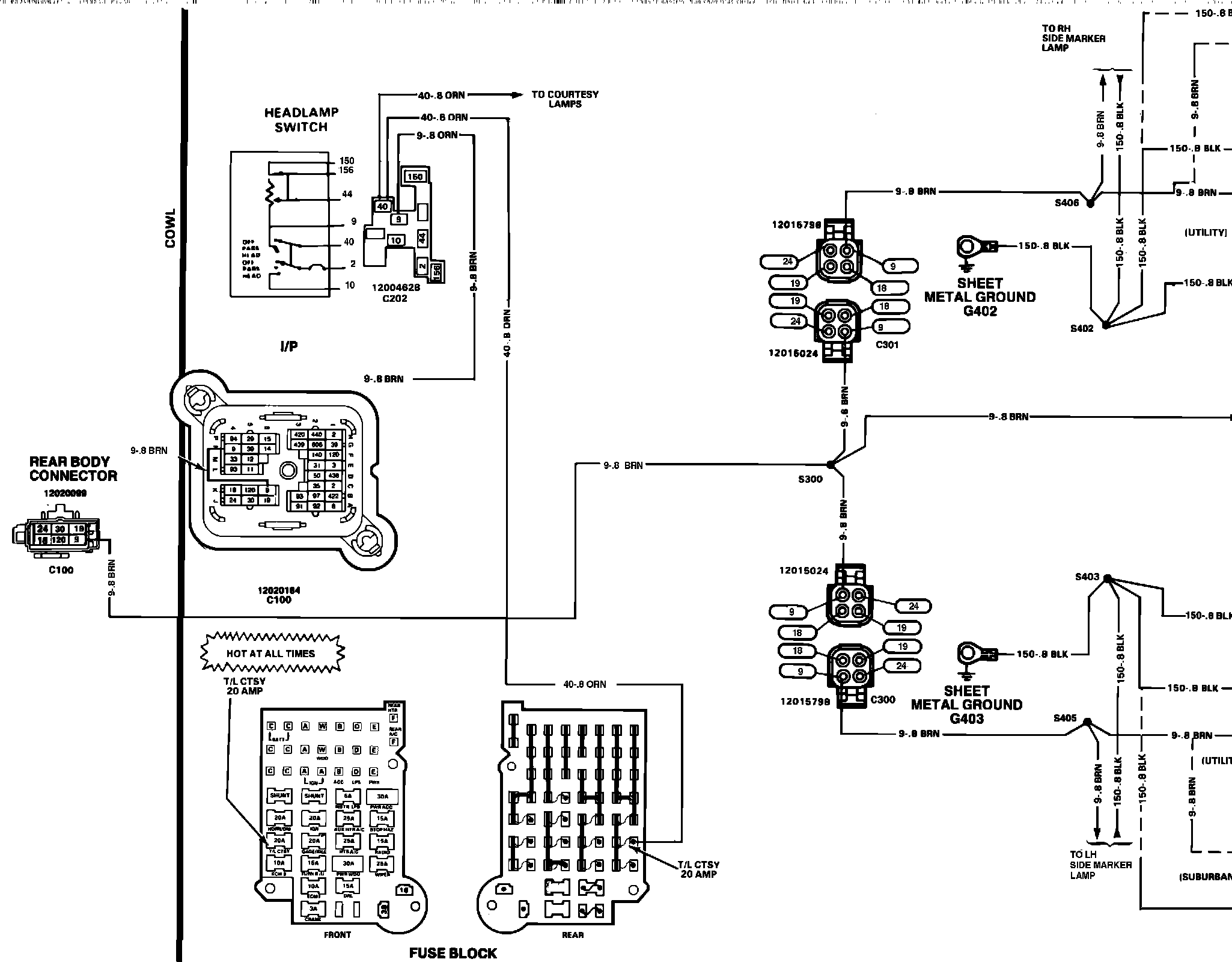

���DTail Lamps (Utility and Suburban):
