Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1990
>>
V 20 P/U 4WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>

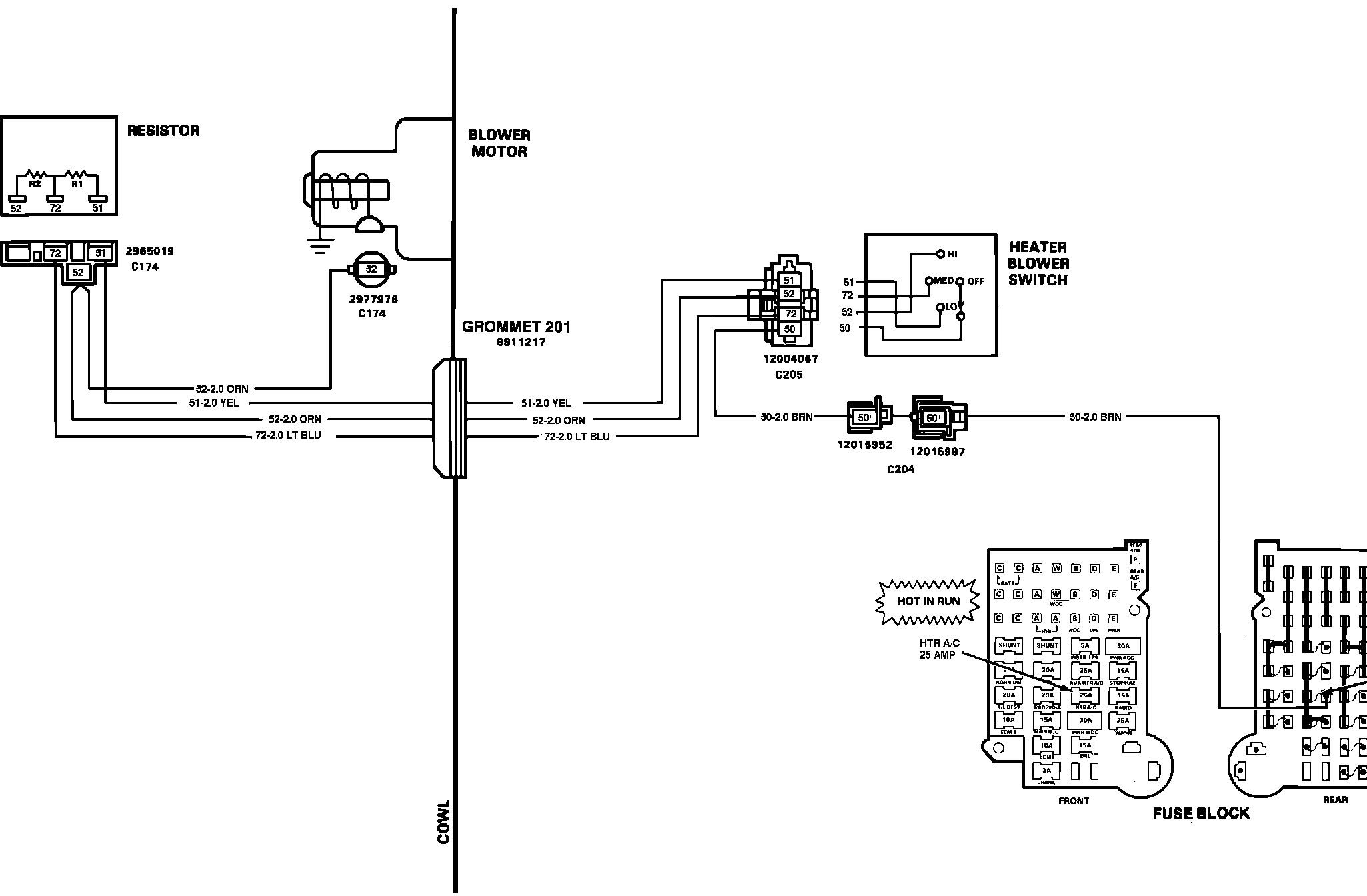

Electrical Diagrams
>>
Without Air Conditioning
Without Air Conditioning
f��9Main Heater:
