Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

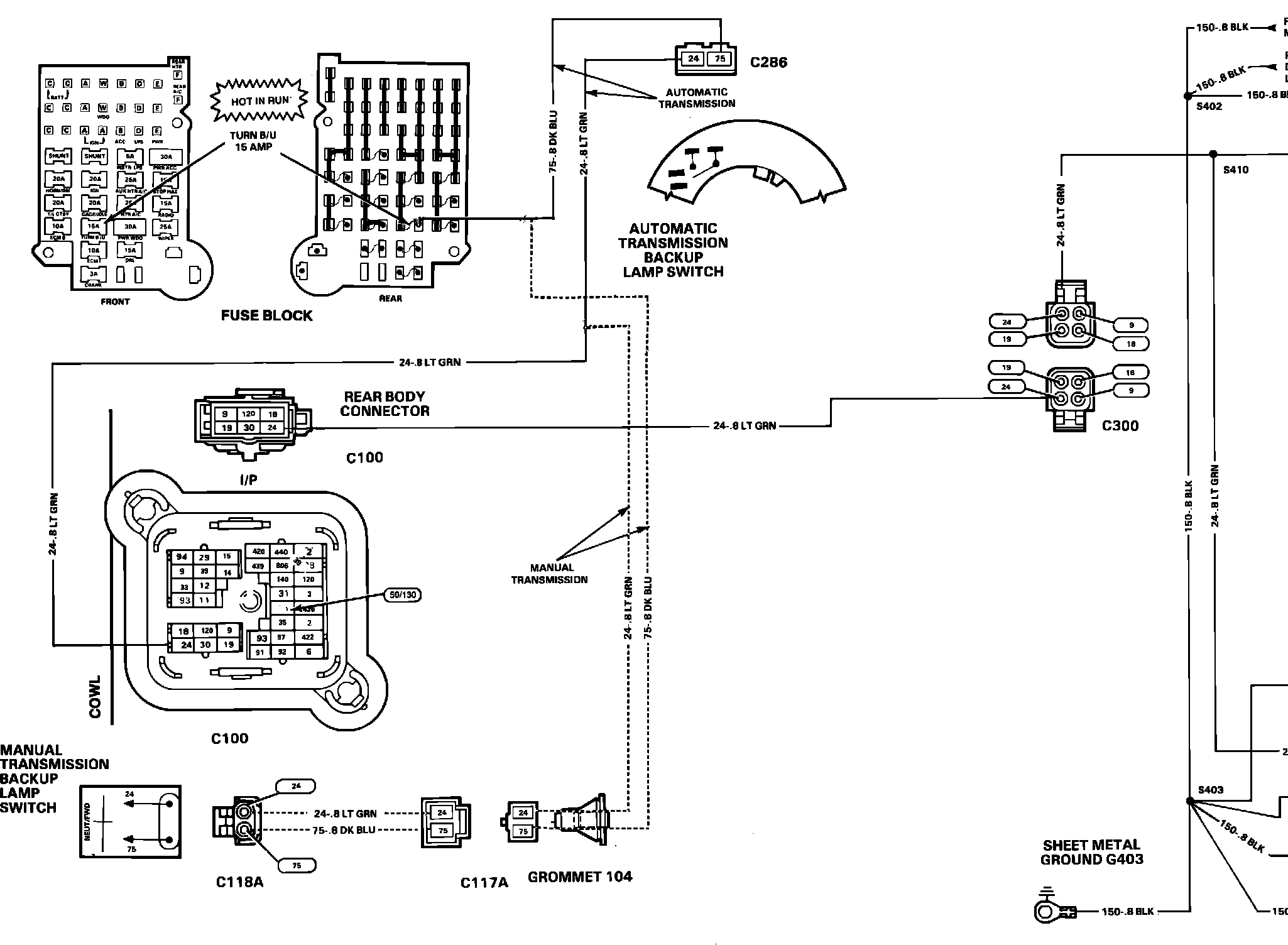

�P�BBack-Up Lamps (Fleetside):

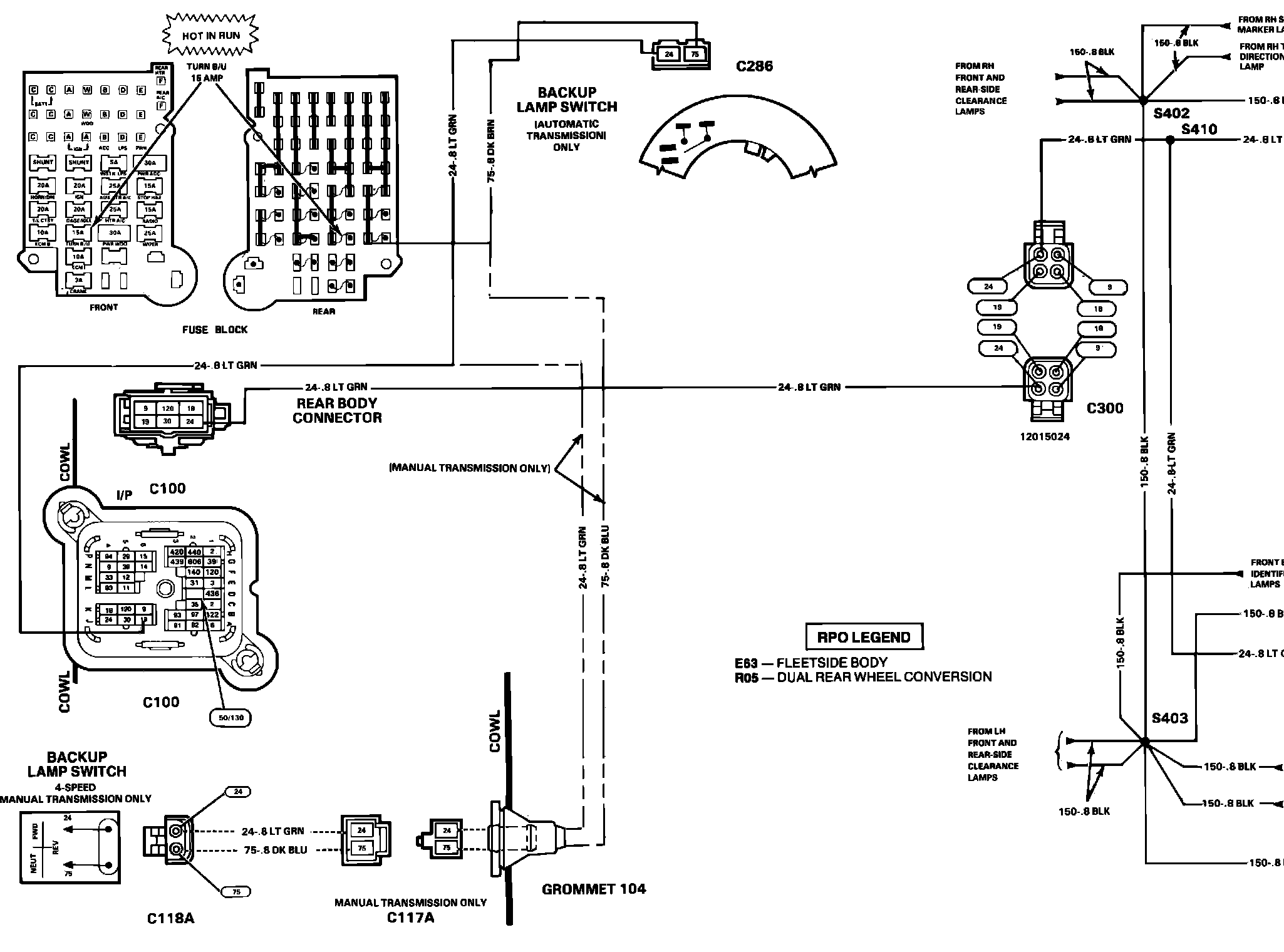

ڦ�BBack-Up Lamps (Fleetside and Wideside):
Back-Up Lamps (Stepside):
