Home >> Chevy Truck >> 1990 >> V 20 P/U 4WD V8-454 7.4L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Base >> With Daytime Running Lamps >> Part 2 of 2

Part 2 of 2

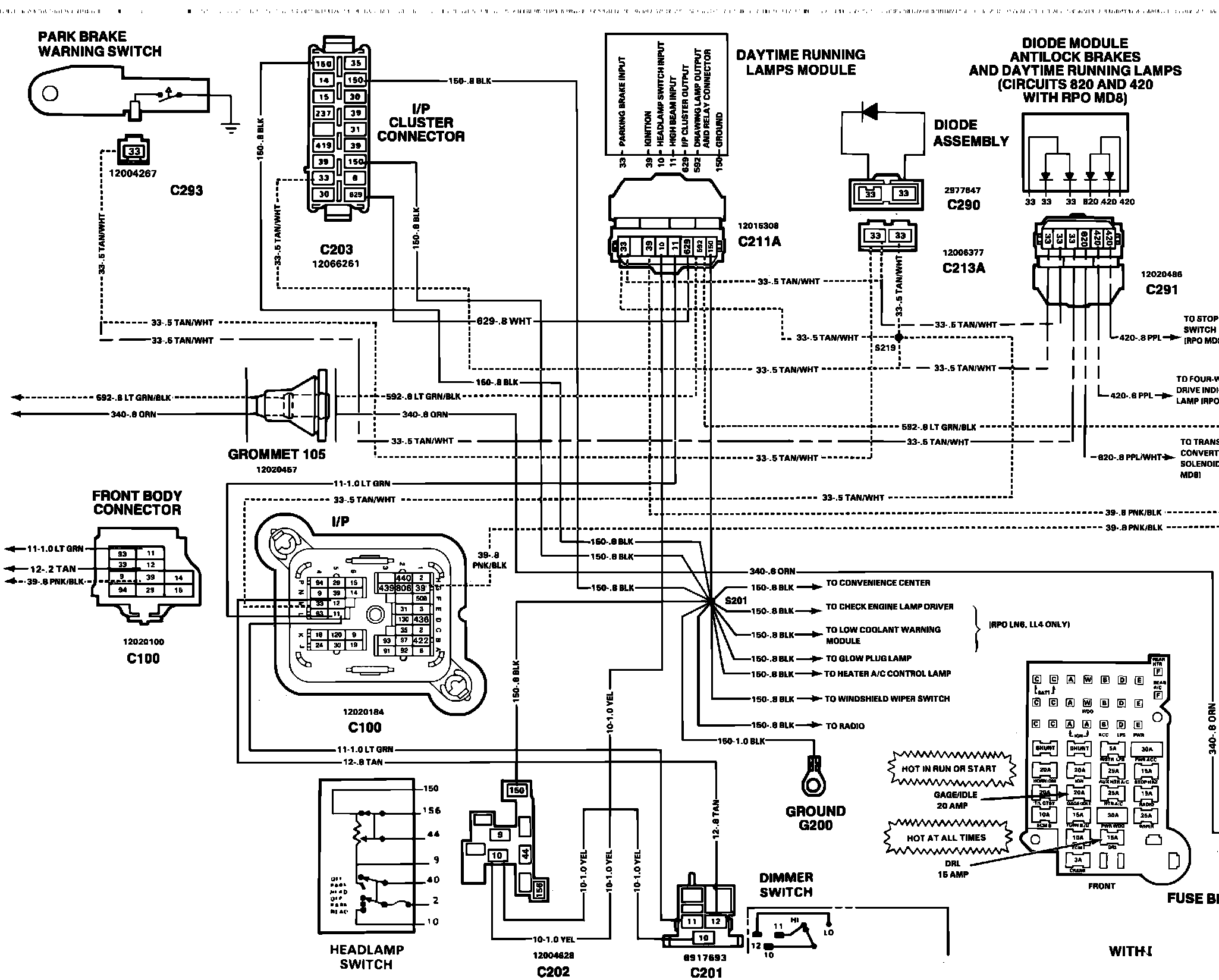

�jDBase Headlamps with Daytime Running Lamps:
