Home
>>
Chevy Truck
>>
1990
>>
V 20 P/U 4WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

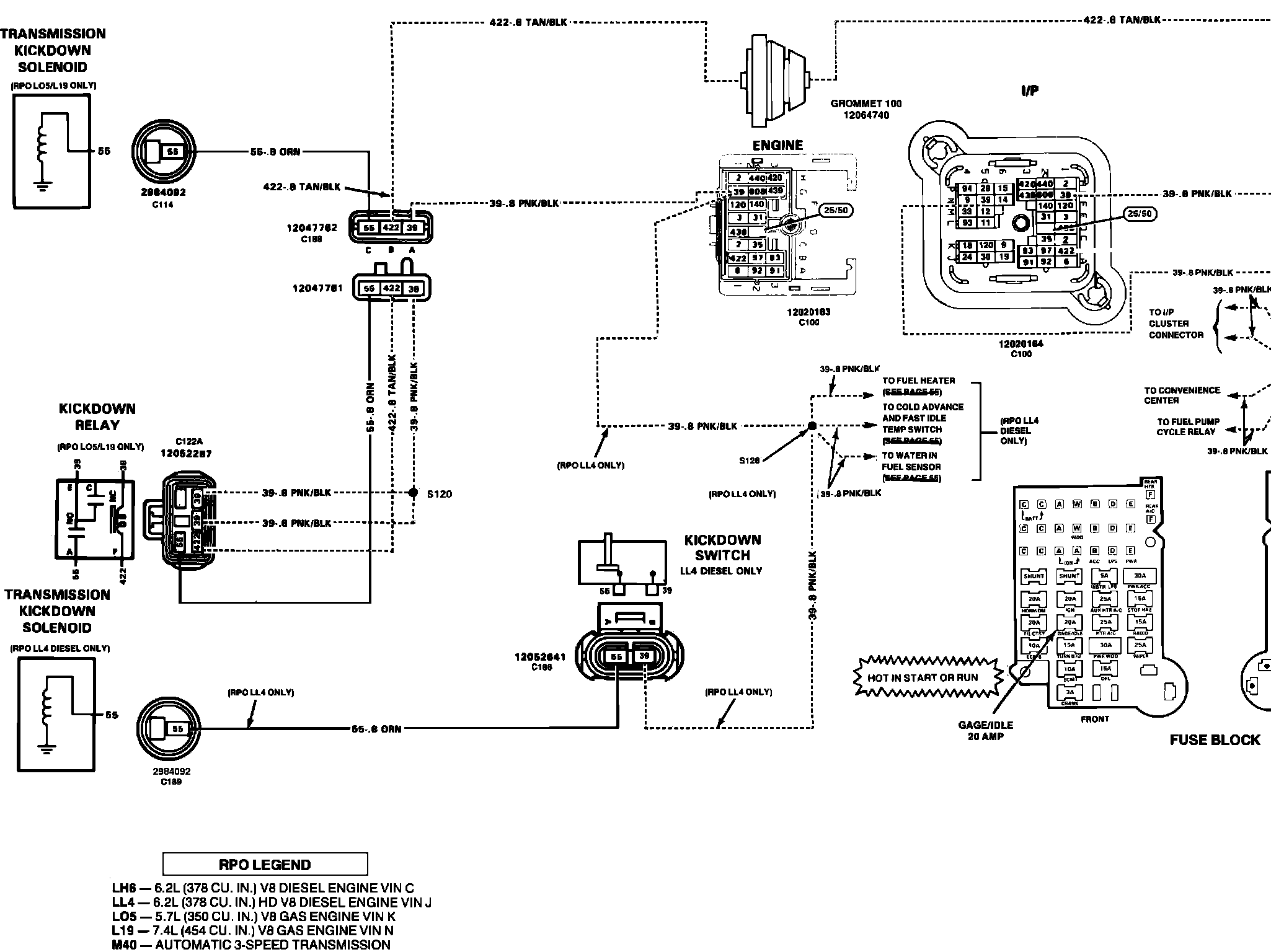

Automatic Transmission Kickdown Solenoid
Automatic Transmission Kickdown Solenoid
.5a#Automatic Transmission Kickdown Solenoid:
