System Diagnosis Chart (Chart C-1)

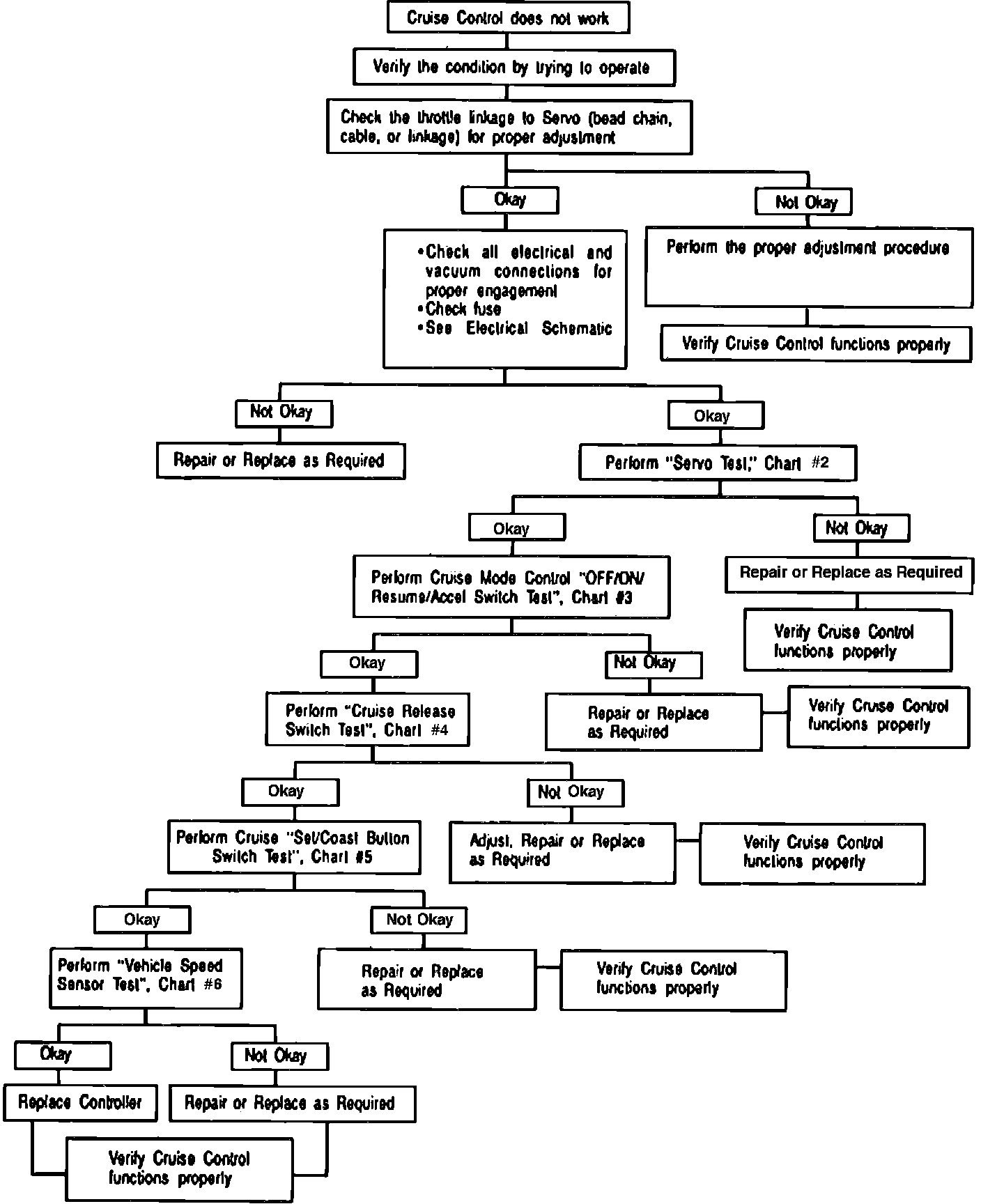

Chart 1, System Diagnosis. 1989-92 Astro/Safari & S/T except Bravada:
