Swing Out Side Doors

zY�>Power Door Locks. Swing Out Side Doors:

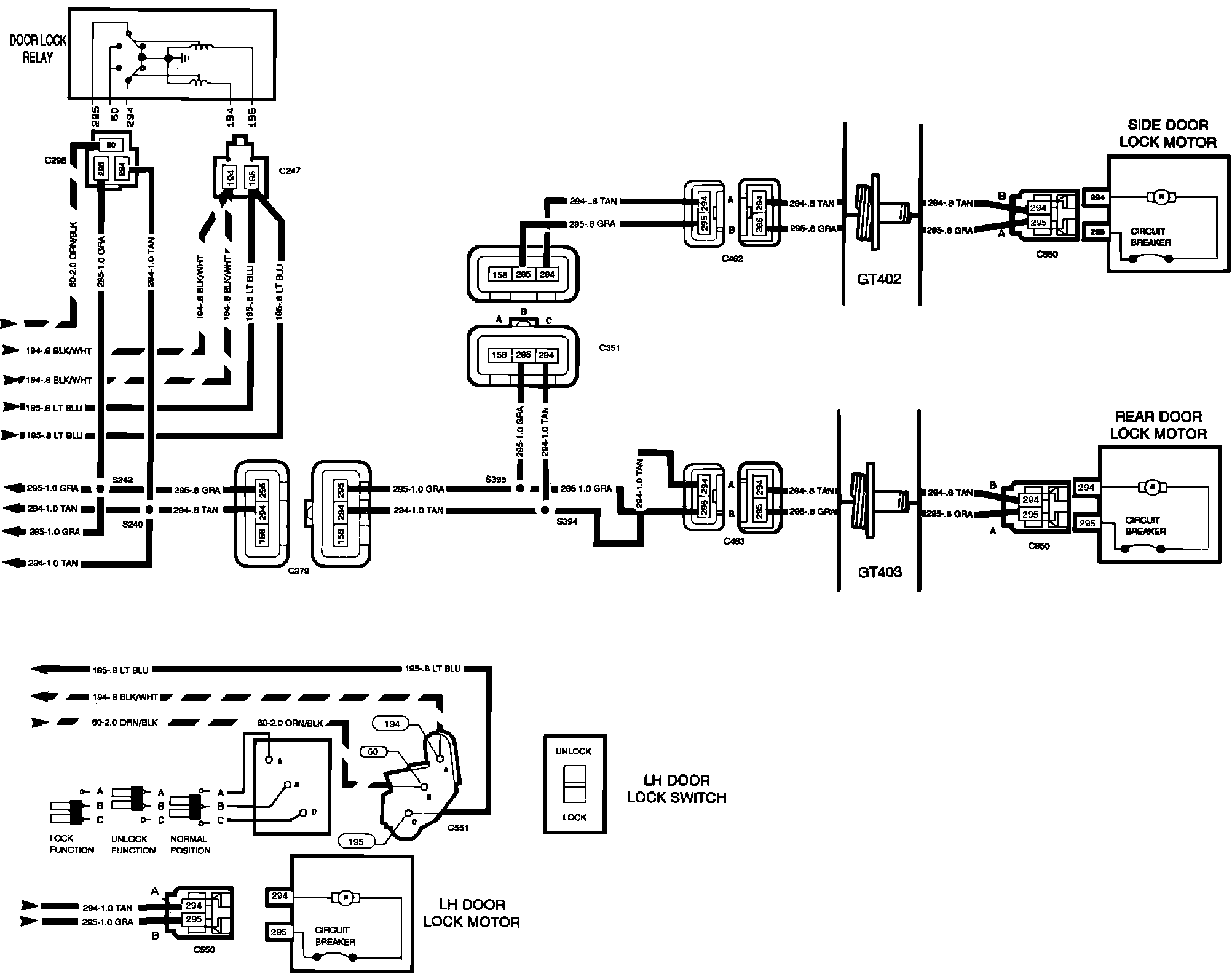

Power Door Locks. Swing Out Side Doors:
