Chevy Truck
>>
1991
>>
G 30 Van V8-454 7.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Primary Unit
Primary Unit

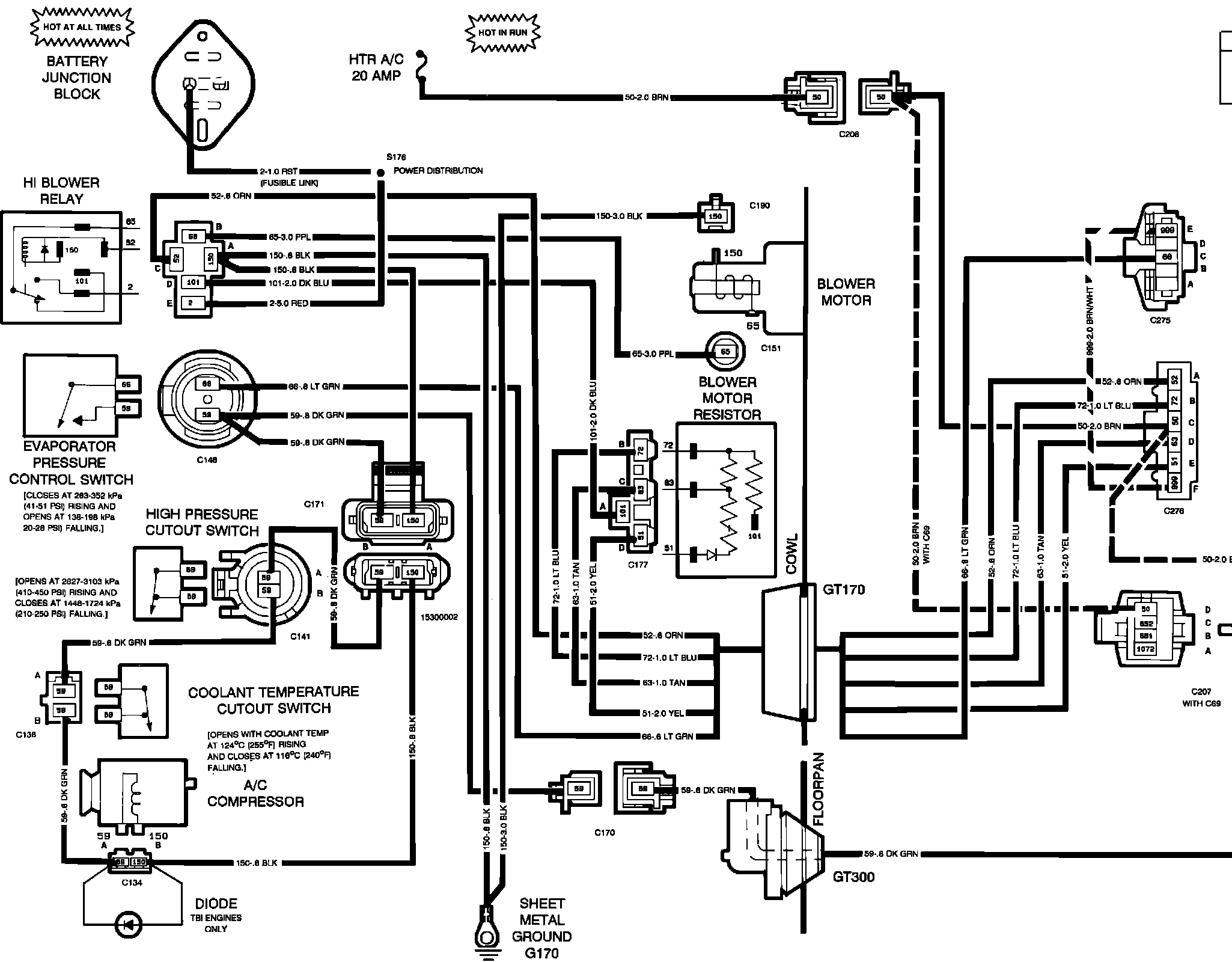

O�9Air Conditioning System:
