Malfunction Indicator Lamp

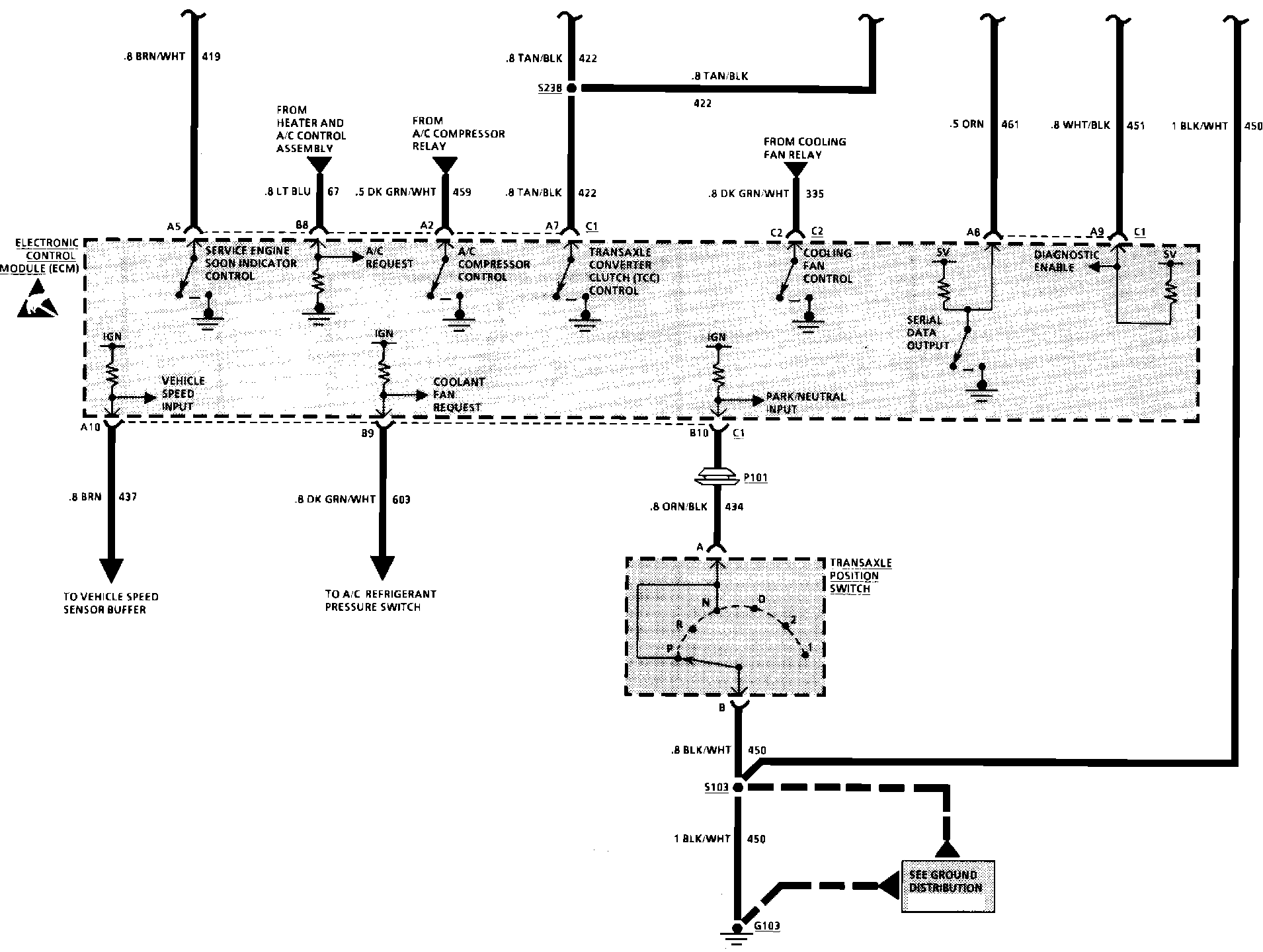

Throttle Body Injection. Transaxle Converter Clutch, "Service Engine Soon" Indicator & Transaxle Position Switch:

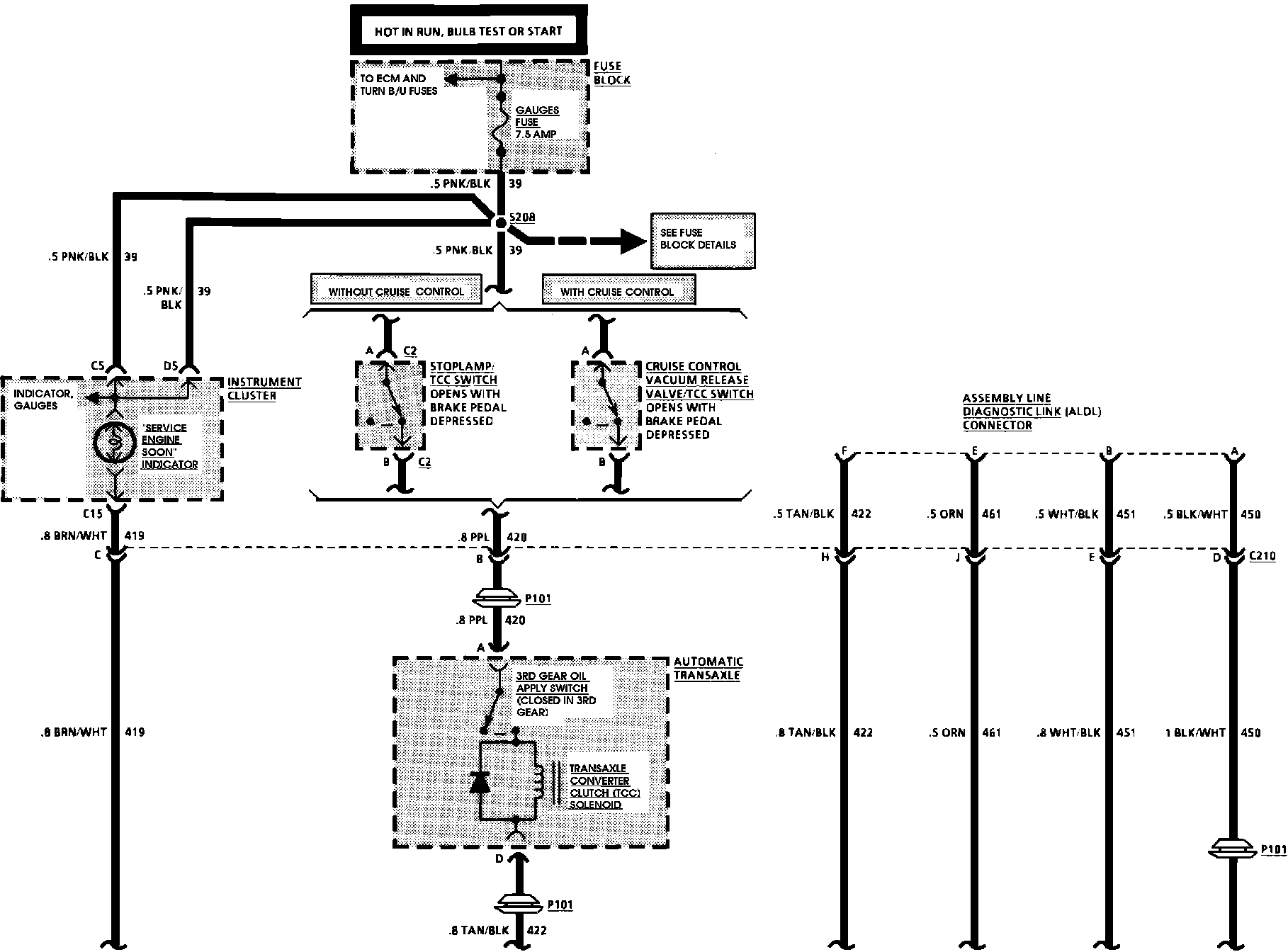

Throttle Body Injection. Transaxle Converter Clutch, "Service Engine Soon" Indicator & Transaxle Position Switch:
