Suspension Control ( Automatic - Electronic )

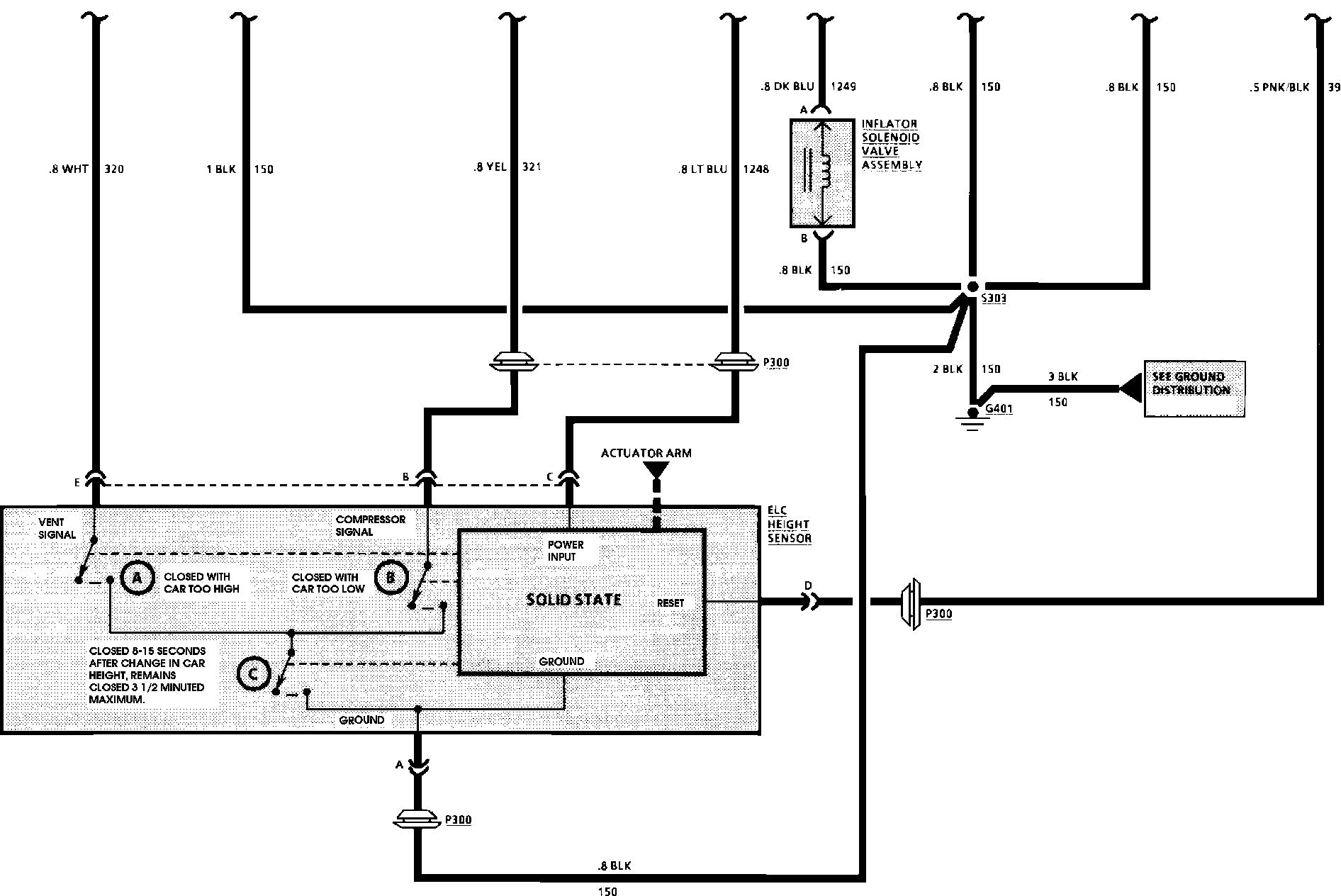

Fig. 2 ELC Wiring Circuit (Part 1 Of 2):



Electronic Level Control:



Fig. 2 ELC Wiring Circuit (Part 2 Of 2):



Electronic Level Control:
