Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

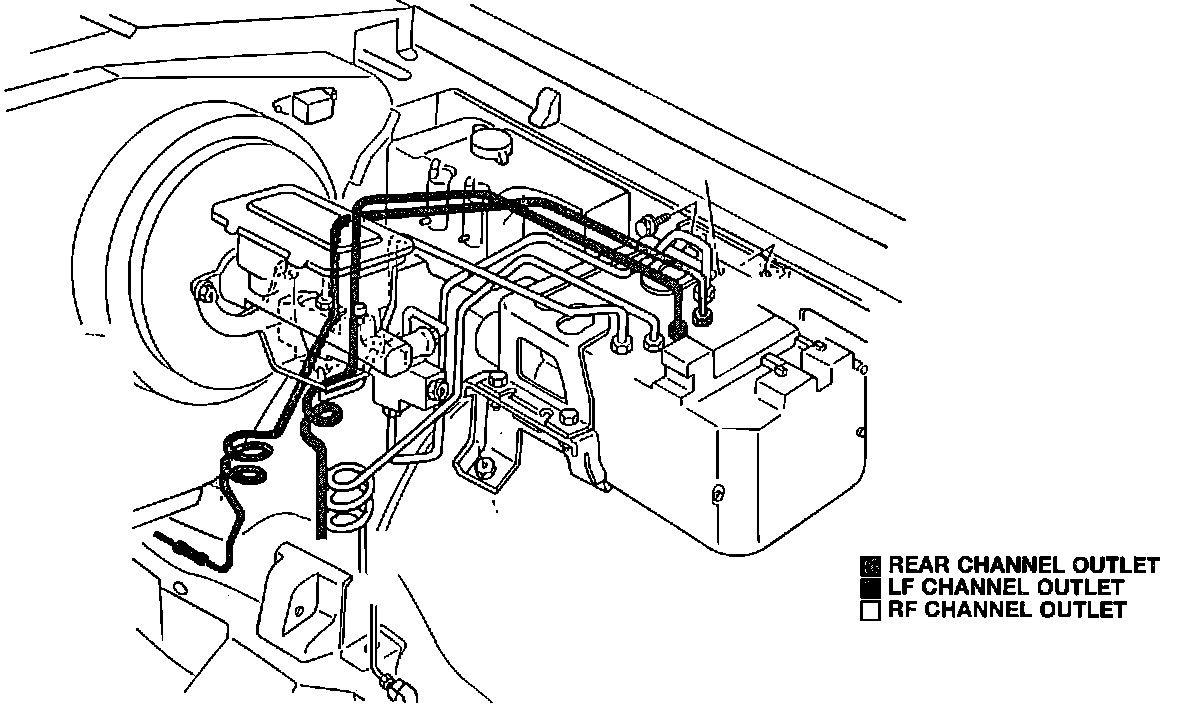

Hydraulic Pipe Routing:

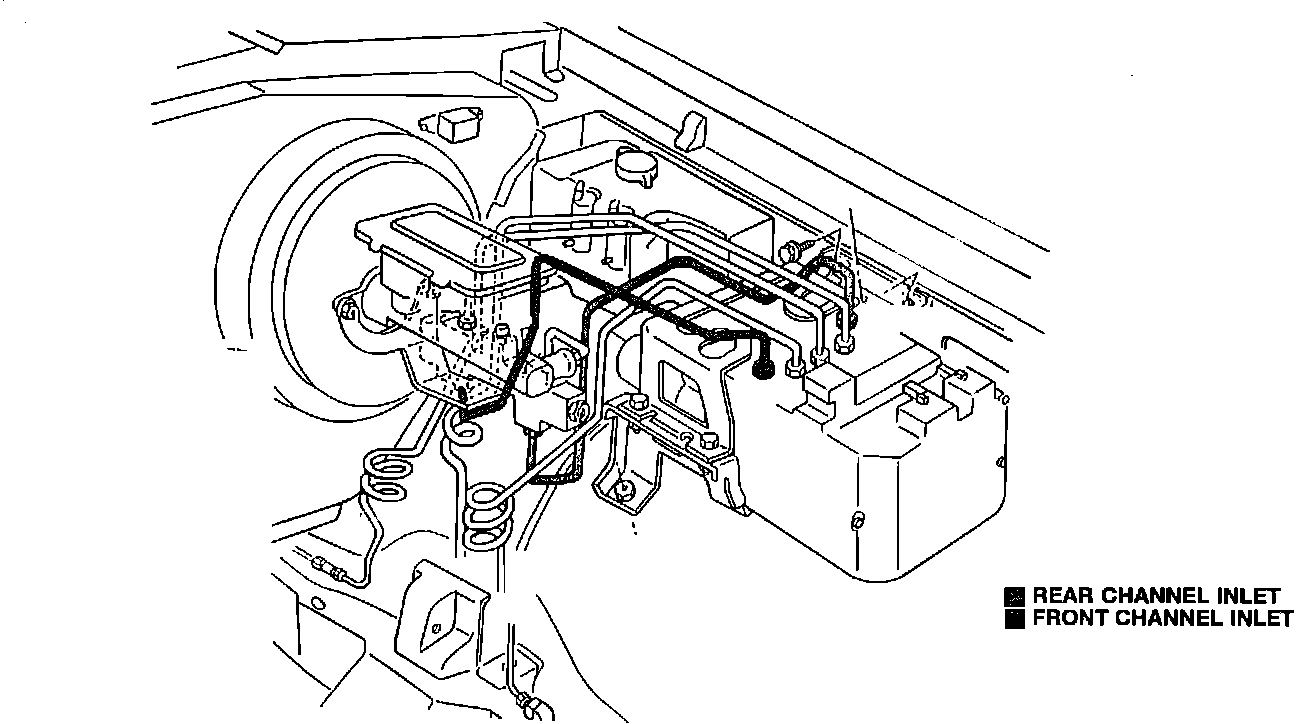

Hydraulic Pipe Routing:
