Fusible Link: Locations

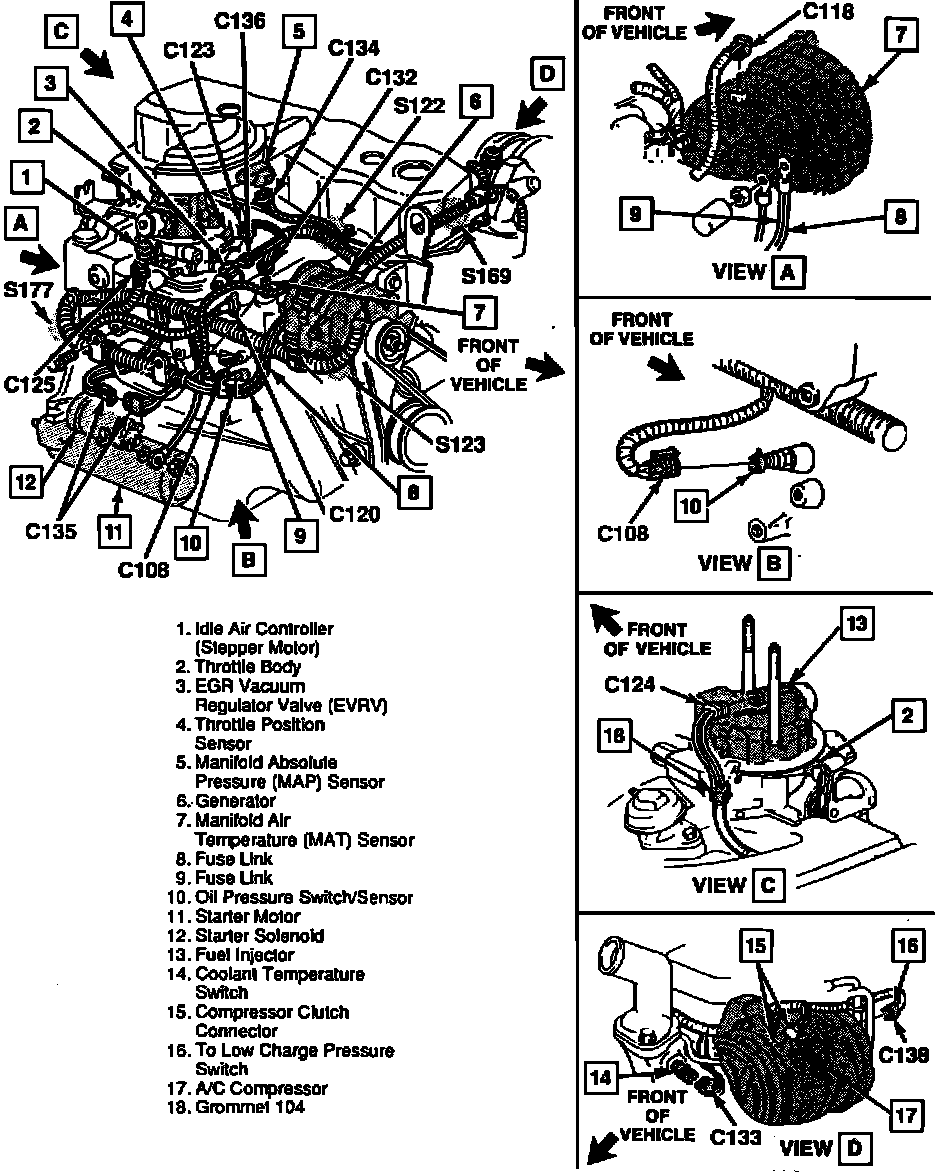

RH Front Side Of Engine:




Front Of Engine

Applicable to: 1991 2.5L/4-151 Engine
