Service Procedure

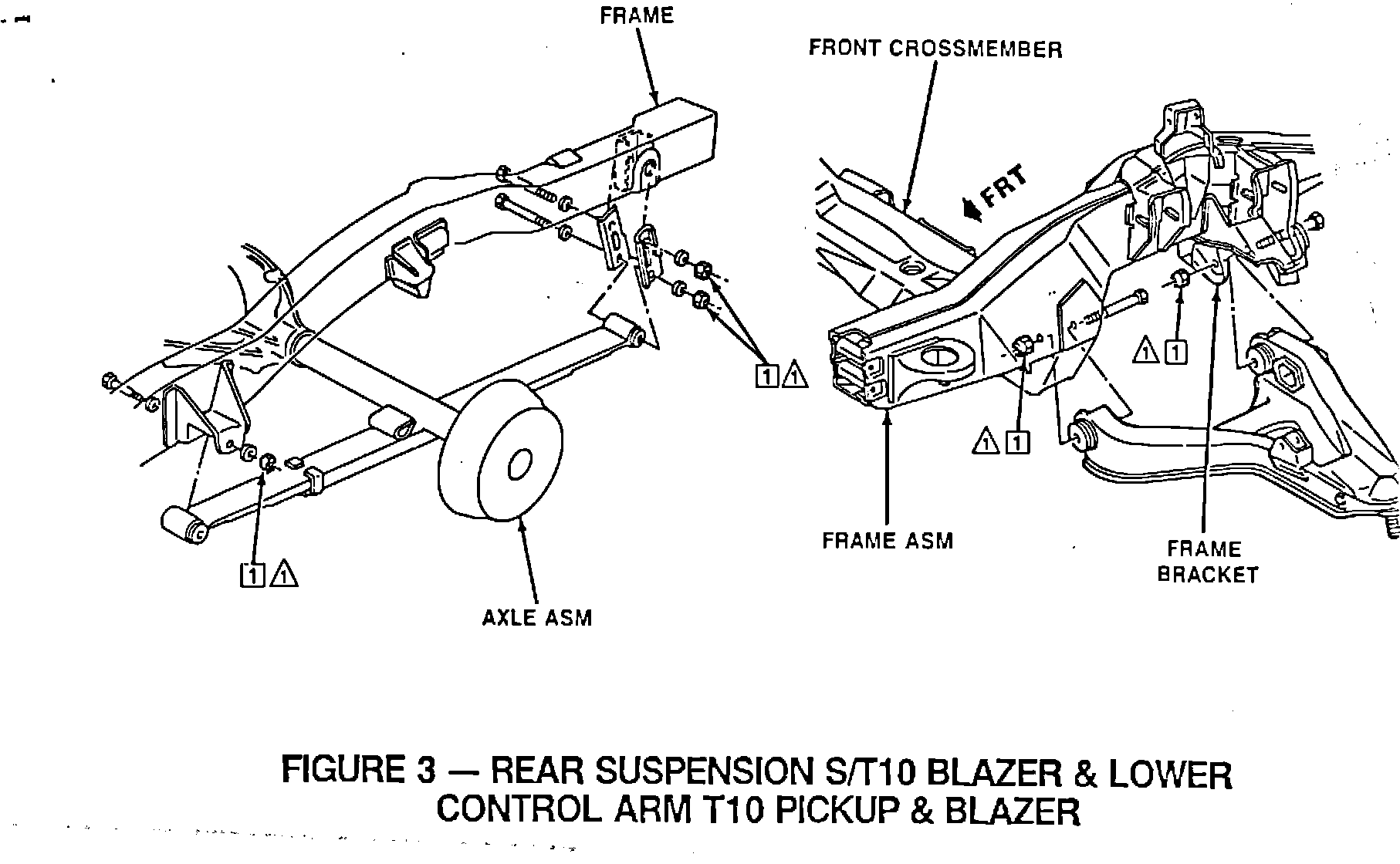

Fig. 7 - Rear Suspension:

1. Raise the vehicle on hoist.

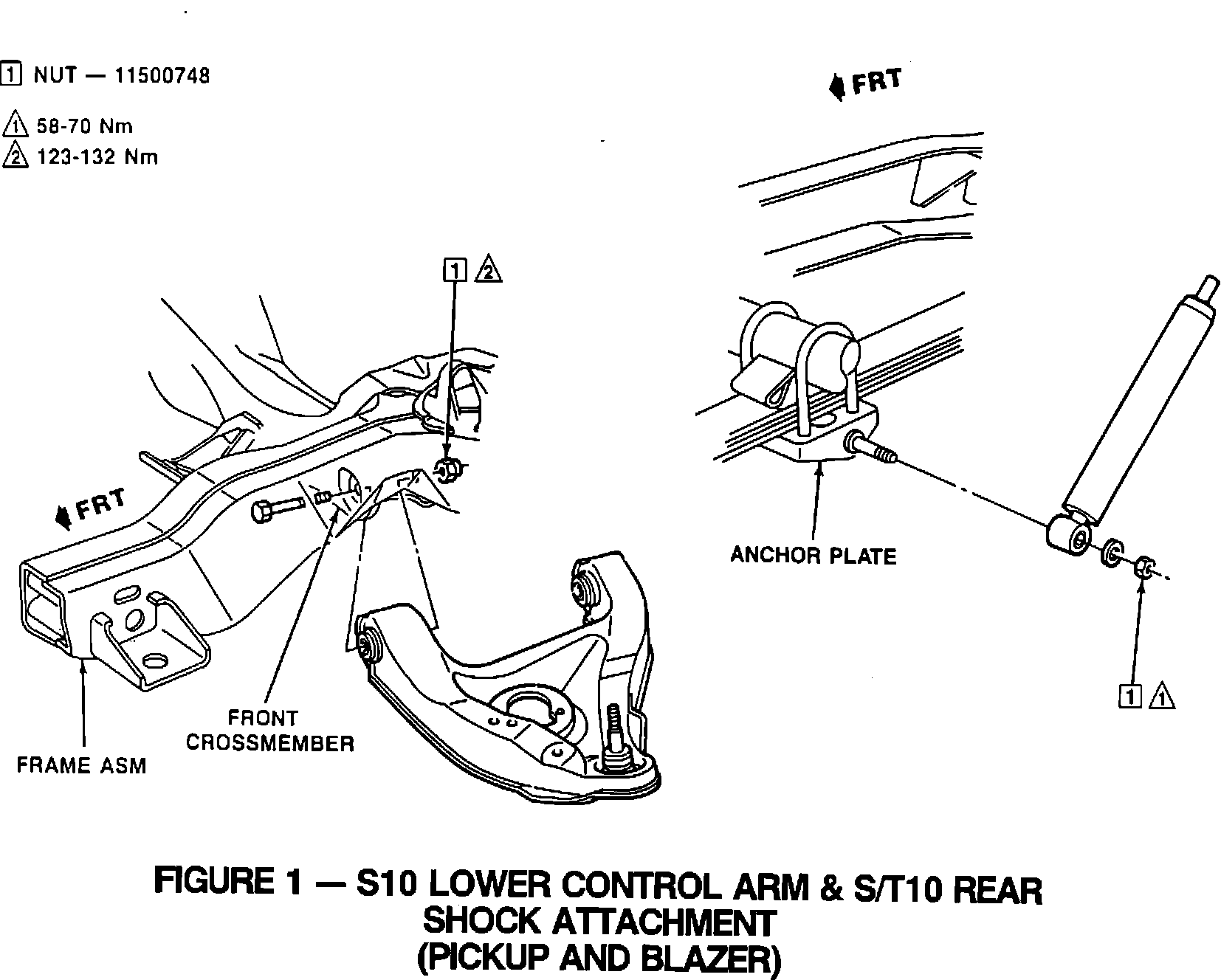

2. Identify the type of front and rear suspension and, using Figures 1, 2 and 3 on pages 4-6, replace the identified

14 MM fasteners one at a time.


NOTICE: DO NOT REMOVE ALL IDENTIFIED FASTENERS AT ONCE, AS THIS MAY CAUSE A CHANGE IN SUSPENSION ADJUSTMENT.

3. Install Campaign Identification Label.
