Service Procedure

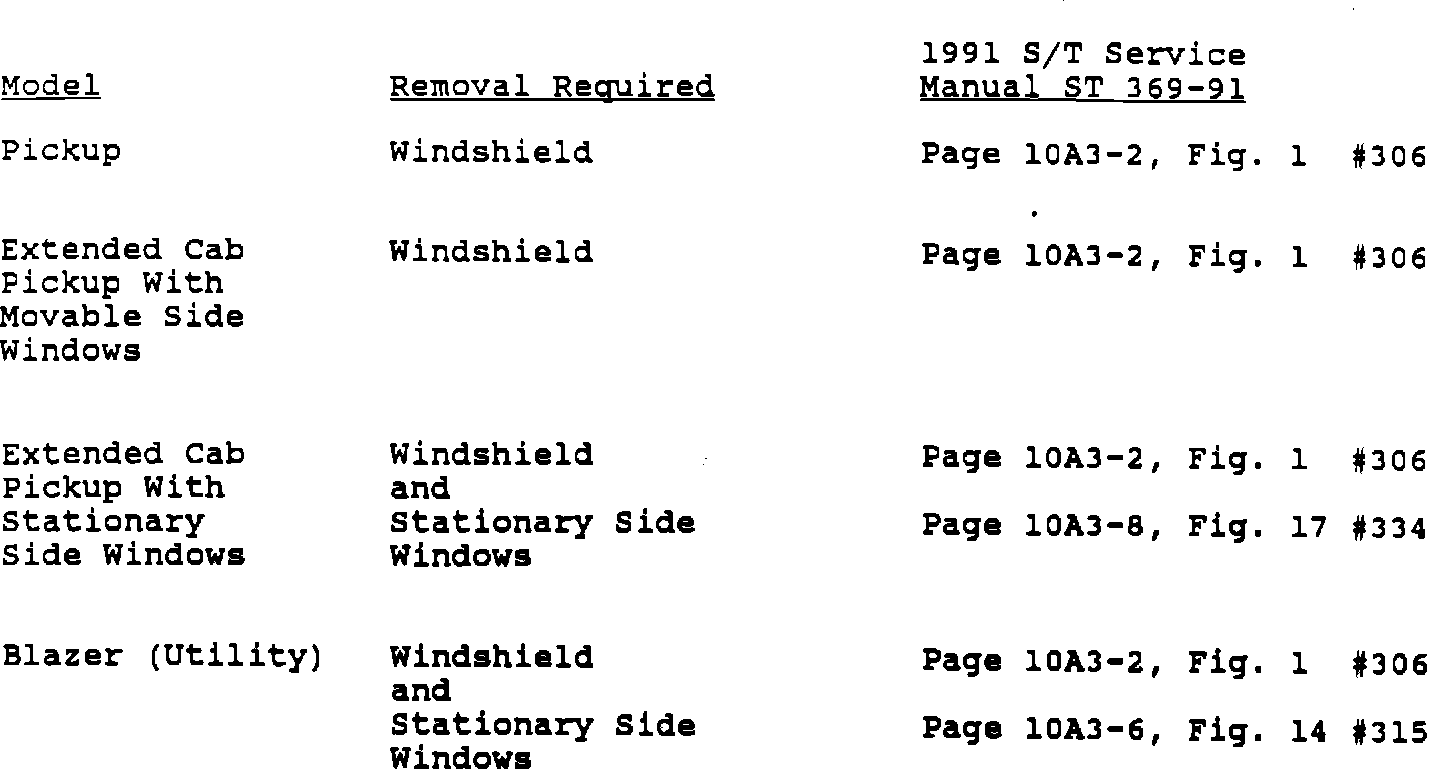

1. Remove windshield and stationary glass rear quarter windows using procedures outlined in the 1991 S/T Service Manual ST369-91, Section 10A3. Window removal necessary for each vehicle type and the applicable service manual pages are shown in the following chart.
2. After removing windshield and quarter windows (as necessary), the metal surface of the window opening must have the black primer (incorrect) removed completely. This may be accomplished by applying duct tape to the primed surface and then quickly stripping tape from the vehicle. The majority of the primer will adhere to the tape. The primer that remains adhered to the body should then be removed using NAPTHA.

3. Reprime the window opening with # 3 metal primer provided in the applicable kit.

4. Reinstall the glass following the procedure outlined in manual section 10A3 (see chart above for applicable page number). Use the # 1 glass prep and # 2 glass primer furnished in the appropriate kit as required by manual instructions.

5. Install Campaign Identification Label.

NOTICE: If this repair is sublet to a glass replacement facility, provide this facility with the required installation procedure, a copy of this notification and the furnished installation kit(s).
