Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1991
>>
S10/T10 P/U 2WD V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Courtesy Lamp
>>
Ash Tray Lamp
Ash Tray Lamp

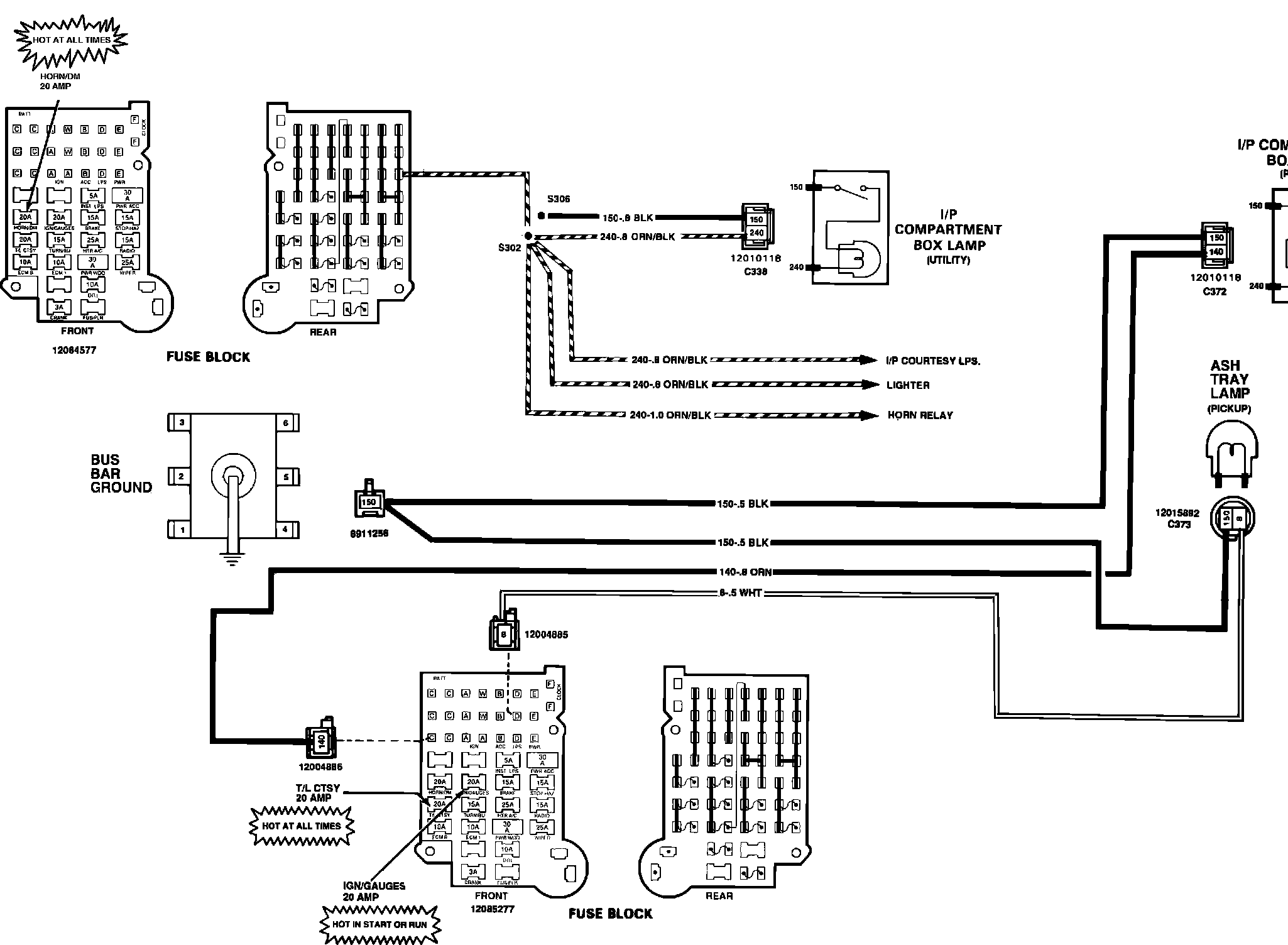

/BnBAshtray And Instrument Panel Compartment Box Lamps:
