Condenser HVAC: Service and Repair

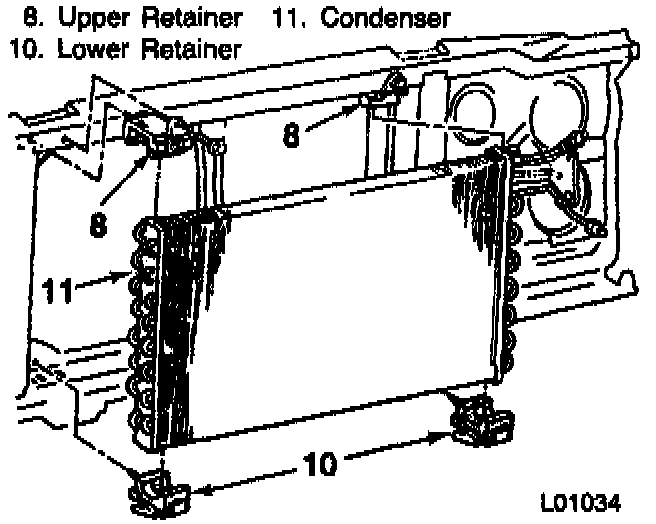

A/C Component View:

Condenser:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Discharge A/C system.
3. Fan.
4. Fan shroud.
5. Radiator mounting bolts.
- Position radiator rearward.
6. Condenser refrigerant lines.
- Cap or plug all open connections.
7 Condenser to radiator support screws.
8. Condenser assembly.

INSTALL OR CONNECT
1. New condenser.

CAUTION: Add 30 ml (1 ounce) of clean refrigerant oil to a new condenser.

2. Condenser to radiator support screws.
3. Condenser refrigerant lines.
4. Radiator mounting bolts.
5. Fan shroud.
6. Fan.
7. Charge A/C system.
8. Negative battery cable.
