Subject: BUZZ OR VIBRATION NOISE IN PARK OR NEUTRAL


Model and Year: 1991 C, K, R, V, G TRUCKS WITH 4L80E/4L80EHD AUTOMATIC TRANSMISSION


SERVICE INFORMATION:

Some HYDRA-MATIC 4L80-E/4L80-EHD Transmissions may experience a buzz or vibration noise while in park or neutral. This is caused by line pressure instability in the pressure regulator valve line-up. Changes made to the Pump Assembly will eliminate this condition. A service package is released for an on-vehicle correction to the Pressure Regulator Valve lineup in the Pump Assembly.

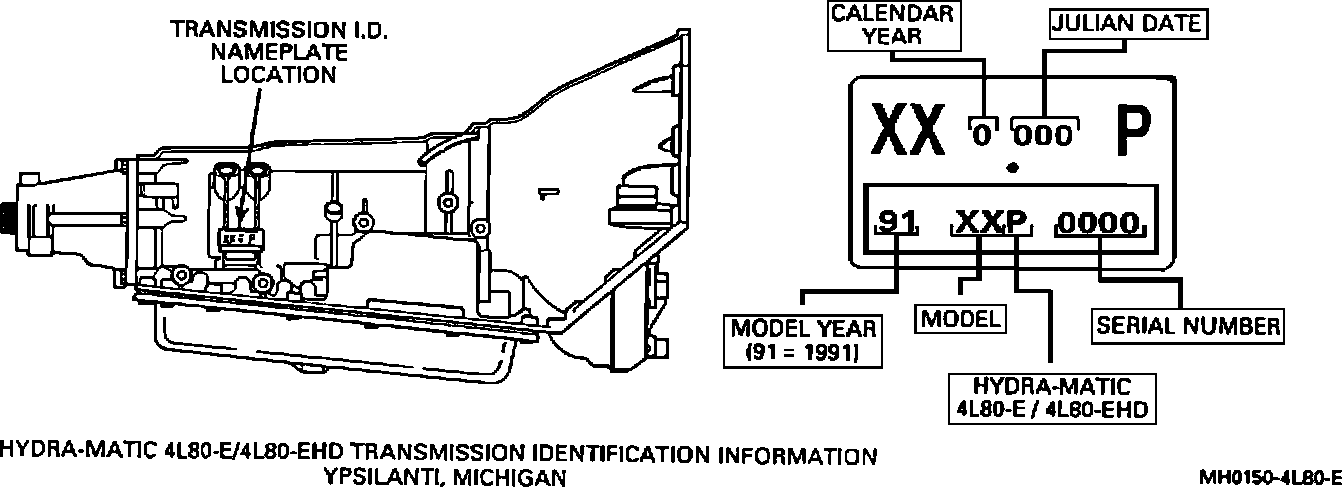

Figure 1 - HYDRA-MATIC 4L80-E/4L80-EHD Transmission Identification Information.:

DATE OF PRODUCTION CHANGE: (Figure 1)

Starting March 15, 1991 (Julian Date 074) all HYDRA-MATIC 4L80-E/4L80-EHD models were built with the new Pressure Regulator and Reverse Boost Valve assembly.


SERVICE PARTS INFORMATION:

Part Number Part Description

8682998 Package, Pressure Regulator and
Reverse Boost Valve

Parts are currently available from GMSPO.

Pump cover and Body Assemblies will have new numbers with updated parts at a future date.

Figure 2 - Removing Pan And Filter Assembly:

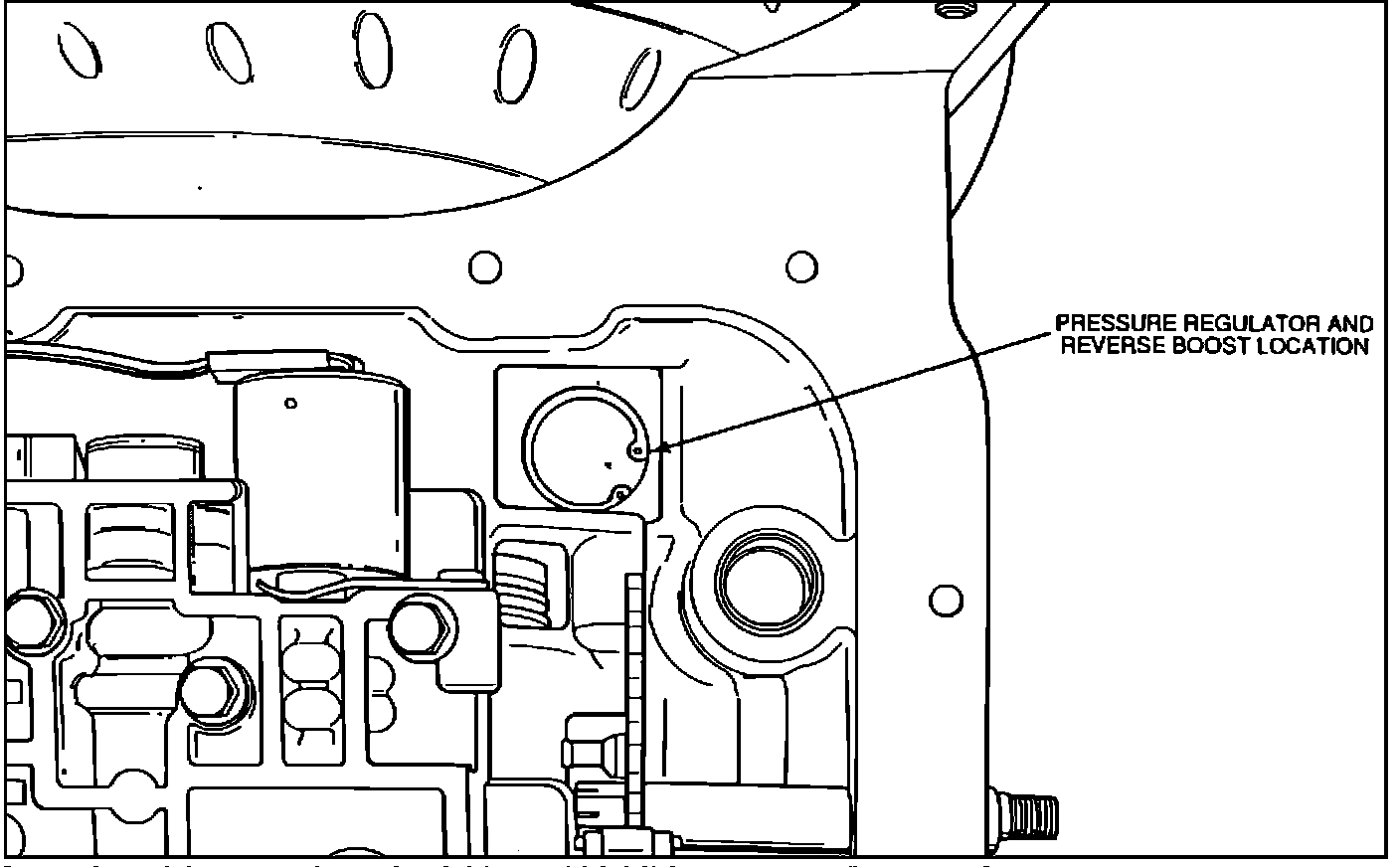

Figure 3 - Pressure Regulator & Reverse Boost Location:

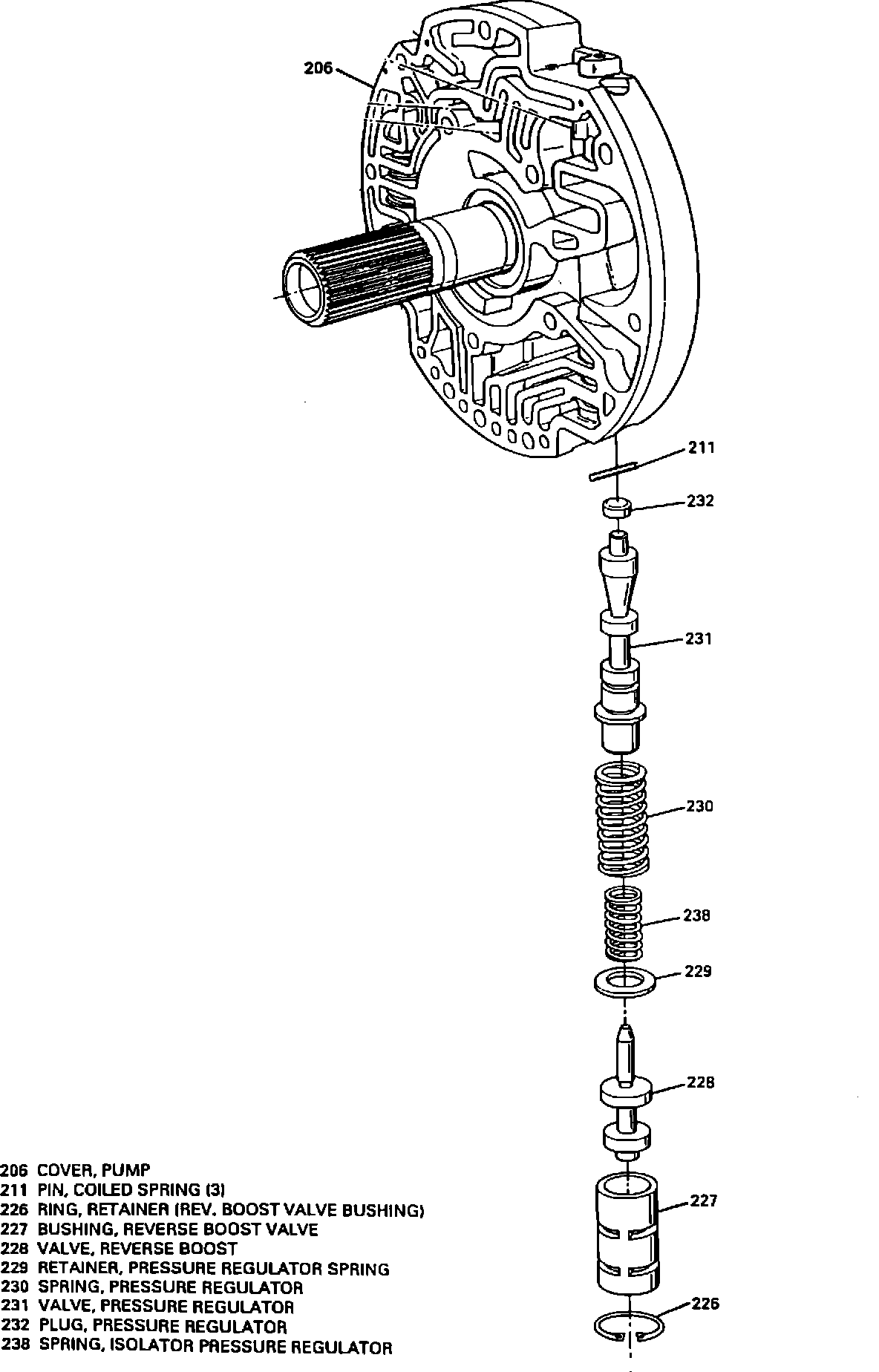

Figure 4 - New Pressure Regulator Valve Line-up:

ON-VEHICLE SERVICE PROCEDURE: (Figure 2, 3, 4)

1. Remove seventeen 10 mm Pan Bolts (27), Seal (29), and Pan (28).

NOTE: Seal (29) is reusable.

2. Remove Filter Assembly (31).

3. Remove Retainer Ring (226), Reverse Boost Bushing (227), Reverse Boost Valve (228), Pressure Regulator Spring Retainer (229), Pressure Regulator Spring (230), and Pressure Regulator Valve (231)

4. Install NEW Pressure Regulator Valve (231). Retain in position with TRANSJEL tm J-36850.

5. Pre-assemble Reverse Boost Valve Bushing (227), New Reverse Boost Valve (228), New Regulator Spring Retainer (229), added Isolator Pressure Regulator Spring (238), and Pressure Regulator Sphng (230).

6. Install Pre-assembled parts into pump bore.

7. Install Retainer Ring (226) while holding Reverse Boost Valve in place. Make sure Retainer Ring is in the groove.

8. Install filter (31).

9. Seal (24) and Pan (28) with seventeen 10 mm Screws (27), torque 8-14 N-m (6-10 lb.ft.).

Labor Operation: T7281

Labor Hours: 0.7 Hours

Trouble Code: 92


SERVICE MANUAL REFERENCE:

Refer to the Unit Repair Service Manual Section of the appropriate service manual for replacement procedures.
