A/T - Double or 1-2 Shift Shudder

91chevy19

Number: 91-360-7A

Section: 7A

Date: JULY 1991

Corporate Bulletin No.: 177115


Subject: 1-2 SHIFT SHUDDER, HARSH OR DOUBLE FEEL


Model and Year: 1990 C, K, R, V, G AND P TRUCKS WITH 3L80 AND 3L80-HD AUTOMATIC TRANSMISSION
1991 C, K, R, V, G AND P TRUCKS WITH 4L80-E AND 4L80-EHD AUTOMATIC TRANSMISSION


TRANSMISSION MODELS: ALL MODELS

Service Information:

Some HYDRA-MATIC 4L80-E/4L80-EHD and 3L80/3L80-HD transmissions may experience a 1-2 shift shudder or harsh double feel. This is caused by fluid leaking past the rear accumulator piston seals. A new piston and ring assembly package was released that eliminates this condition.

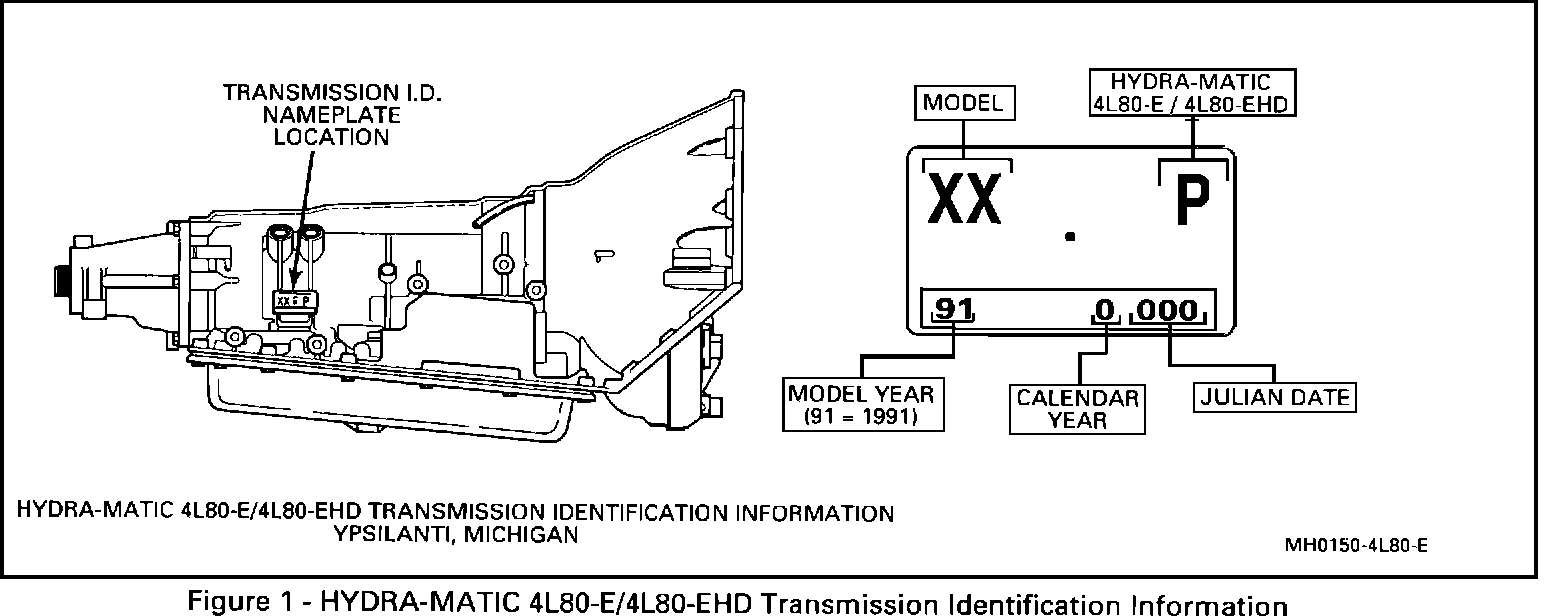

Figure 1:

Date of Production Change: (Figure 1)

Starting April 18,1991 (Julian Date 108) all HYDRA-MATIC 4L80-E/4L80-EHD models were built with the new Accumulator Piston and Seals.

Figure 2:

Service Parts Information: (Figure 2)

Part Number Part Name
8680929 Piston and Ring Assembly, Rear Accumulator

New Piston and Ring Assembly can be used with older model cases. When installing, use TRANSJEL J36850 or equivalent to aid in assembly.


Old Piston Ring and Ring Assembly cannot be used on new cases.

Parts are currently available from GMSPO.

Service Manual Reference:

Refer to the On-Vehicle Section of the appropriate service manual for proper replacement procedures.
