Windshield Washer Pump: Testing and Inspection

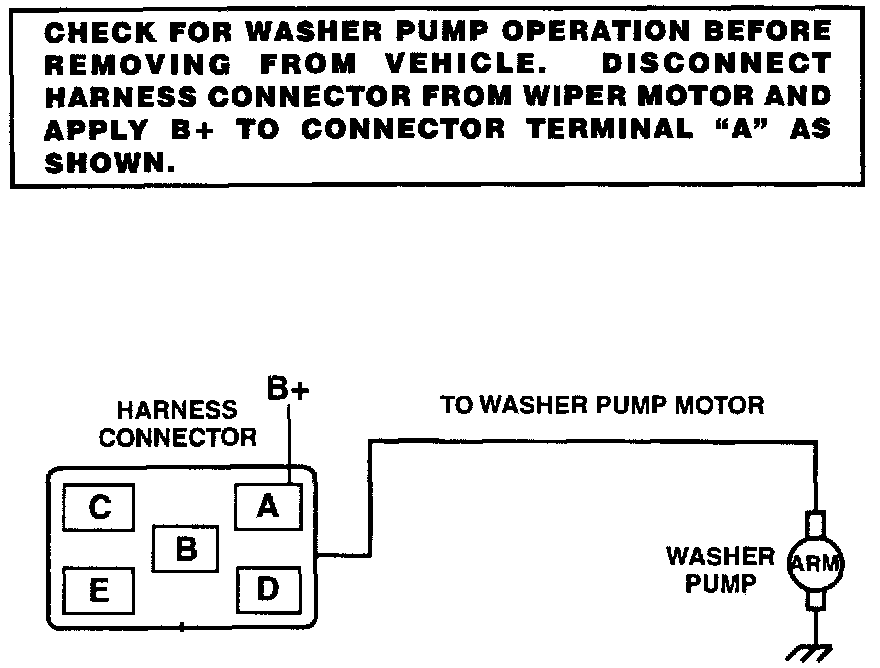

Wiring Diagram:

1. If washer pump does not run or pump solvent, replace washer pump.
2. If washer pump runs and pumps solvent, the problem is in the circuit board, wiper motor park switch, or wiper switch.
