Air Delivery and Temperature Controls

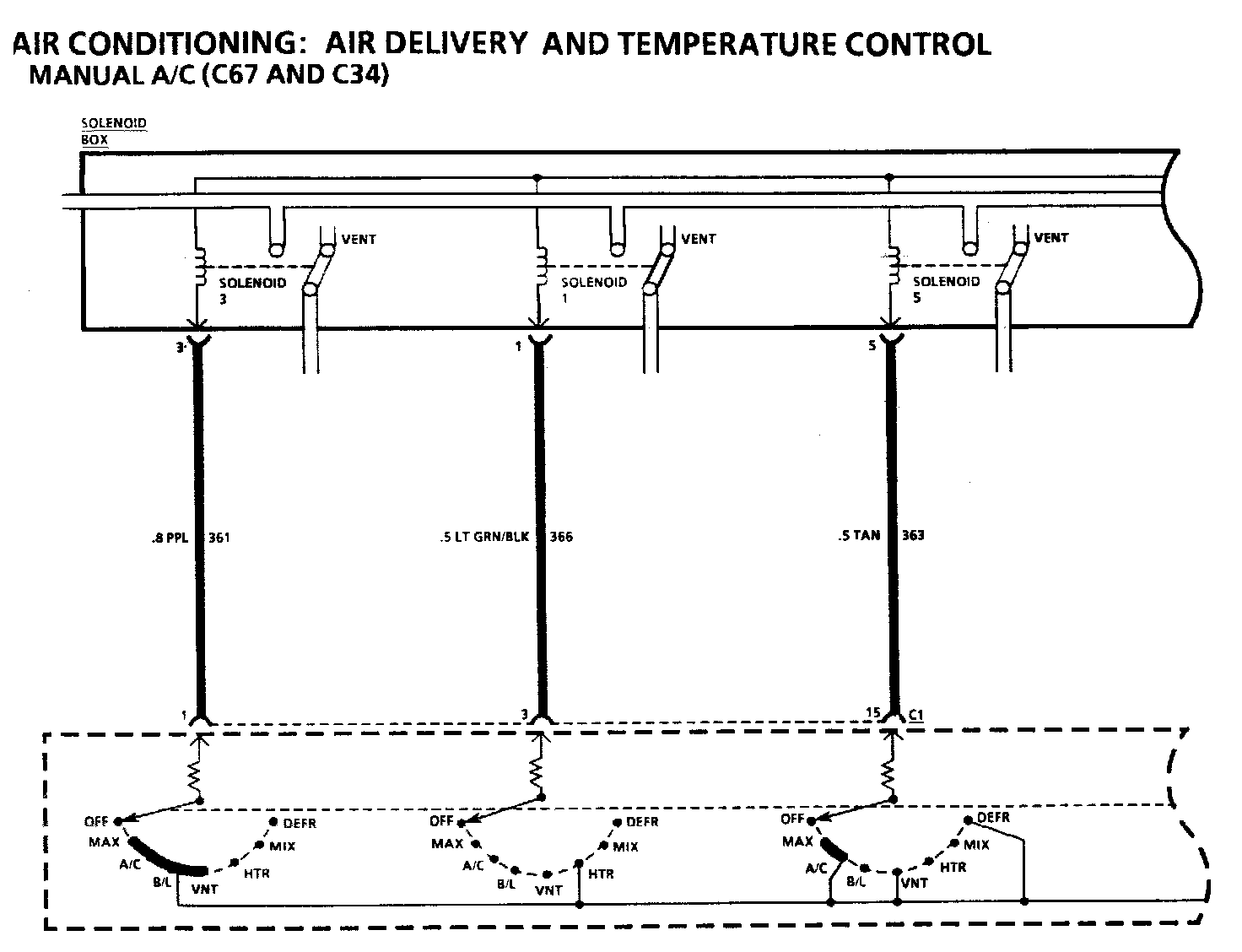

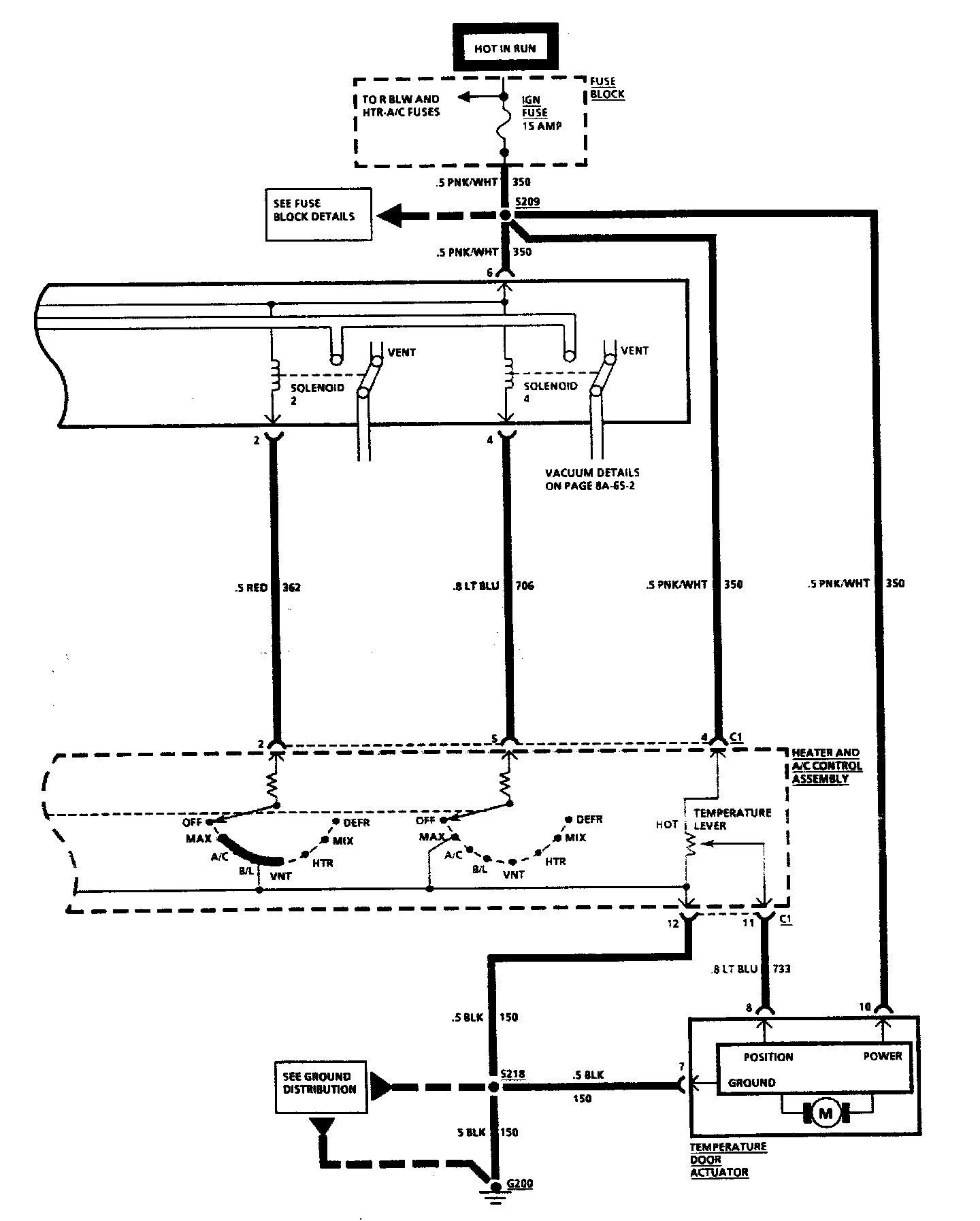

Air Delivery and Temperature Control (Manual A/C C67 and C34)

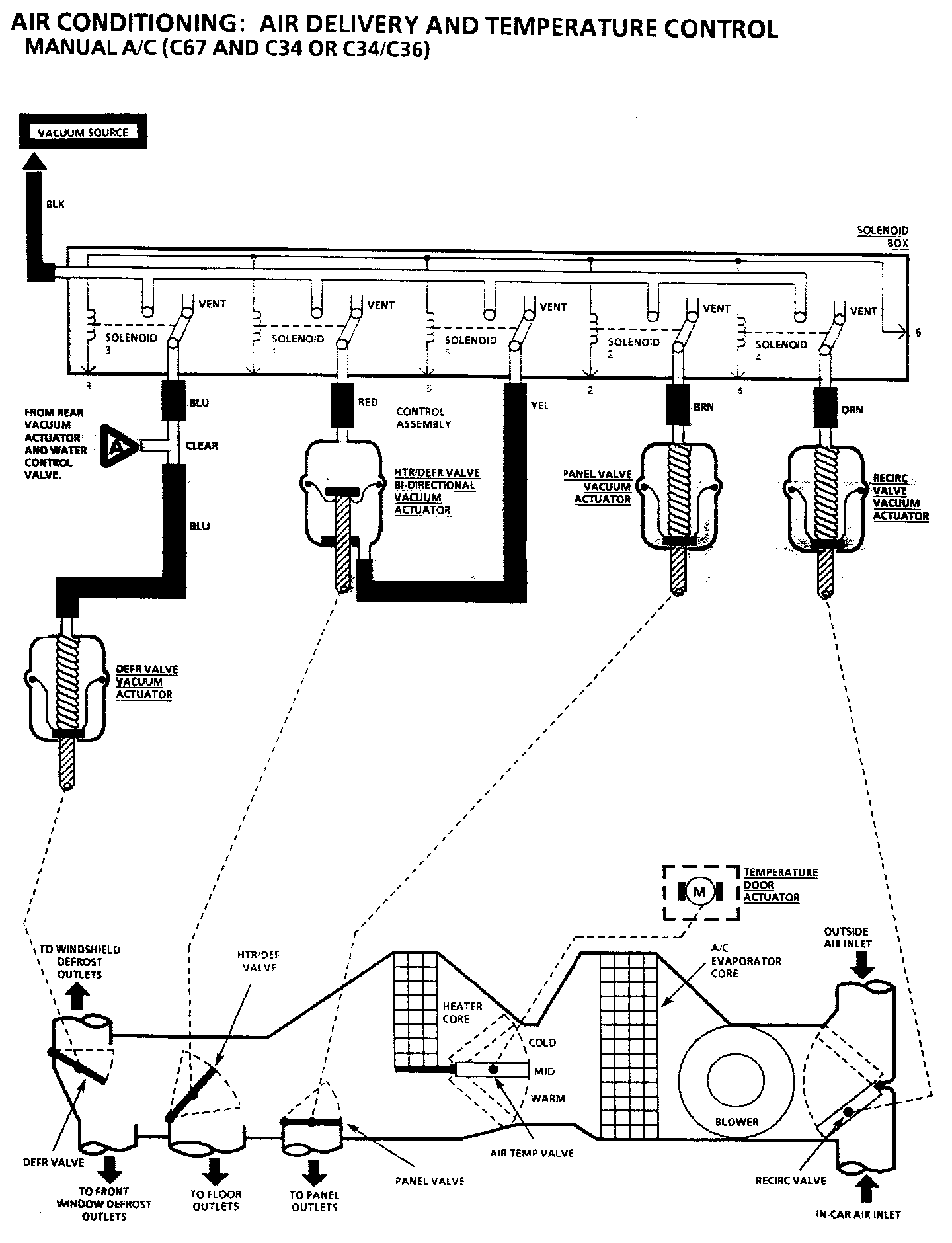

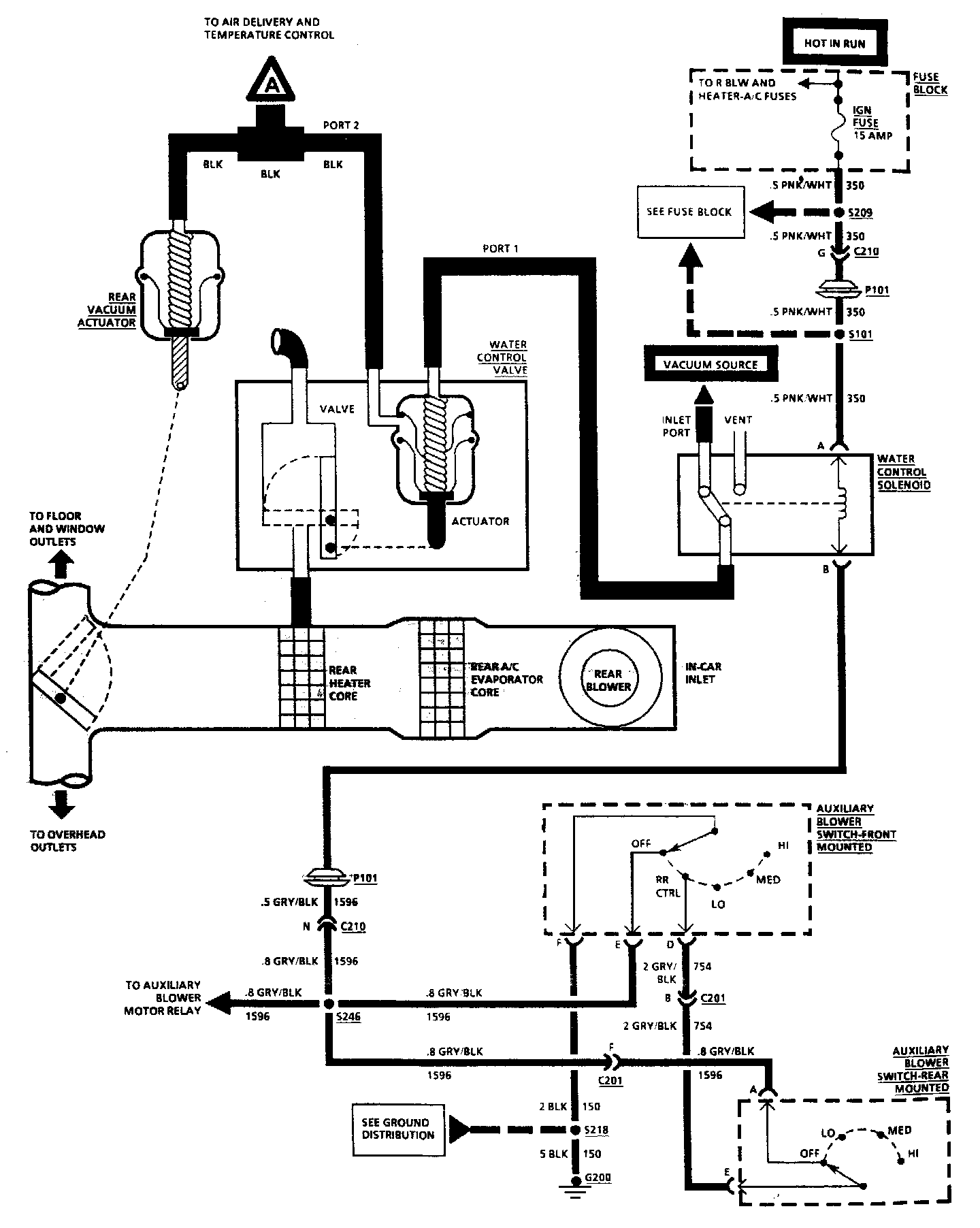

Air Delivery and Temperature Control (Manual A/C (C67 and C34 or C34/C36)
