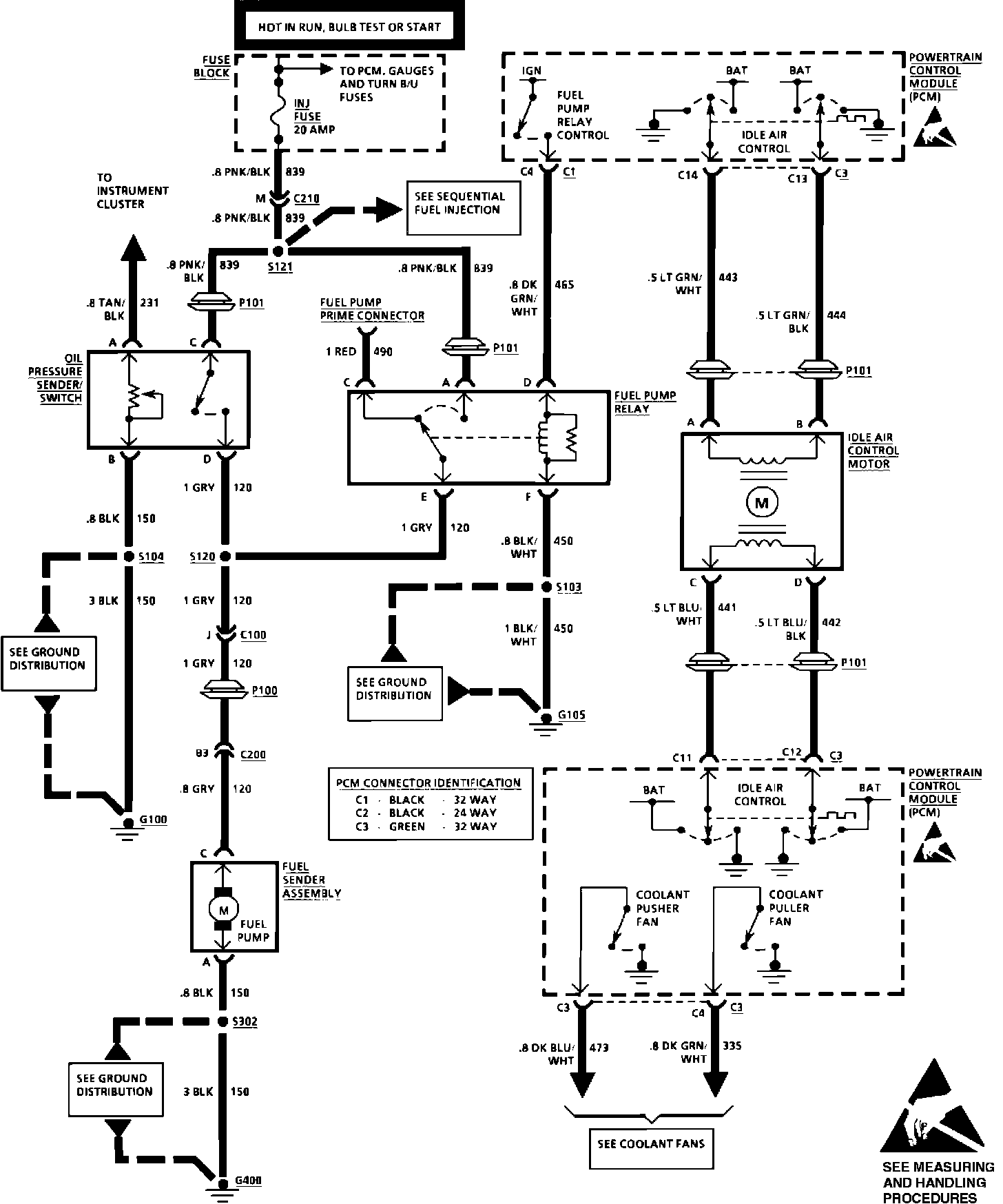

Fuel Pump & Idle Air Control (IAC)
Fuel Pump & Idle Air Control (IAC)
Fuel Control And Idle Air Control:
