Home >> Chevy Truck >> 1992 >> S10/T10 P/U 2WD V6-173 2.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

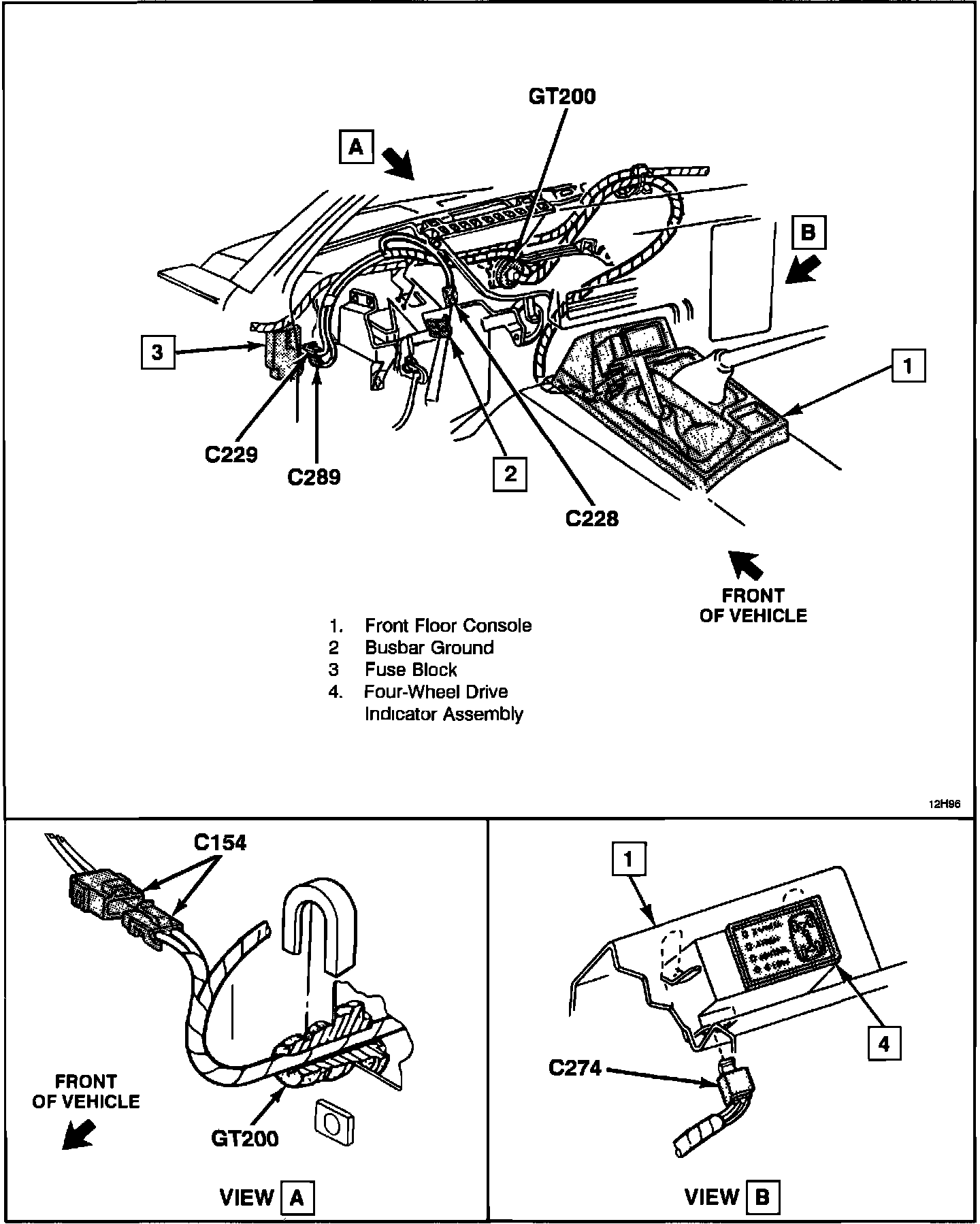

Fuse Block: Locations

LH I/P And Four-Wheel Drive Indicator:
