Chevy Truck
>>
1993
>>
G 20 Van V8-305 5.0L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 68
DTC 68

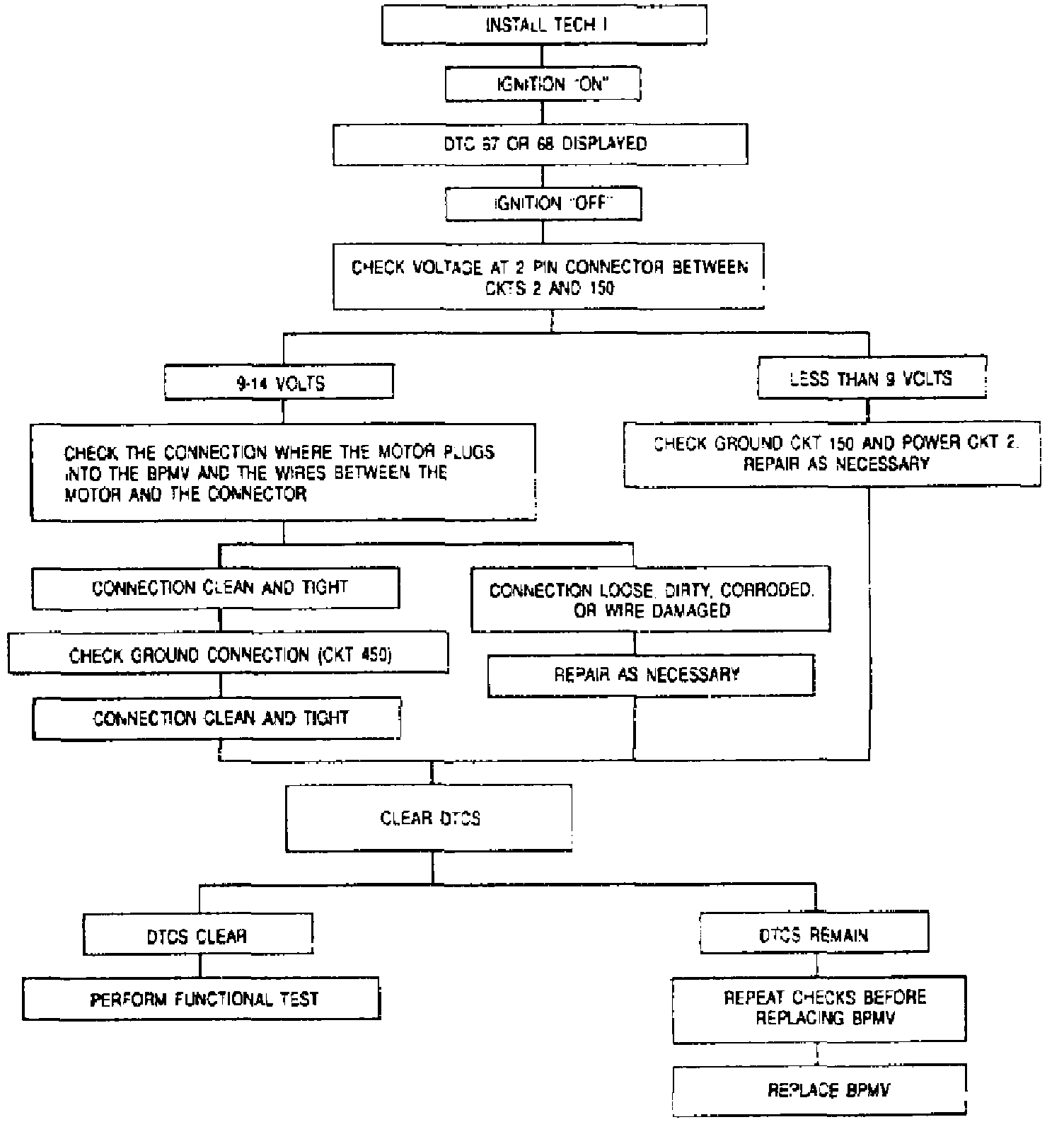

Fig. 81 DTC Codes 67 & 68 (Open Motor Circuit Or Shorted BPMV Output & Locked Motor Or Shorted Motor Circuit). 1993 C/K & G:
