Electronic Brake Control Module

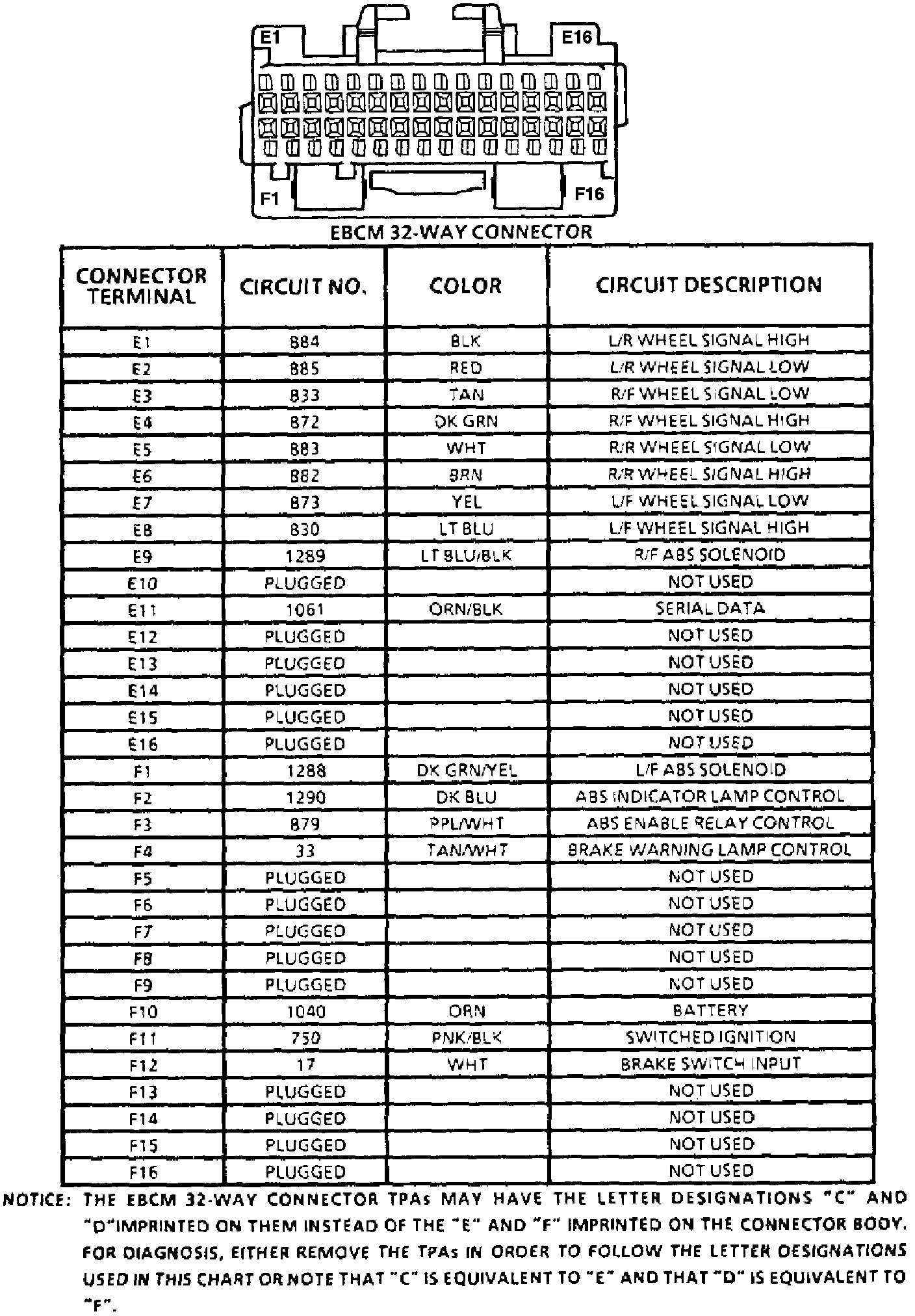

Fig. 7 EBCM Wiring Connectors (Part 1 Of 2):

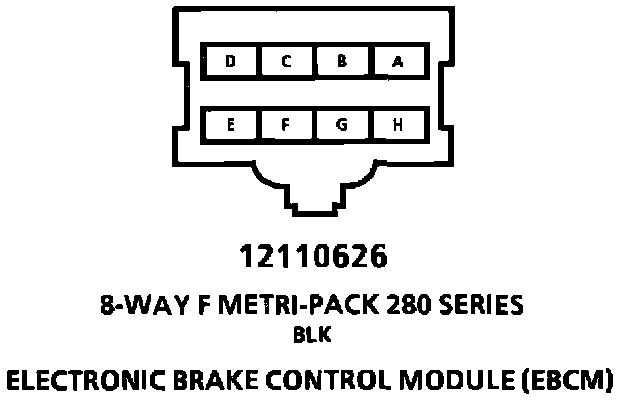

Electronic Brake Control Module (EBCM) Connector:



Fig. 7 EBCM Wiring Connectors (Part 2 Of 2) 1993:
