Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1993
>>
Lumina APV V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Backup Lamp
Backup Lamp

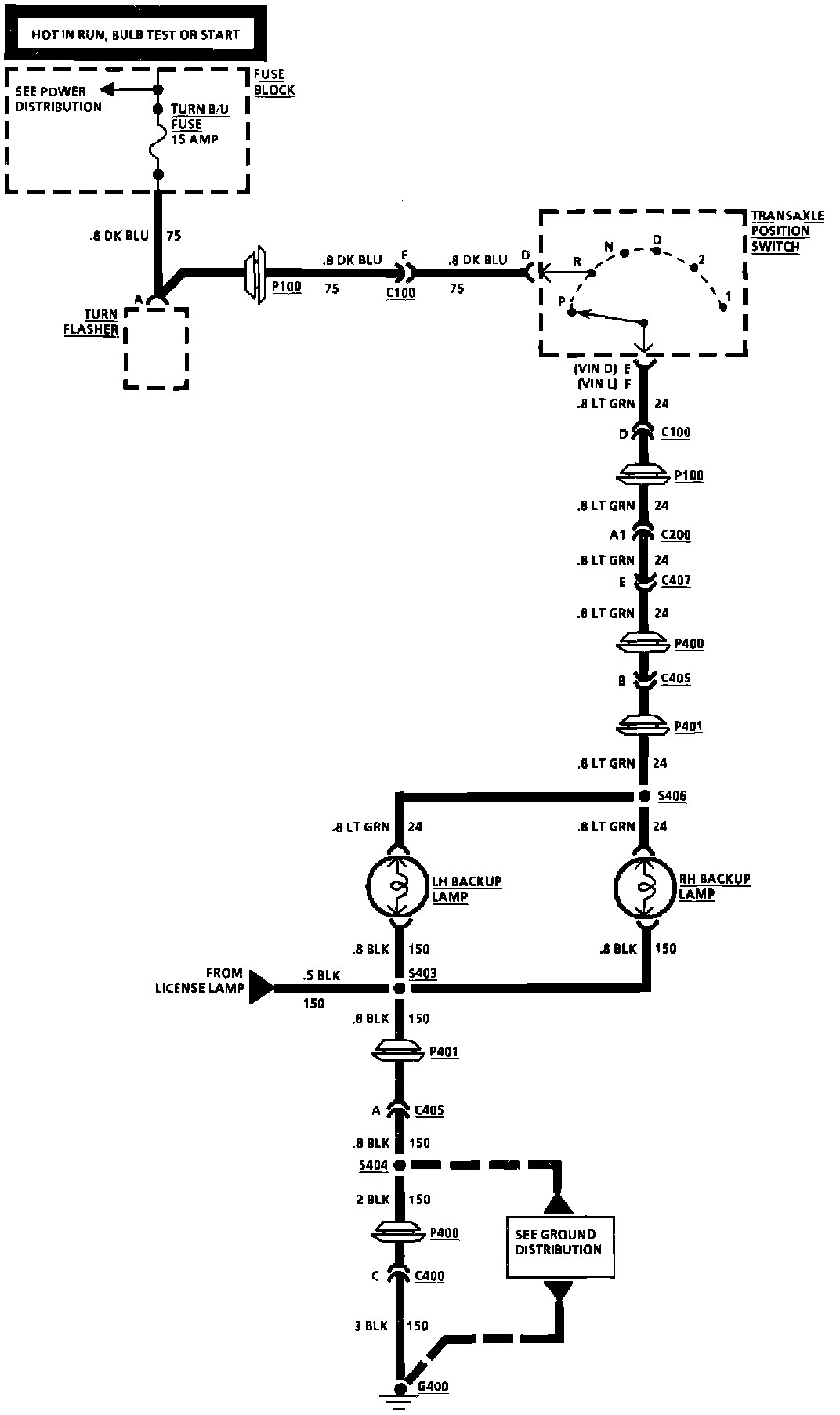

Backup Lamps Wiring Circuit:
