Chevy Truck
>>
1993
>>
Lumina APV V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signal Indicator

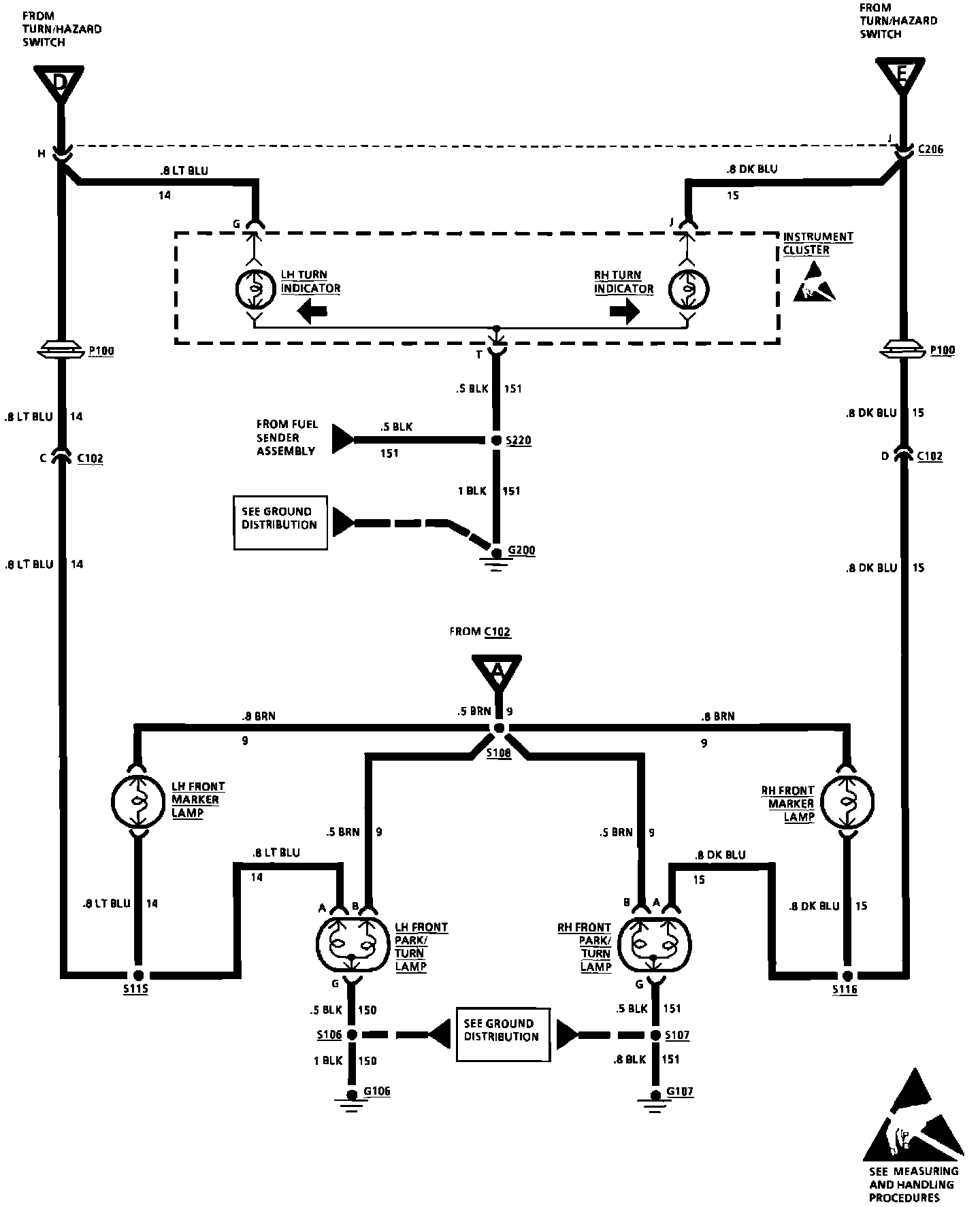

Turn Signal Indicator
Exterior Lamps: Turn/Hazard/Stop/Tail/Marker/License:
