Home >> Chevy Truck >> 1993 >> Lumina APV V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Sliding Door Lock Motor Control

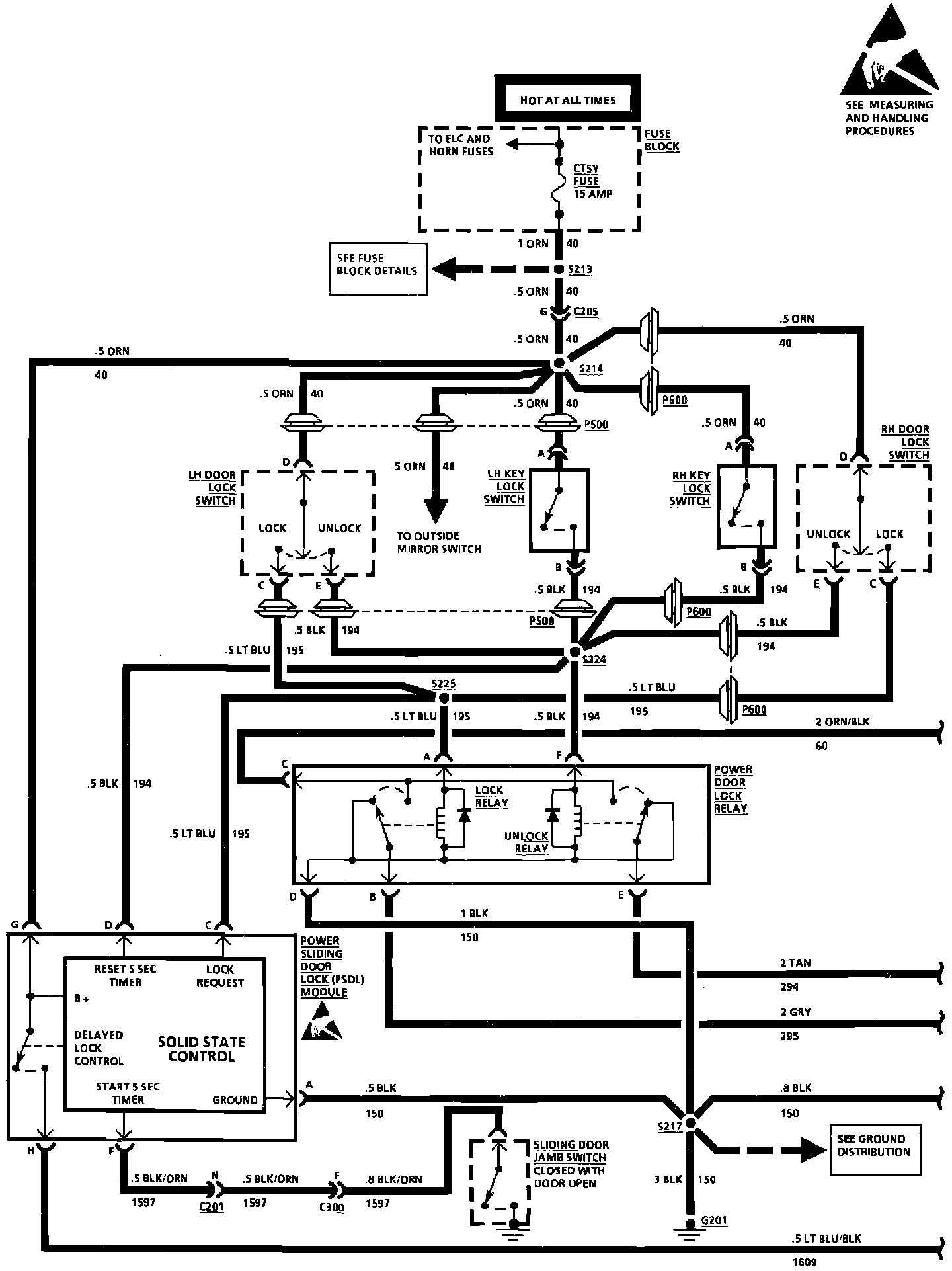

Sliding Door Lock Motor Control

Power Door Locks: Sliding Door Lock Motor Control:
