Chevy Truck
>>
1993
>>
Lumina APV V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Ign Fuse, R BLW Fuse and HTR-A/C Fuse
Ign Fuse, R BLW Fuse and HTR-A/C Fuse

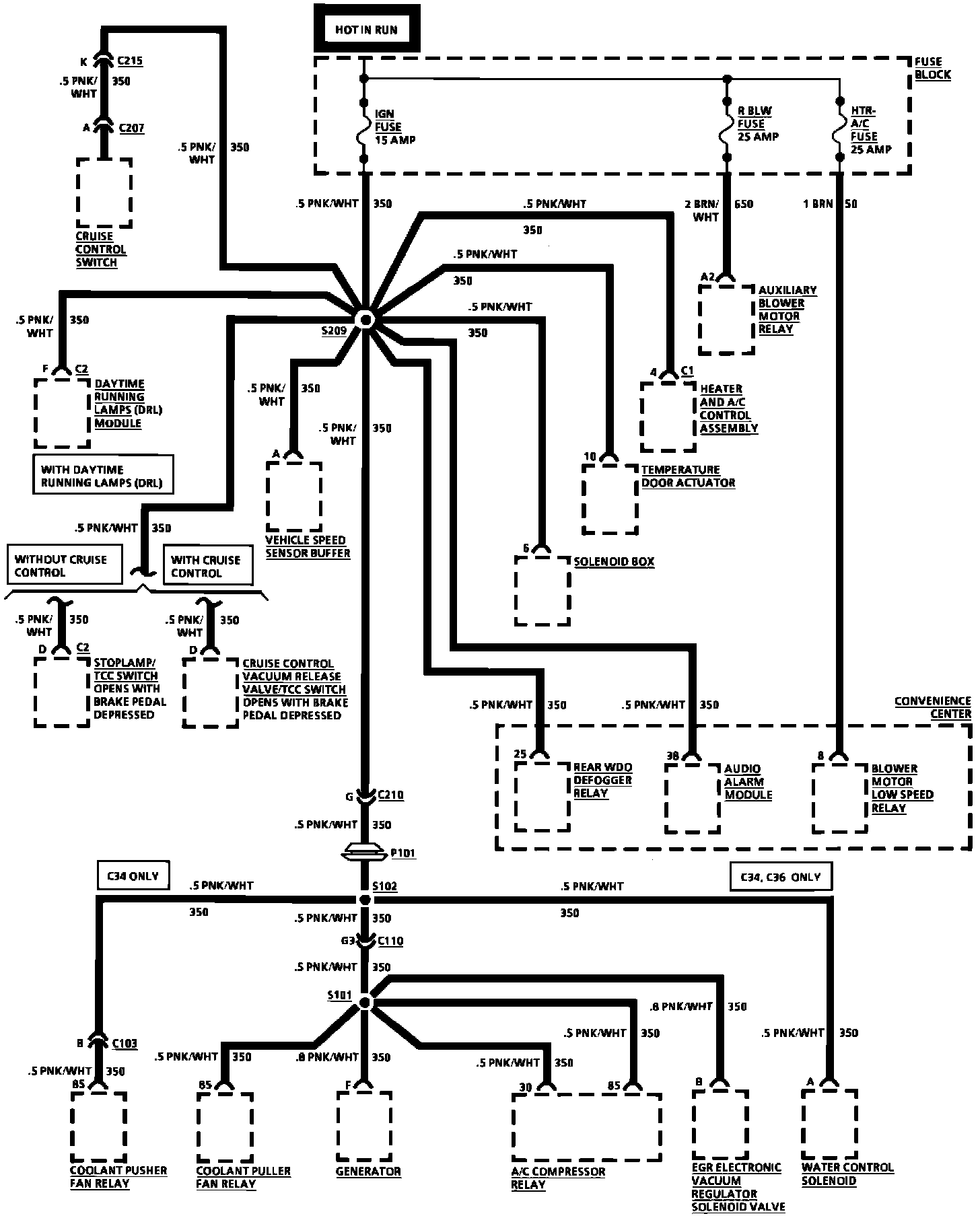

Fuse Block Details: IGN Fuse, R BLW Fuse, And Htr A/C Fuse:
