Chevy Truck
>>
1993
>>
Lumina APV V6-191 3.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>

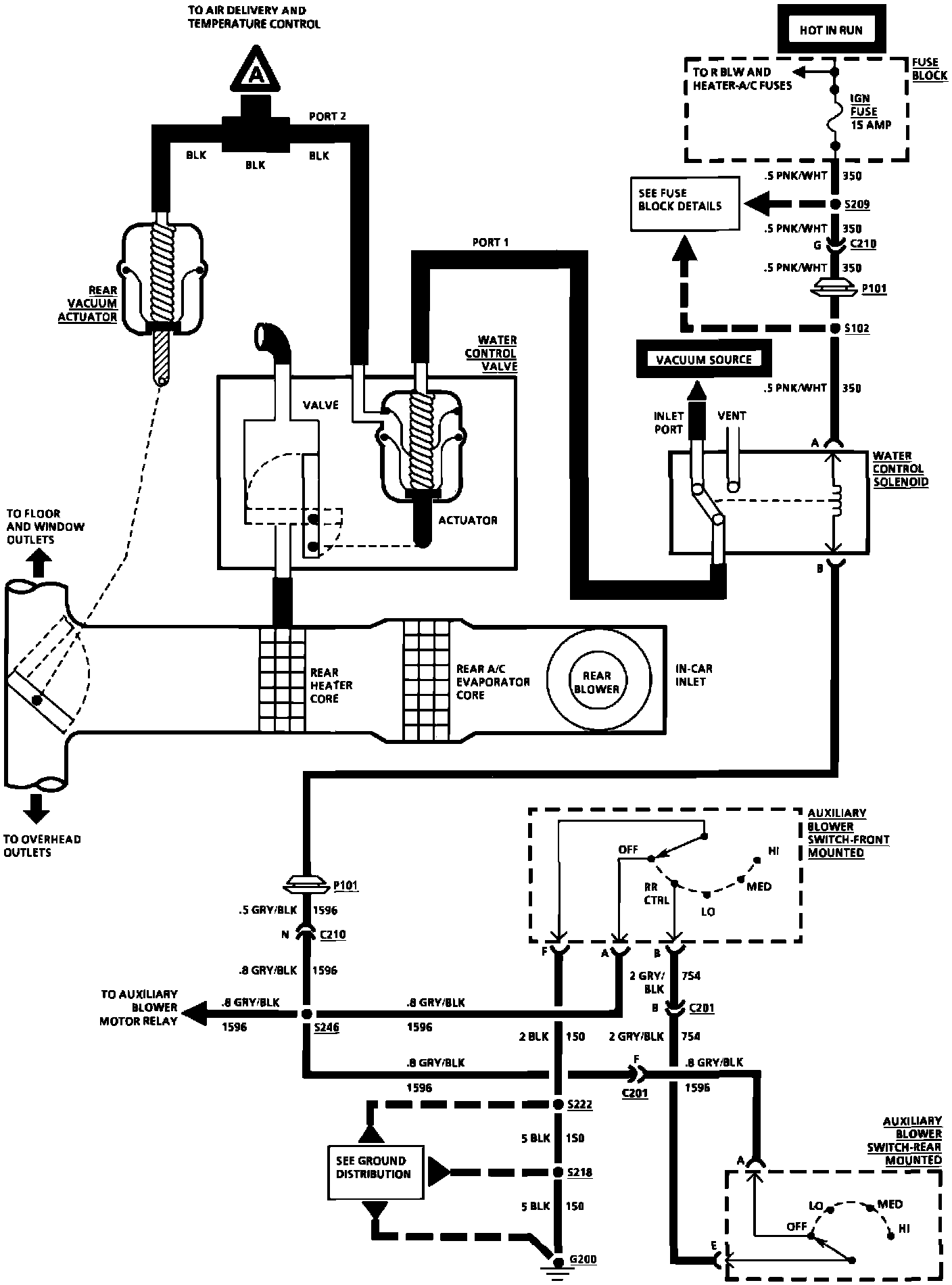

With A/C
With A/C

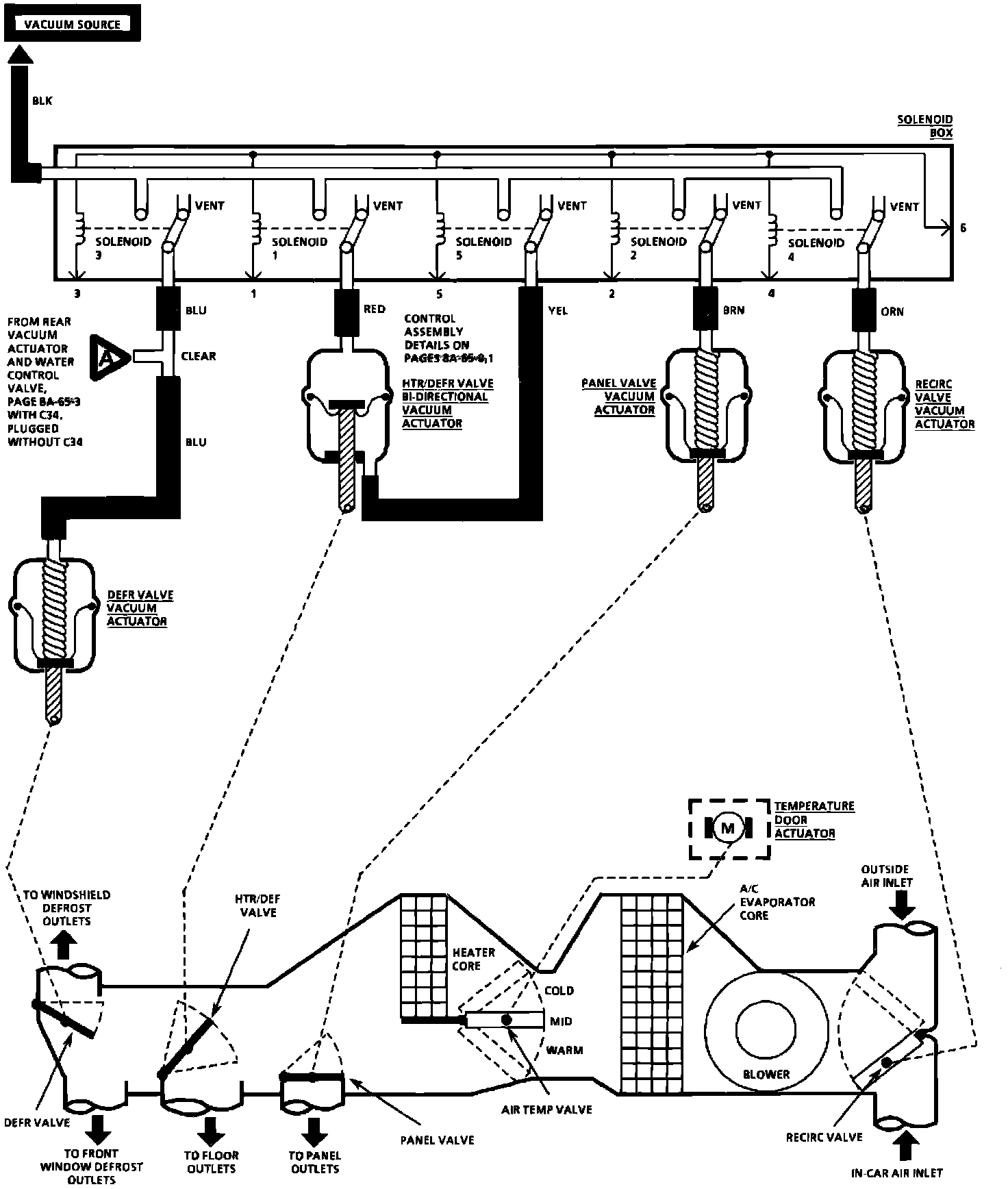

HVAC Air Delivery:
HVAC Air Delivery:
