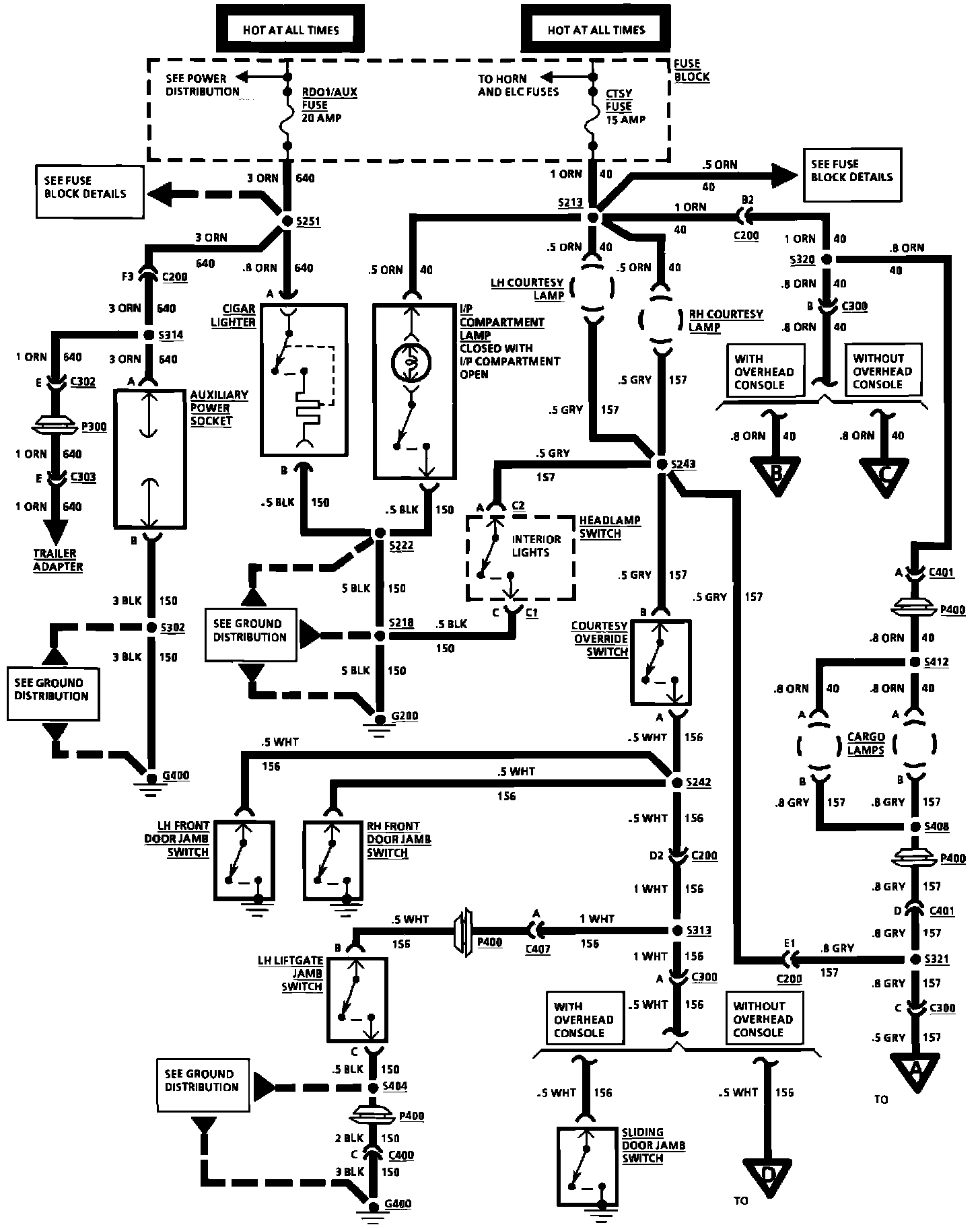

Aux PWR Socket, Cigar Lighter, I/P Compartment, Ctsy, Cargo

Interior Lights: Auxiliary Power Socket, Cigar Lighter, I/P Compartment, Courtesy, Cargo:
