TCC, "Service Engine Soon" Indicator, Trans. Position Switch

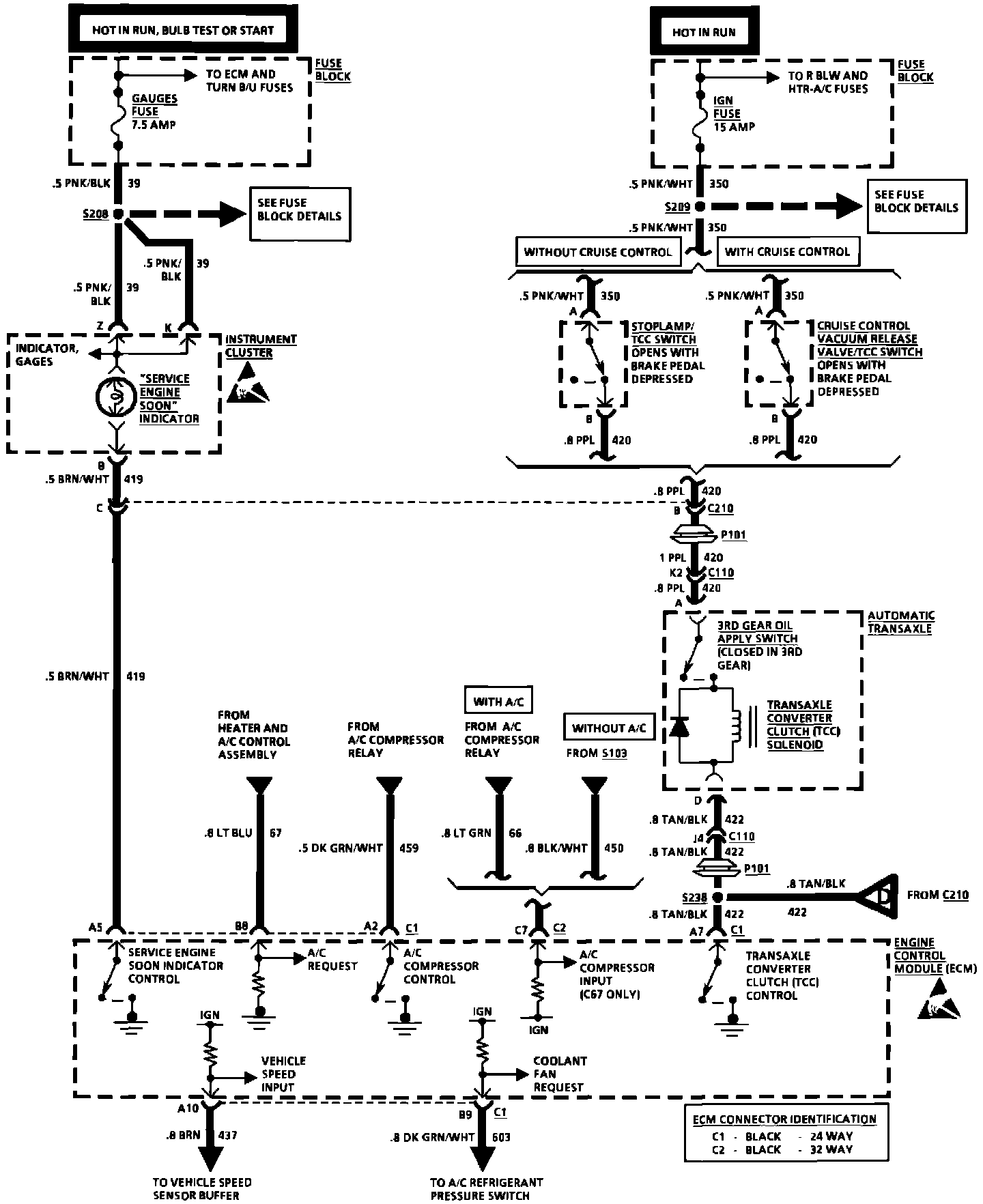

TBI: Transaxle Converter Clutch, "Service Engine Soon" Indicator And Transaxle Position Switch:



TBI: Transaxle Converter Clutch, "Service Engine Soon" Indicator And Transaxle Position Switch:
