Chevy Truck
>>
1993
>>
Lumina APV V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

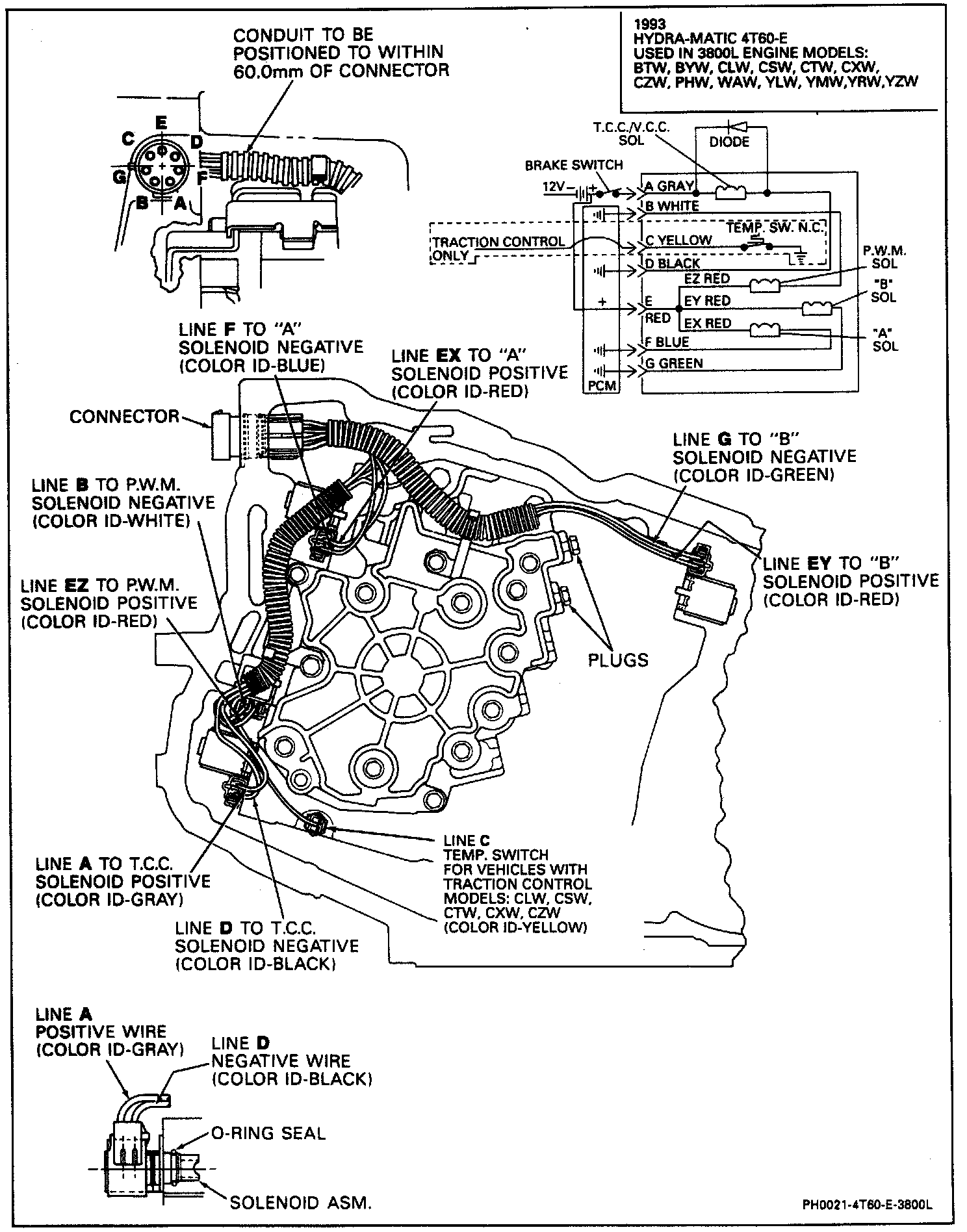

4T60E Transaxle Wiring Diagram:
