Lumina APV V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Transmission Case and Associated Parts
Transmission Case and Associated Parts
Case And Associated Parts.:

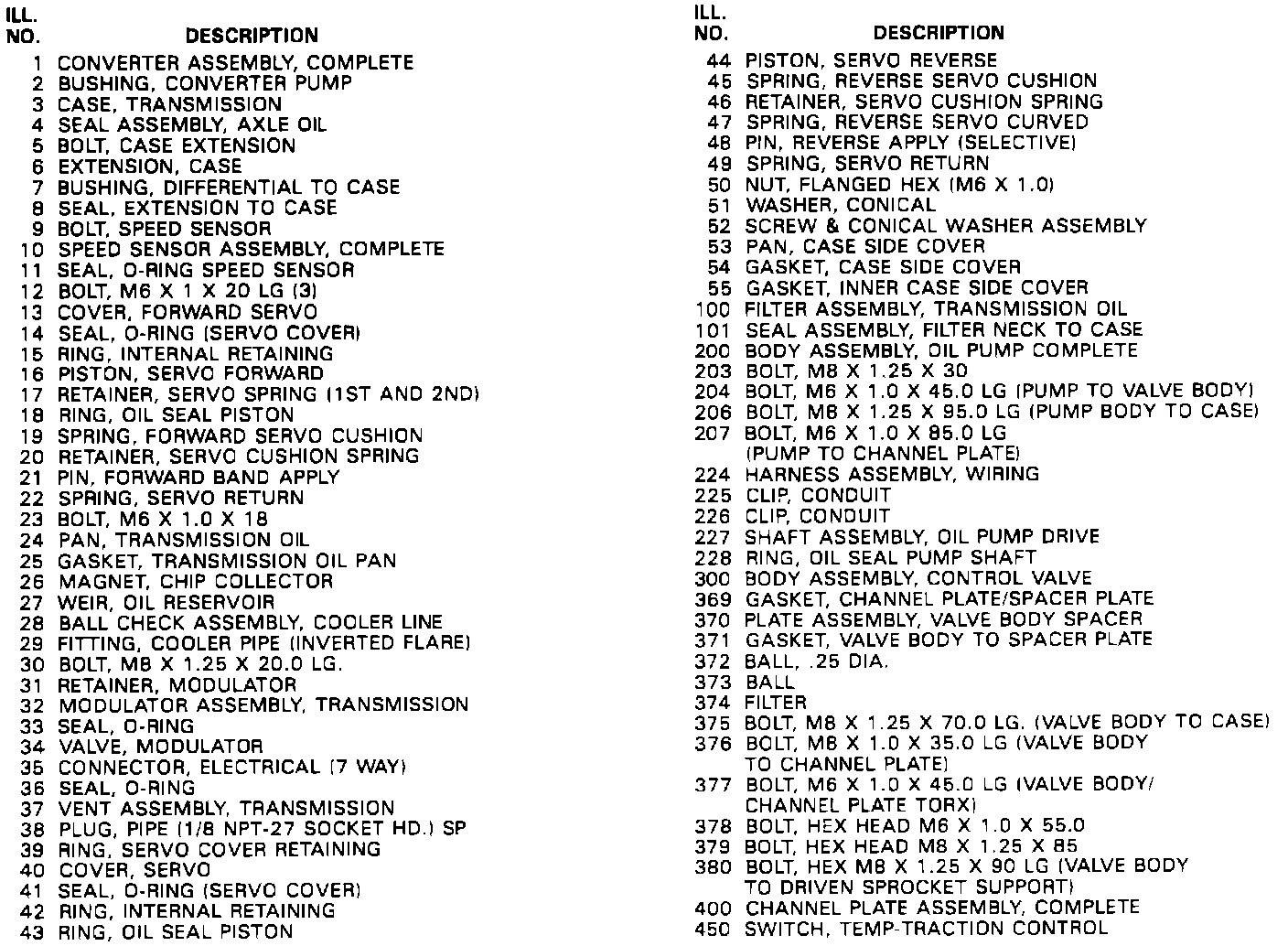

Case And Associated Parts - Legend.:
