DTC 68
DTC 68

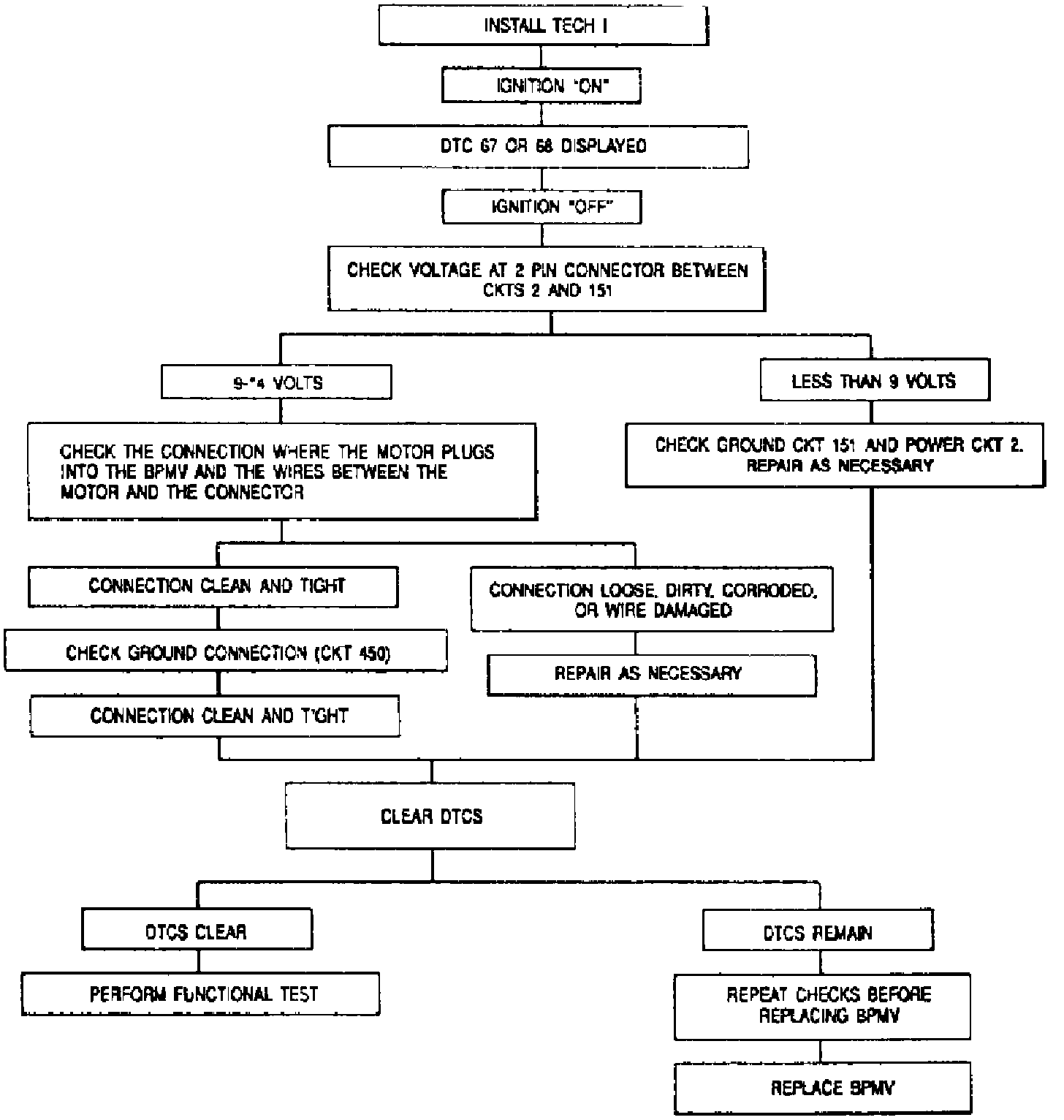

Fig. 83 DTC Codes 67 & 68 (Open Motor Circuit Or Shorted BPMV Output & Locked Motor Or Shorted Motor Circuit). 1993 Bravada & S/T:
