Home
>>
Chevy Truck
>>
1993
>>
S10/T10 P/U 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Part 1 of 3
Part 1 of 3

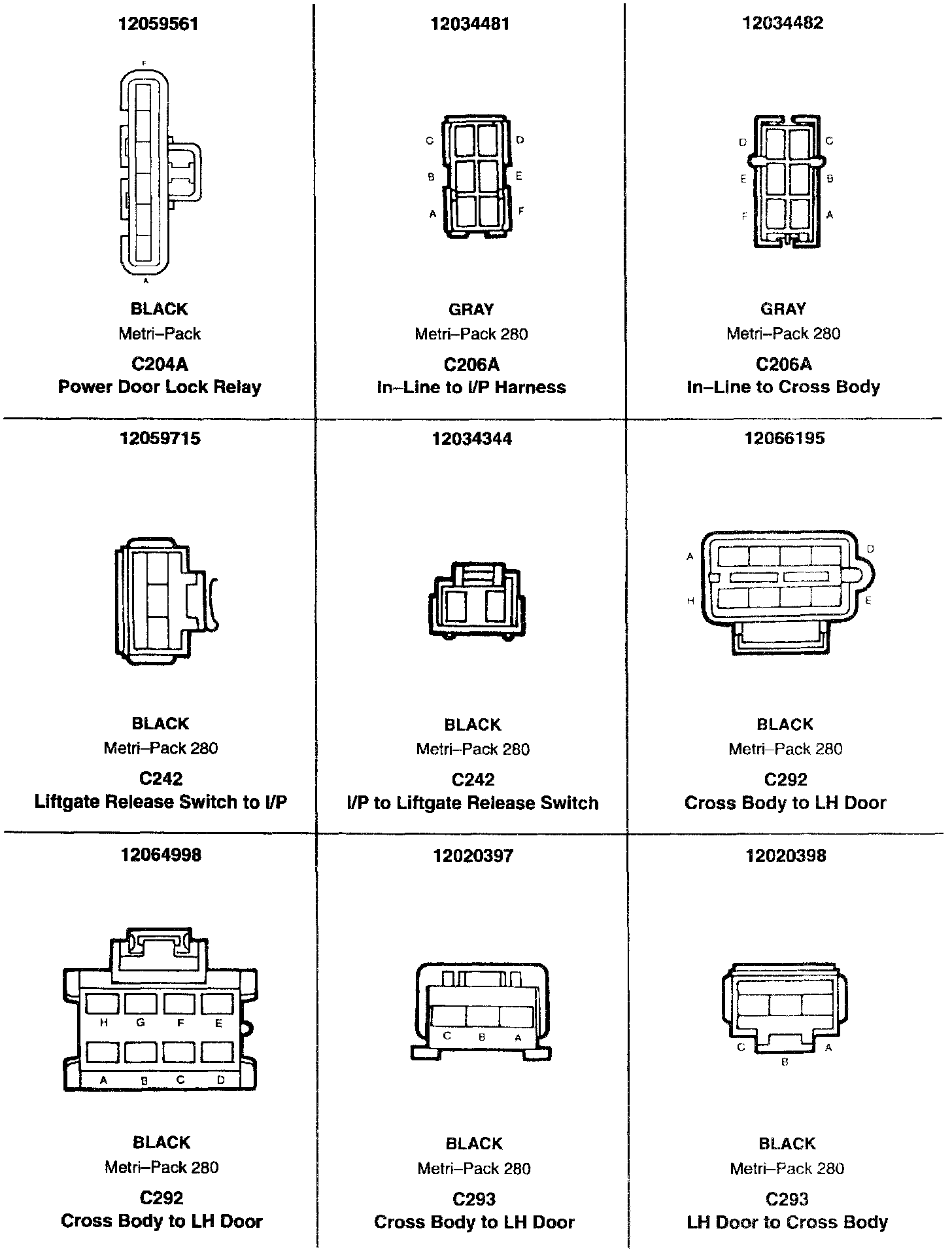

Connector Views:
