Compressor Clutch Relay: Service and Repair

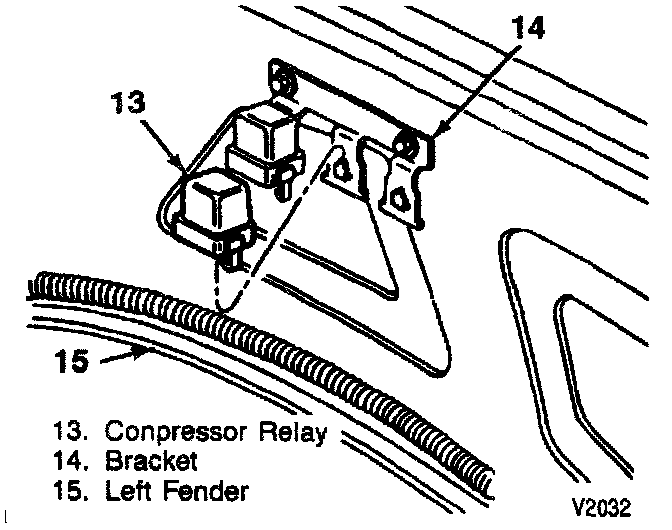

Compressor Relay:






REMOVE OR DISCONNECT


1. Electrical connector from relay (13).

2. Relay (13) from multi-use bracket (14).


INSTALL OR CONNECT


1. Relay (13) to multi-use bracket (14).

2. Electrical connector to relay (13).

- Check circuit operation.
