Chevy Truck
>>
1994
>>
C 2500 Suburban 2WD V8-454 7.4L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 23
DTC 23

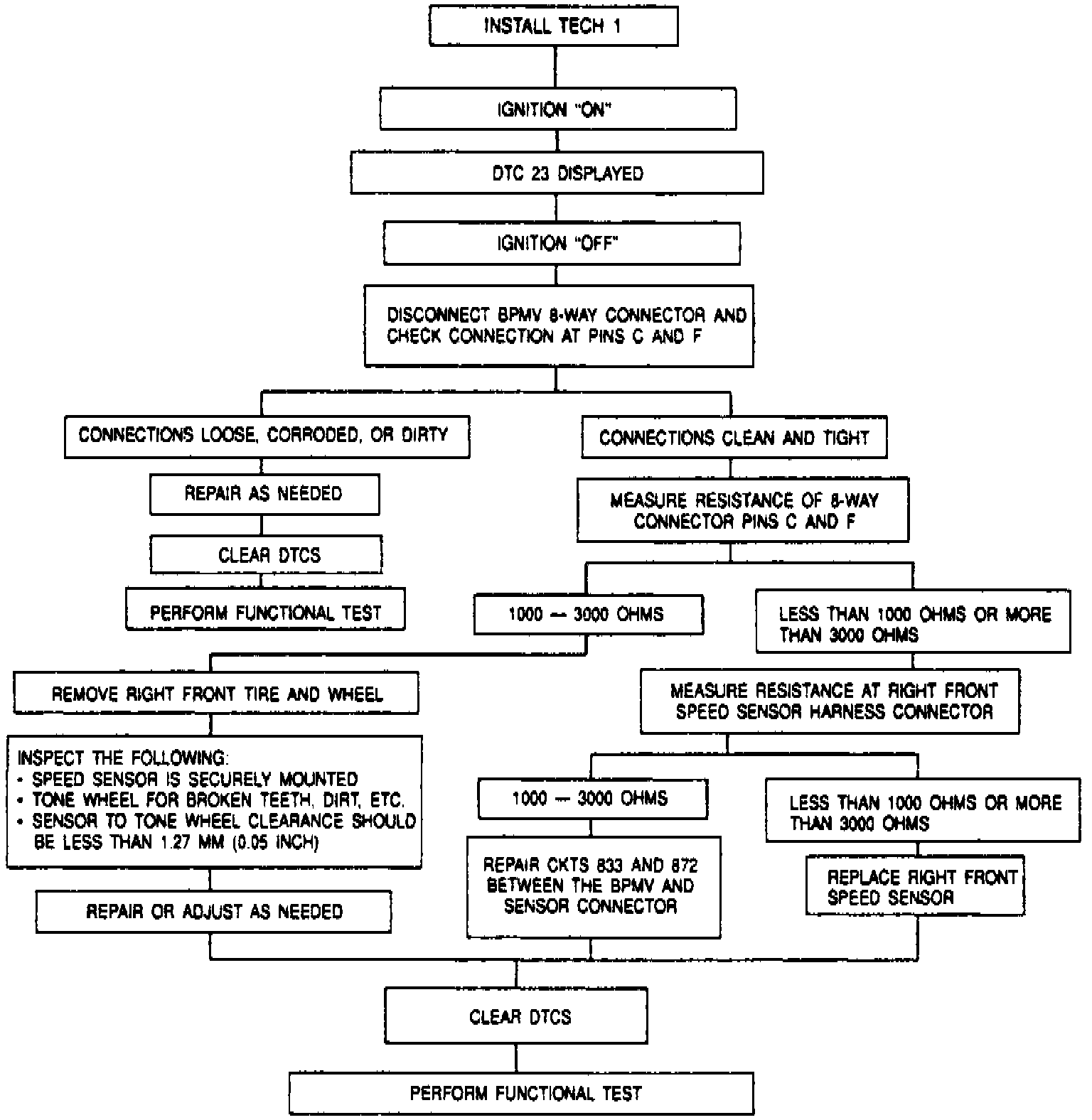

Fig. 66 Code 23: Erratic Right Front Speed Sensor:
